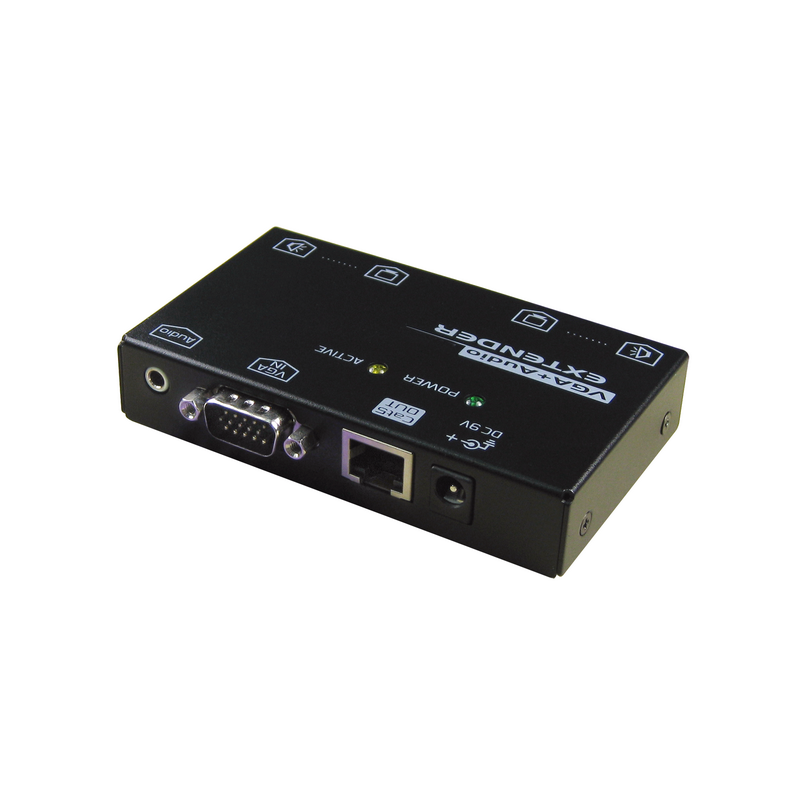

VGA + audio Extender set via cat 6A UTP cable.
A transmitter with VGA in and VGA out to local screen
1 x RJ45 connector to point to point cable to receiver
Receiver (remote- Unit) with 2 x VGA output
No software or drivers
Gain (Equalization) Control selector for optimal image
2 sets can provide a total distance of 250m
resolution: 1280 x 1024 with cat 6A cable of high quality.
Ideal for exhibitions, shops, courtroom, bus station, etc.
Support sound AUX
Do not connect to network switch
Video Extender (Standard) The Video Extender couple allows you to send VGA signals up to 150 m away with a resolution of up to 1280 x 1024. Common Mode noise suppression circuit Transmit video signals in excellent quality via CAT6A UTP cables. The local device duplicates the input signal for local use and sends the VGA signal to an external device. After receiving the video signal via a CAT5 connector, the remote unit sends the signal to two VGA outputs. Use 2 sets for repeater that can send the VGA signal up to 250 meters away!
Emuler skærmens EDID informationer
Multikabel fra lokalmodulet til pc med VGA og PS/2 stik
VGA Extender over TCP / IP or Point to Point.
Up to 200 meters over CAT 5e / 6 patch cable.
1920 x 1080 @ 60Hz
3.5mm Audio
USB for keyboard and mouse only!
Audio frequency: 32kHz, 44.1kHz, 48kHz
Sound format: DTS-HD / Dolby true HD / LPCM7.1 / DTS / DSD
Operating temperature: -5 ~ 70 ° C
Dimensions: 104 x 92 5 x 24 mm
KVM extender for VGA, USB K/M over Cat 5/5e/6 UTP
Up to 300 meters distance from a computer
1920 x 1440 @ 60Hz
2 users can share 1 computer, locally and remotely
Ideal for professional video applications
Only supports the standard USB HID keys
USB ONLY for keyboard and mouse (not touch)
No drivers needed or software required
Rotary knob adjustment of brightness and contrast (color)
Dimensions: 95 x 97 x 28mm
Supply voltage: 9~12VDC, PSU included
