Electric access control means that the door or gate must be equipped with an electric lock.
There are extremely numerous types and sizes, designed for all type of doors. Type Electric strike is the part of the lock mounted in the door frame. It has an electronically controlled mechanical flap that allows the latch on the door lock housing can pass freely during the time the electronics controlling this.
Where it is not possible to use electric strike may the door and the frame is provided with an electric holding magnet, in turn controlled by the access electronics. When the door is locked must be running a current in the holding magnet coil. When the coil is strømlås, release hold the magnet holding force to the door. This type holding magnets are available in various sizes and holding power. Typically, the holding force 300 kg.
The locking bolt lock type is the most secure, and that can be mounted more on the same door. The lock bolt is provided with a magnetic sensor which only allows the pawl to lock with the door in the exact position. Motor Lock is also an option, but not so widespread. Dørautomatikker combined with electric strike is a good solution, especially taking into account the person in a wheelchair. In addition to our solid solutions are also smart lock. Among other things. we dørrelæer with facial recognition, RFID and fingerprint as after five failed attempts at penetration will lock in 3 minutes and send notification to your smartphone. Super efficient keyless door lock.
Should you not find the lock you need, please contact us for advice and guidance.
Electronic door magnet for sliding door etc.
Holding power up to 136 kg
Aluminum housing and vandal-proof
Supply voltage for team: 12VDC
No holding power when de-energized
Operating temperature: -10 - 55°C
Humidity: 0-95% non-condensing
Magnet: 200 x 32 x 24 mm
Door plate: 152 x 32 x 10 mm
Weight: approx. 1.5 kg
Bond sensor NO/COM
Additional access system - see Accessories
AA1.5Vx4pcs (not included)
Emergency power via USB
Temporary password
Touch key pad
Public mode or private mode
Fits: wooden and steel cabinets

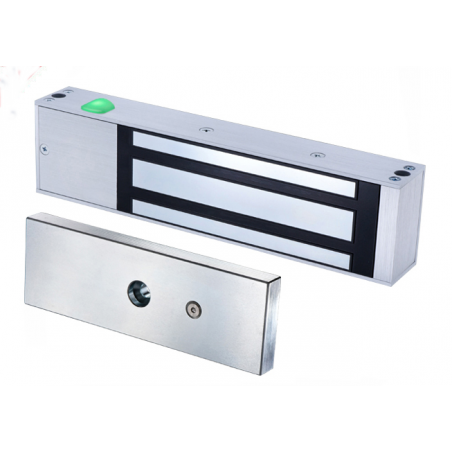

Door magnet with holding force up to 545 kg
Aluminum House and vandal safe
Supply voltage for holding: 12VDC or 24VDC, 6 Watt
automatic switching between 12 and 24VDC
No holding power at voltageless
Operating temperature: - 10 to + 55 ° C
Magnet: 254 x 67 x 40 mm
Door plate: 185 x 61 x 16 mm
Mounting plate for frame: 254 x 40 x 6 mm
Anti magnetic function
Weight: 4.9 kg

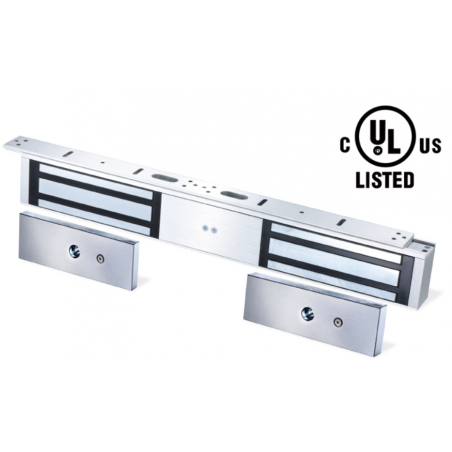

Electronic door magnet for double-doors, whop door etc.
Holding power up to 545 kg for each door
Aluminum House and Vandalsproof
Supply voltage for team: 12VDC or 24VDC, minimum 2 x 6 watts
Automatic switching between 12 and 24VDC
No holding power at voltageless
Operating temperature: -10 - 55 ° C
humidity: 0-95% non-condensing
double magnet: 533 x 71 x 40 mm
Door plates: 185 x 61 x 16 mm
Double mounting plate: 533 x 40 x 8 mm
Weight: approx. 5.6 kg
Buy access system - see accessories

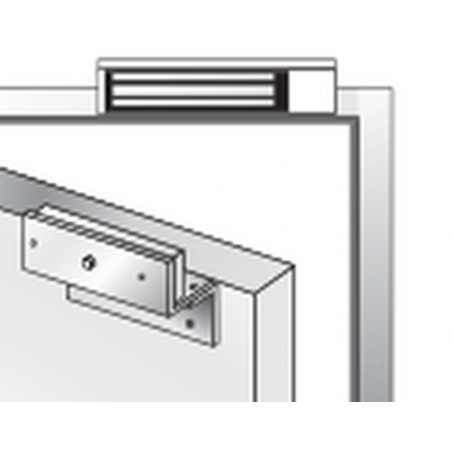

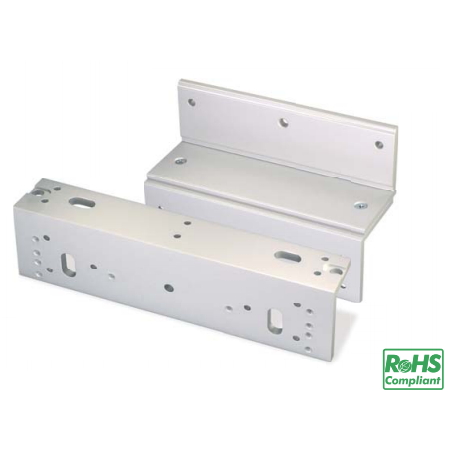

Accessories for DOOR-MAGNET+
z-angle fittings for inward door (Inswing)
The kit consists of 3 parts
heavy aluminum profiles
target: See drawing
Holding power Up to 500 kg
Dim: 282 x 74.8 x 38.8 mm
Face plate: 185 x 60 x 13.2 mm
Voltage: 12VDC / 24VDC
Power consumption: 12V / 420MA / 24V / 210mA
Signal output NO / NC / COM Lock Status Relay output
LED Red Indicates that the door is unlocked, green indicates that the door is locked
Buzzer - Summer 5/10/20/30 SEK
Suitable For wooden door, glass door, metal door, fireproof door
Surface temp: + 20 ℃
Operating temperature -20 - + 55 ℃
Humidity 0 ~ 95% (non-condensing) Surfaces: House anodized aluminum
Surfaces Magnet: Zinc
Surface plate: zinc
Weight 4.5 kg

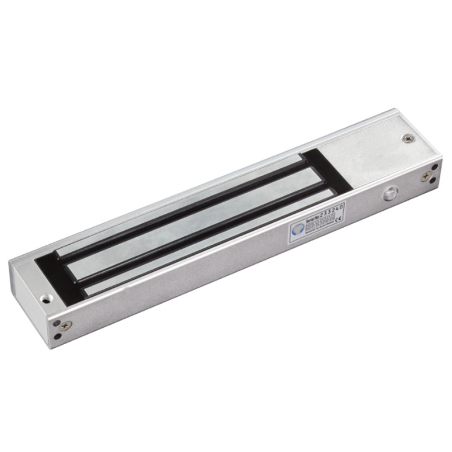

Lock force Up to 350 kg
Dim: 260 x 58 x 30 mm
Face plate: 190 x 45 x 13 mm
Voltage: 12VDC / 24VDC
Power consumption: 12V / 500mA / 24V / 250MA
Signal Output NO / NC / COM Lock Status Relay Output
Timer (Delay): 3 / 6 / 9 seconds
Good for wooden door, glass door, metal door, fireproof door
Surface temp: +20℃
Operating temperature -20 - +55℃
humidity 0 ~ 95% (non-condensing)
Surfaces: House Anodized Aluminum
Surfaces Magnet: Zinc
Surfaces Face Plate: Zinc
Weight: 2.7 kg
Cabinet lock - 150kg. Locked with voltage
Voltage: 12VDC / 180MA
Holding force: 150kg
Size: 50 x 31 x 27 mm
Weight: 0.18kg

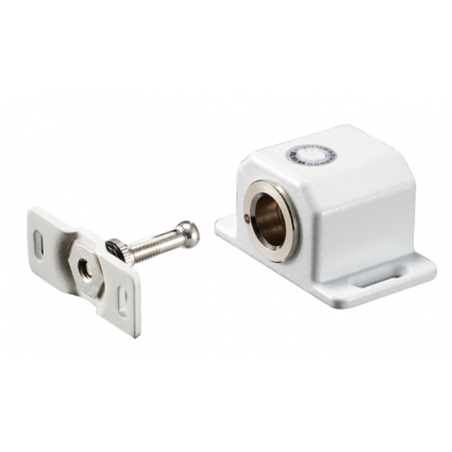

Cabinet lock - 150kg. Locked without voltage
trigger voltage: 12VDC / 180MA
Holding force: 150kg
Size: 50 x 31 x 27 mm
Weight: 0.18kg

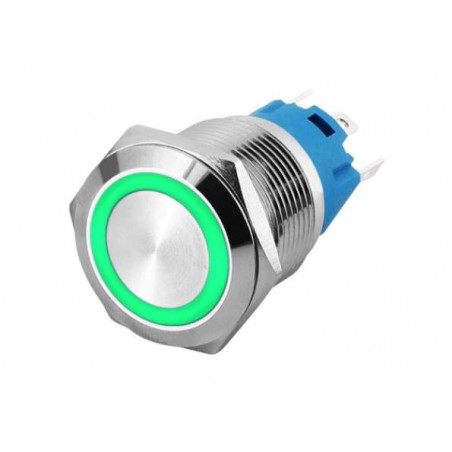

For 19mm mounting hole
12VDC
IP65
NO/COM/NC

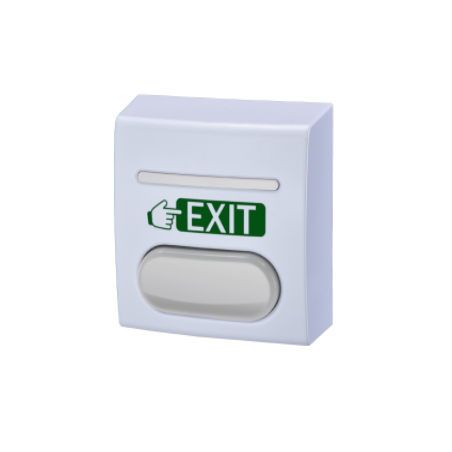

Momentary reset
Metal
Output contact for access control with cunduct / breaking function
robust plastic house with steel Back plate
Contact: NO / NC / COM
Momentary Contact press
Contact: Max 3A
Size: 86 x 86 x 42 mm
Passive Exit Button

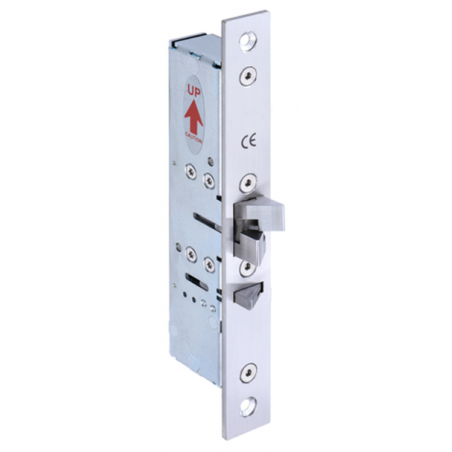

Electric lock box for single / double acting swing doors
Smal frames - 25 mm Front plate
Brushed stainless steel
272 kg Pressure strength
Latch Status Output: 1A / 125VAC
Supply voltage: 12VDC 280MA / 24VDC 180MA
Operating voltage: 12 - 24VAC / DC
Operating cycle: 250,000 (factory tested)
Size: 24 x 160 mm House, 25 x 210 mm Front plate
Pole plate: 28 x 210 x 2 mm

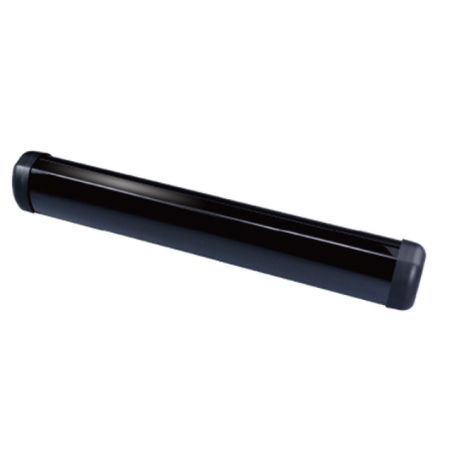

IR safety sensor for automatic doors prevent property damage and personal injury
Mounted above the frame or on the door
Relay output connected dørautomatikstyringen
Length: 360 mm | IR beam adjustment: 5-25 °
6 measuring points
detector distance: 0 to 2.5 meters
Max. installation height: 2.6 meters
Relay Output is continuously active when the thing or person is detected
Dimensions: 360 x 45 x 45 mm
Weight: 350g
Supply voltage: 12 - 24VDC or 12 - 24VAC
IP54
EU standard: EN16005
Door machine with switch-box for swing-door
Supplied switch box for function selection
With connection for access control
With connection for NON-TOUCH access switches
Connection for emergency battery
Approved according to EN 61000 standards for safety
Supply voltage: 100 - 240VAC
Built-in motor: 60VDC, 2Amp
Power consumption: approx. 77 Watt
Connection for 24VDC backup battery
Dimensions: 125 x 79 x 34 mm
Door opening angle 80 - 120 °
Door width: 750 - 1200 mm
Door height: 2800 mm
Door weight: 50 - 150 kg
230VAC

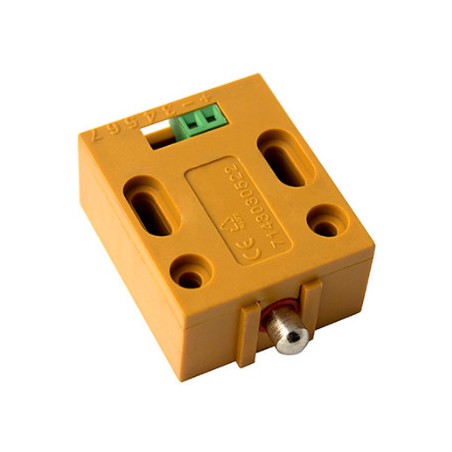

Compact motor-controlled lock with separate pawl
Control voltage - 12VDC
With door-closed status
Holding force: 50 kg
Operating temp. -10 ° C - + 55 ° C
Dimensions: 41 x 35 x 19mm
Pal: ø9mm, 18mm
Weight: 0.11kg
Can be used on wood, aluminum and metal

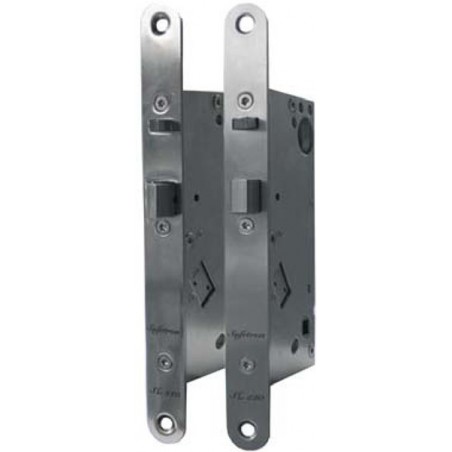

Electric door lock that is locked without tension.
Holding force 1000 KG
supply: 12 / 24V DC 130 / 65mA when activated
Suitable for Scandinavian types
Operating temperature: -20 ° C to + 40 ° C
Multi voltage 12-24V AC / DC
approved for use in fire-resistant doors E120 / A120 / EI120
Fail secure (PTO): SL 510
Fail safe (PTL): SL 511
Latch bolt adjustable left / right
Built in "By status" sensor
Status monitoring: latch, anti-thrust bolt & amp; live handle
Mechanical key override

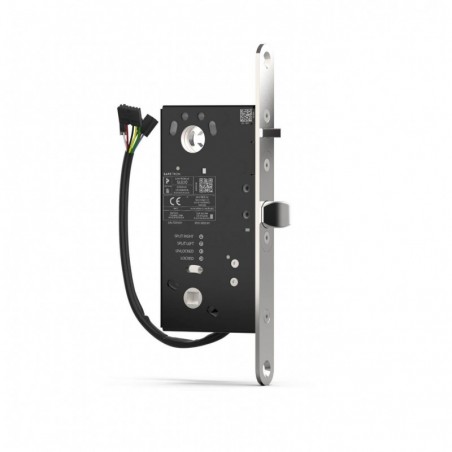

Electric door lock that is open without voltage.
Holding force 1000 KG
supply: 12 / 24V DC 130 / 65mA when activated
Suitable for Scandinavian types
Operating temperature: -20 ° C to + 40 ° C
Multi voltage 12-24V AC / DC
approved for use in fire-resistant doors E120 / A120 / EI120
Fail secure (PTO): SL 620
Fail safe (PTL): SL 621
Latch bolt adjustable left / right
Built in "By status" sensor
Status monitoring: latch, anti-thrust bolt live handle
Mechanical key override
Door switch for access control - EXIT button.
End contact by pressure
Contact: NO/NC/COM
Max. 36VDC 3Amp
Cast aluminum body, steel button
12VDC LED supply
Operating temperature: -20 - +50°C
Dimensions: 80 x 30 x 24 mm
angle bracket kit, 3 parts
bracket for inward door
