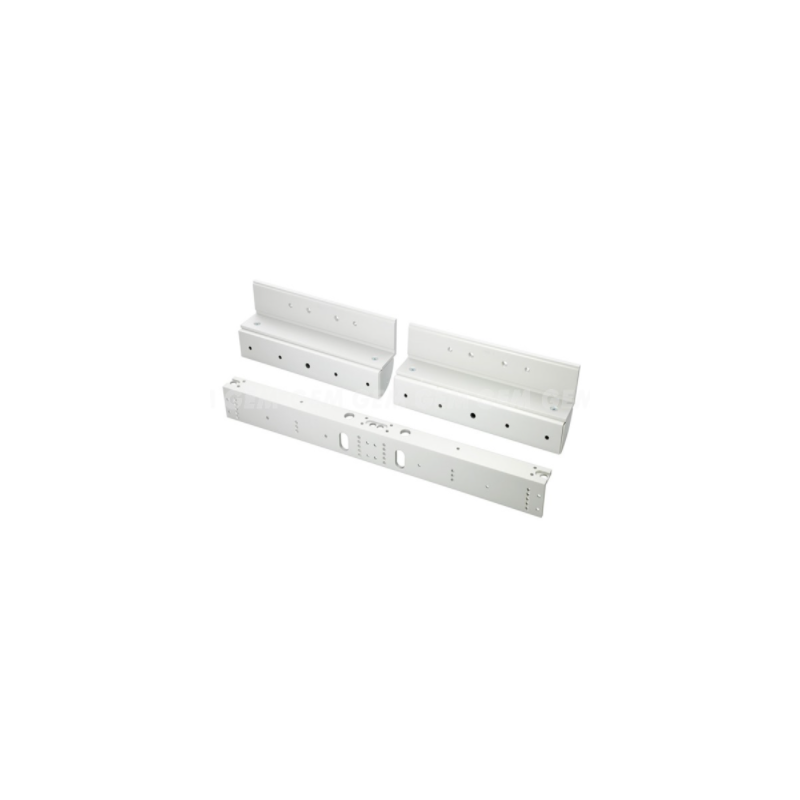

Z angle bracket for DOOR-MAGNET-DUAL6. For inward-facing door. Extruded aluminium

Accessories DOOR-MAGNET-MI
bracket for mounting on the side of the frame
Strong aluminum profile
Dim: 170 x 37 x 30 mm

Tilbehøt to DOOR-MAGNET-MINI
bracket for mounting the door magnet on the side of the frame
Strong Aluminum

Rev: LO

Accessories DOOR-MAGNET-LOCK
bracket for mounting to the inward door (inswing)
Set consists of three parts
Strong aluminum profiles.
Good adjustability

Accessories for Door-Magnet-V12
Mounting the Hold Magnet on side of Karm
mounting door plate If this is necessary
for outward door (outswing)
Heavy Aluminum profile
Dim: L 220 x D 70 x B 45 mm

Z Fittings for DOOR-MAGNET-V8
for inward door
consists of 3 parts
Extruded aluminum

IR safety sensor for automatic doors prevent property damage and personal injury
Mounted above the frame or on the door
Relay output connected dørautomatikstyringen
Length: 360 mm | IR beam adjustment: 5-25 °
6 measuring points
detector distance: 0 to 2.5 meters
Max. installation height: 2.6 meters
Relay Output is continuously active when the thing or person is detected
Dimensions: 360 x 45 x 45 mm
Weight: 350g
Supply voltage: 12 - 24VDC or 12 - 24VAC
IP54
EU standard: EN16005

Accessories for door-magnet-mi
z-angle brackets for inward door (Inswing)
The kit consists of 3 parts
heavy aluminum profiles
target: See drawing

Accessories for DOOR-MAGNET-LOCK6
The kit consists of 3 parts
heavy aluminum profiles
target: See drawing
