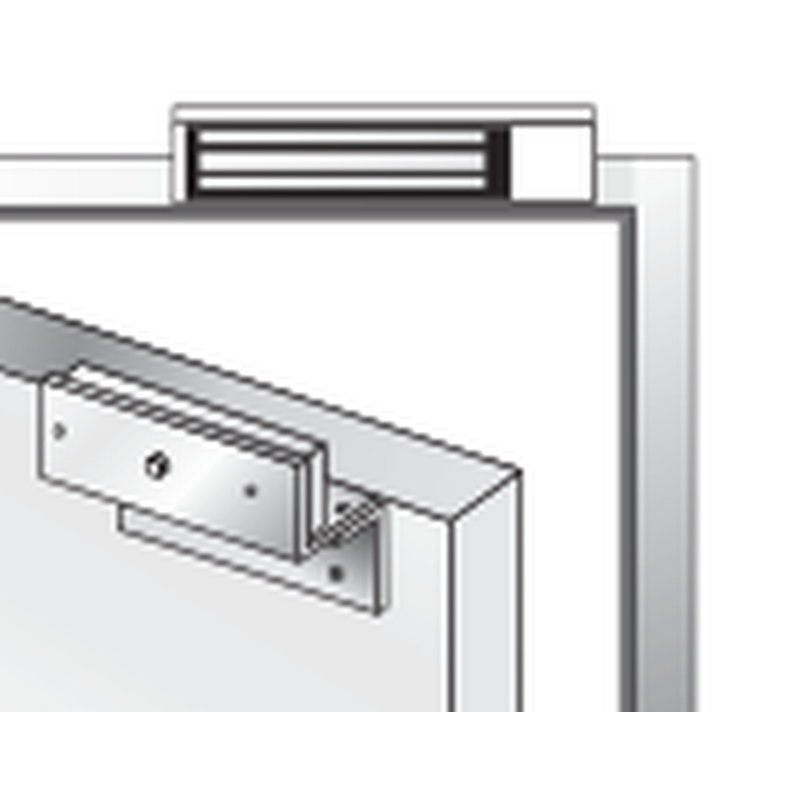

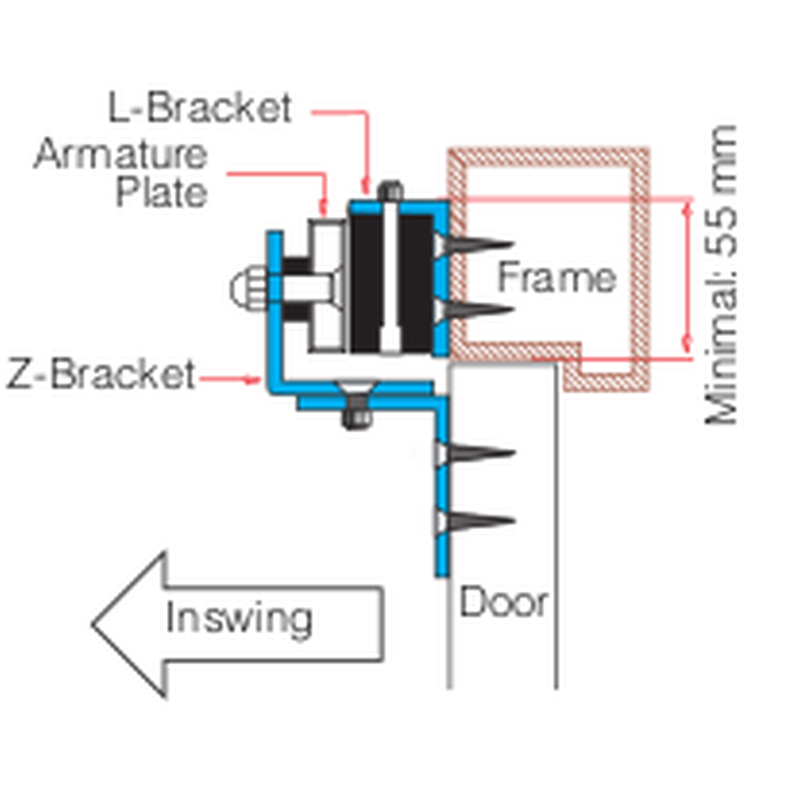

Hardware for door magnet. Mounting brackets for DOOR-MAGNET-LOCK for inward door

Miniature electronic holding magnet for cabinets
Supply voltage 12 VDC, minimum 140mA
Holding force: Up to 36 kg
with Bond sensor - Relay output COM, NC
Bond sensor is a closed indicator - Can inform the controller
Operating temperature: -10 ~ 55ºC
IP65 Stainless steel with epoxy filling
Magnet dimensions: 70 x 38 x 26 mm
Holding plate dimensions: 80 x 32 x 18.5 mm
Weight 350 g

angle bracket for mounting on frame
for outward door

Electronic door magnet with team power up to 272kg
Gen-Close timer Adjustable from 1 - 80 sec.
Door Closed Sensor - Relay output
Aluminum with epoxy at coil
12VDC or 24VDC, 6Watt
Switching between 12 and 24VDC
No holding power at Voltageless
Magnet: 250 x 42 x 26 mm
Door plate: 185 x 38 x 12 mm
Mounting plate: 250 x 25 x 5 mm
Anti magnetic function
Operating temperature: -10 - + 55ºC

Electronic door magnet for double-doors, folding door etc.
Holding force up to 544 kg for each door
Aluminum housing and vandal proof
Supply voltage for team: 12VDC or 24VDC, minimum 2 x 6Watt
Automatic change-over between 12 and 24 VDC
No holding force when not energized
Operating temperature: -10 - 55 ° C
Humidity: 0-95% non-condensing
Double magnet: 534 x 68 x 40 mm
Door plates: 185 x 61 x 16 mm | Double-mounting plate: 534 x 40 x 8 mm | weight: ca. 6.5 kg
