Electronic lock, non-power locked 12VDC
Electric endplate 70mm
Error-proof - not suitable for back pressure
Quick and easy installation
Static holding force & nbsp; 454 kg
12VDC
Dimensions: 70 x 43 x 25mm
Electronic lock
DC 12V up, 0.8A
Metal
Cable length 36cm
Weight: 155g

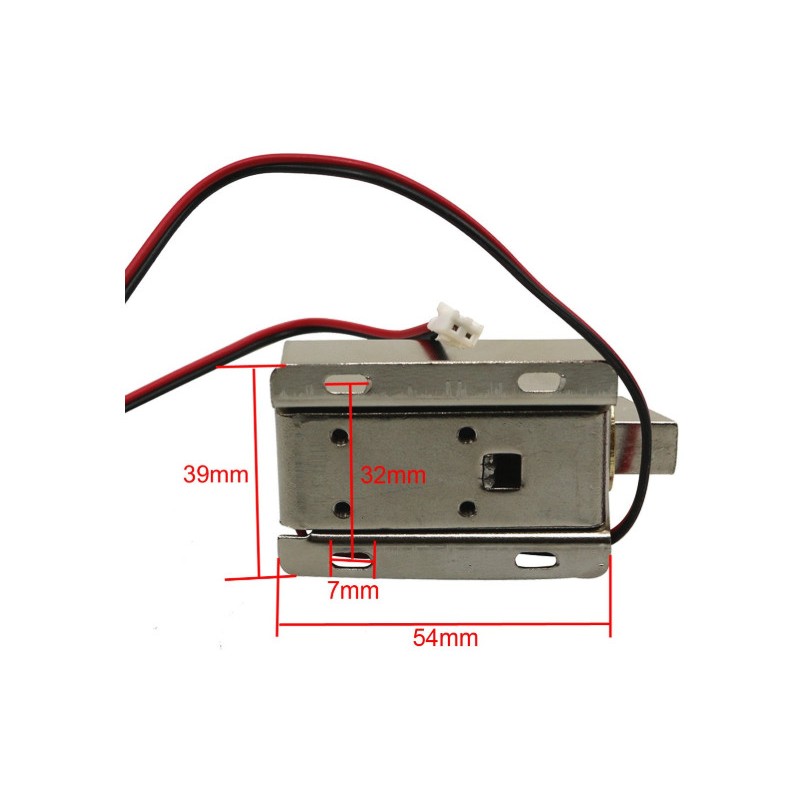

DC 12V 0.8A 10mm Stroke Electronic Cabinet Lock. Easy to install for the electric door lock.
Applied to the cabinet locks,window locks,safe box locks, locker locks,file cabinet locks ,luggage locks,desk locks,newspaper boxes,solenoid locks,drawer lock etc
Electric endplate 70mm
Error-proof - not suitable for back pressure
Quick and easy installation
Static holding force & nbsp; 454 kg
12VDC
Dimensions: 70 x 43 x 25mm
Electric lock box for single / double acting swing doors
Smal frames - 25 mm Front plate
Brushed stainless steel
272 kg Pressure strength
Latch Status Output: 1A / 125VAC
Supply voltage: 12VDC 280MA / 24VDC 180MA
Operating voltage: 12 - 24VAC / DC
Operating cycle: 250,000 (factory tested)
Size: 24 x 160 mm House, 25 x 210 mm Front plate
Pole plate: 28 x 210 x 2 mm

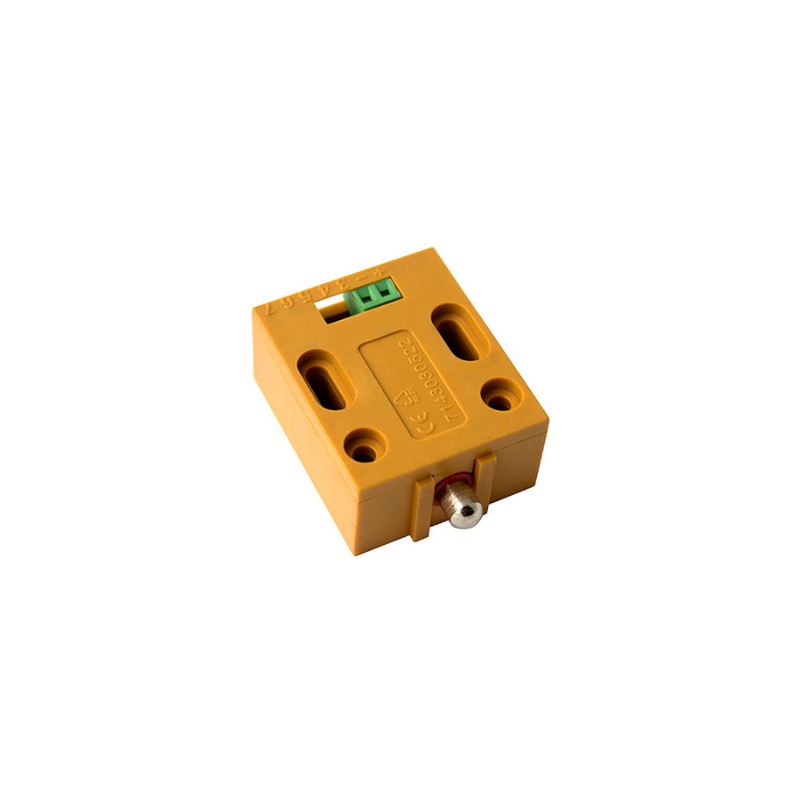

Compact motor-controlled lock with separate pawl
Control voltage - 12VDC
With door-closed status
Holding force: 50 kg
Operating temp. -10 ° C - + 55 ° C
Dimensions: 41 x 35 x 19mm
Pal: ø9mm, 18mm
Weight: 0.11kg
Can be used on wood, aluminum and metal
Electric strike for door frame, with lock monitor, 38 mm
with lock open without excitement
with lock closed without excitement
Force: 450kg
Voltage: 12VDC 300mA polarity independent
Lock Monitor: COM, NC NO output
Buy: DC12V/1A-R-Q
Dim: 202 x 36.5 x 27 mm
