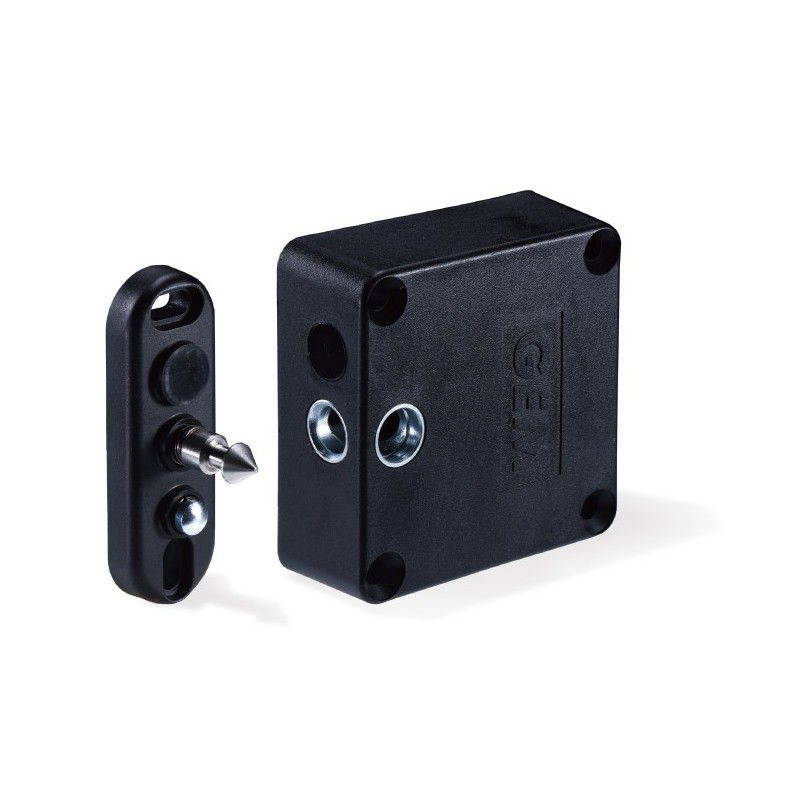

Compact motorized lock with separate pawl
Locked without tension
Releases the locking pawl in case of short-term tension
The pal part has a push-out (5-8mm)
Adjustable delay on relocking 2 to 5 seconds
2 lock inputs

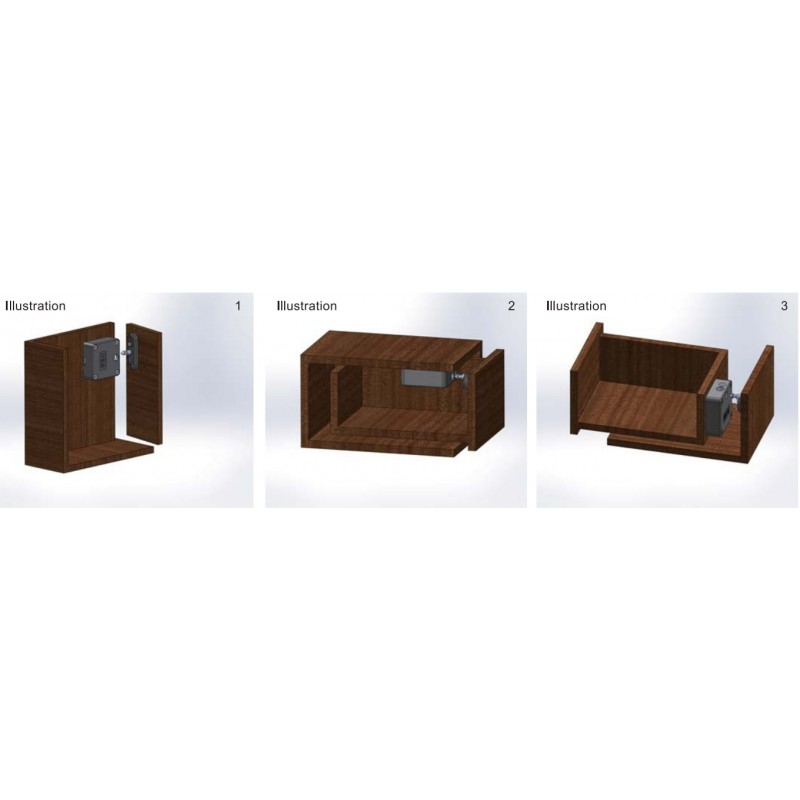

Can be mounted in 2 different ways
Control voltage - 12 - 28VDC / VAC, max. 165mA
Dimensions: 60 x 60 x 22mm
LOCK-CABINET is motorized cabinet lock in compact size - 60 x 60 x 22mm. There is a spring-activated scoop out when the pawl is released.
The lock is very suitable for small doors where space is tight.
Plastic cabinet.
Electronic Mini Lock
12VDC / 1A
Goal: 80 x 65 x 14 mm
Weight: 260g
Electrical bolt lock for door frame with lid guide
24V, 550mA
Hold force: 1000 kg
Holdebolt has a diameter 16mm and goes 16mm out
Input / output button
Delay Time 0 Sec , 3 Sec, 6 Sec, 9 Sec.
Screws and fittings included
Electric endplate 70mm
Error-proof - not suitable for back pressure
Quick and easy installation
Static holding force & nbsp; 454 kg
12VDC
Dimensions: 70 x 43 x 25mm
Electric strike for door frame, with lock monitor, 38 mm
with lock open without excitement
with lock closed without excitement
Force: 450kg
Voltage: 12VDC 300mA polarity independent
Lock Monitor: COM, NC NO output
Buy: DC12V/1A-R-Q
Dim: 202 x 36.5 x 27 mm
