12VDC 1A (12WATT) AC adapter. 5.5 / 2.5 mm DC connector. 230vac.
Net adapter 12V, 1A - Switch mode
Output: 12VDC / 1Amp
230VAC input
Power plug: 5.5 / 2.5 mm
Cable color: + Red, - White

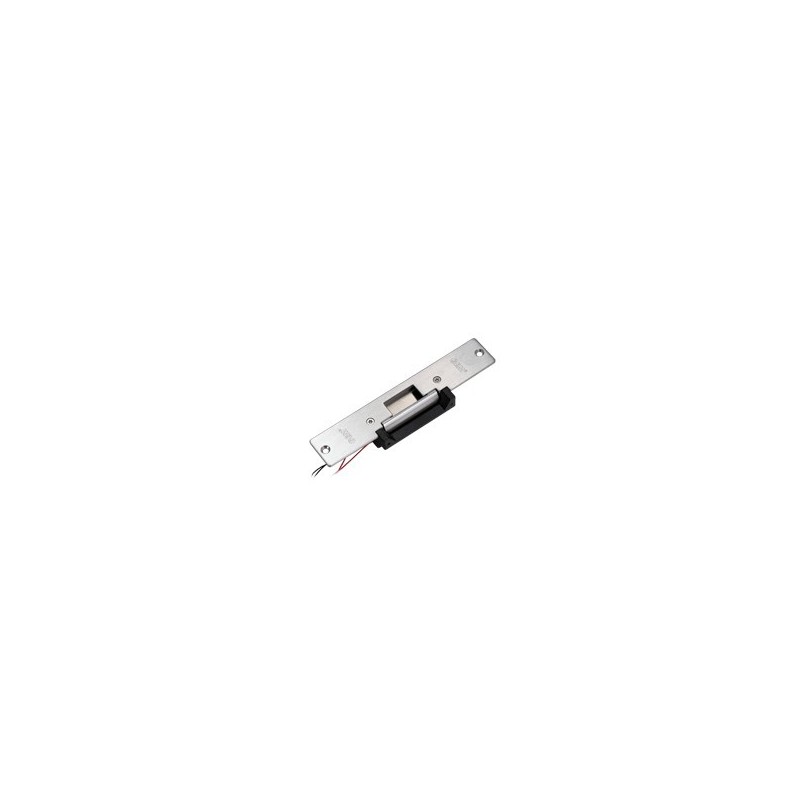

Power socket for door frame, w / monitor funk., 45 mm
Holding force: 900 kg.
Voltage: 12 VDC, 250 mA. Not included. For example, use DC12V / 1A-R-Q
Dimensions: 202 x 45 x 32 mm (H x W x D)
max. (H x B)
DOORLOCKxxx can be used on doors where electronic opening cannot be fitted but must be secured with an access control. DOORLOCKxxx mounted instead of the usual end look in the door frame. Therefore, it is not necessary to replace the locking mechanism in the door. This makes mounting easier, faster and cheaper, as only the door frame is to be replaced.
DOORLOCKxxx can be used with ACCESS RFID < and ADGANG485 or other access control controls that have relay output with timer. DOORLOCKxxx contains a powerful fall that can "lock "The door or" release "it when applying a voltage - and the door can be pushed up. This allows you to choose whether the case should be "locked" without applied voltage, or whether voltage should be applied to keep the fall locked.
Power: 900kg .
Case function: The trap can be freely set to "lock" or "release" by applied voltage
Monitor feature : DOORLOCKxx-M has a small pal that is activated by the door latch and allows to detect whether the door is closed or open
Net adapter 12V, 1A - Switch mode
Output: 12VDC / 1Amp
230VAC input
Power plug: 5.5 / 2.5 mm
Cable color: + Red, - White
Compact motor-controlled lock with separate pawl
Control voltage - 12VDC
With door-closed status
Holding force: 50 kg
Operating temp. -10 ° C - + 55 ° C
Dimensions: 41 x 35 x 19mm
Pal: ø9mm, 18mm
Weight: 0.11kg
Can be used on wood, aluminum and metal
Bolt lock for frame, locked with tension,
holding force 1000 KG
Built-in time control and reporting contact
12VDC 900 / 150mA start / operating current
Time delay: 0.3.6.9 sec.
CE & amp; MA Certified
Dimensions: 34 x 38 mm
Electric lock box for single / double acting swing doors
Smal frames - 25 mm Front plate
Brushed stainless steel
272 kg Pressure strength
Latch Status Output: 1A / 125VAC
Supply voltage: 12VDC 280MA / 24VDC 180MA
Operating voltage: 12 - 24VAC / DC
Operating cycle: 250,000 (factory tested)
Size: 24 x 160 mm House, 25 x 210 mm Front plate
Pole plate: 28 x 210 x 2 mm
Compact motorized lock with separate pawl
Locked without tension
Releases the locking pawl in case of short-term tension
The pal part has a push-out (5-8mm)
Adjustable delay on relocking 2 to 5 seconds
2 lock inputs
Can be mounted in 2 different ways
Control voltage - 12 - 28VDC / VAC, max. 165mA
Dimensions: 60 x 60 x 22mm
