USB to RS232 / RS422 / RS485

A USB to RS232, RS422, or RS485 converter is a device that allows a computer to communicate with serial devices that use one of these three serial communication standards. These converters are typically plugged into a computer's USB port, and provide one or more serial ports for connecting to serial devices.

The reason for using a USB to serial converter instead of a serial card is that many modern computers, such as laptops, tablets...

A USB to RS232, RS422, or RS485 converter is a device that allows a computer to communicate with serial devices that use one of these three serial communication standards. These converters are typically plugged into a computer's USB port, and provide one or more serial ports for connecting to serial devices.

The reason for using a USB to serial converter instead of a serial card is that many modern computers, such as laptops, tablets and some desktop computers, no longer have serial ports. USB ports, on the other hand, are commonly found on all types of computers, making USB to serial converters a more versatile solution for connecting to serial devices.

In addition to their ease of use, USB to serial converters also offer other advantages over serial cards. For example, they are typically smaller and can be connected externally where a serial card has to be built in and mounted in a notebook, which can be useful in service situations where you have to connect to a serial device on the move (PLC, Energy meter, Heat meter, Alarm system or other equipment with RS232/RS422/485 interface.They also typically do not require any additional power supply as they draw power from the USB port, which can make them more convenient to use.

Another advantage of USB to serial converters is that they often come with drivers and software that make them easy to install and configure. This can be especially useful for people who are not familiar with configuring serial cards, or who need to quickly connect to a serial device without spending a lot of time on configuration.

The USB to serial converter works by translating the USB signals from the computer to the appropriate signals for the serial device and vice versa. This allows the computer to send and receive data from the serial device as if it were connected directly to a serial port on the computer.

USB to serial converters are commonly used to connect computers to various types of industrial equipment, such as sensors, programmable logic controllers (PLCs), and other devices that use serial communication. They are also used to connect older serial devices to modern computers that no longer have serial ports.

Disadvantages of USB to RS232/422/485

This type of converter cannot be used with dongles (hardware lock to software) as the COM port appears as virtual, which is not accepted by dongles. Drivers for the OS are included. Does not occupy IRQ, DMA or I/O port - COM ports can be "remapped"

USB to Serial (RS232 / 485/422)

USB to RS232 / RS422 / RS485

There are 23 products.

Showing 1-20 of 23 item(s)

Active filters

USB to 1 x RS485 / RS442...

USB to 1 x RS485 / RS442 adapter with DB9 male - galvanic insulation

Get 1 piece. x RS485 or RS422 port via adapter connected to PC's USB port
Galvanic isolation (optical), 2KVolt
Baudrate up to & nbsp; 921.6 Kbit / s
Windows Win 7/8, Vista, Linux & Server 2000 to Server 2016 (WHQL certified)
Linux Kernel 2.4
Mac OS X 10.9, Driver Approved by Apple

Price 1,117.00 DKK
Product code: CNV-USB-RS485I
Physically in stock
  • USB to RS232 RS422 RS485...

    USB to RS232 RS422 RS485 converter

    Connect RS232/RS422/RS485 equipment to USB port
    Baudrate up to 921,6 kbit/s
    Select type of port by DIL switch
    Supports Win7/8/10, MAC

    Price 988.00 DKK
    Product code: CNV-USB-UNI
    On the way in
  • USB to 4 x RS232 adapter -...

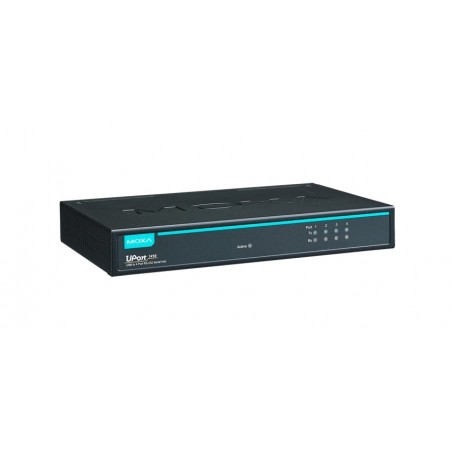

    USB to 4 x RS232 adapter - USB cable included

    Få 4 stk. RS232 porte på PC via USB porten

    Forbind 4 x RS232 enheder til USB port
    Metal kabinet og med vægmontering
    Baudrate op til 115,2 kbit/s
    Supporterer ikke hardware licens nøgler

    Supporting Win10

    Price 1,207.00 DKK
    Product code: CNV-USB-RS232SL-4P
    On the way in
  • USB to 8 x...

    USB to 8 x RS232/RS422/RS485 adapter, port-type selector on the back

    Adds eight high-speed RS-232/422/485 serial ports via USB connection
    2k bytes transmitter and receiver
    Requires no IRQ, DMA, I/O port
    RS-232 max bit rates of up to 1 Mbps
    RS-422/485 maximum bit rates of up to 10 Mbps
    Automatic transmission buffer control for 2-wire RS-485 half-duplex operation
    Biasing and terminating resistors installed on board
    Supported RS-232 signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
    Supported RS-422 signals: TxD-, TxD+, RxD+, RxD-, GND
    Supported RS-485 4-wire signals: TxD-, TxD+, RxD+, RxD-, GND
    Supported RS-485 2-wire signals: Data-, Data+, GND
    Data Bits: 7/8
    Parity: None, Even, Odd, Mark, Space
    Stop Bit: 1, 2
    Flow Control: Hardware (RTS, CTS), XON/XOFF
    Monitor LEDs for TxD, RxD indicating port status
    Built-in AC to DC switching power supply, 100VAC to 240VAC
    Virtual COM port drivers available for Windows 11, 10, 8.1, 8, 7, Vista, 2003, XP, 2000
    Win Server: 2000 up to 2018, Linux, MAC
    Industrial quality metal case with DIN bracket for DIN rail mounting

    Price 4,211.00 DKK
    Product code: CNV-USB8UNI-R
    On the way in
  • USB to 1 x RS232 / RS422 /...

    USB to 1 x RS232 / RS422 / RS485 adapter. 300 - 115.2kbit. Complies with COM signals +/-11Volt. Galvanically isolated

    Serial to USB converter with 1 x RS232/422/485 port
    Respects the +/- 11 volt data signals
    Galvanically isolated on the RSxxx output
    Self-tuner Baud Rate
    Automatic direction control
    Powered from the USB port
    USB connector: Type B
    Supports USB 1.1, 2.0 and 3.0
    COM port: terminal block

    Price 1,196.00 DKK
    Product code: M485-USB-I
    Physically in stock
  • USB to 1 x RS485 / RS22...

    USB to 1 x RS485 / RS22 adapter, optically galvanically isolated

    Get an RS485 or RS422 port on the PC via the USB port
    Galvanic isolation (optical) 2KV - 3 x 6N137 IC chip
    DB9 male and screw terminal for serial connection
    Baud rate up to 921.6 Kbit/s
    Selection of port type with DIP switch
    Support Win 10, Android
    FTDI chipset FT232RL

    Price 1,288.00 DKK
    Product code: CNV-USB-UNI-I+
    Physically in stock
  • 1 x USB to RS232 / RS422 /...

    1 x USB to RS232 / RS422 / RS485 adapter, optically isolated

    Get a RS485 or RS422 or RS232 port on the PC via the USB port
    Galvanic isolation (optical) 2KV
    DB9 male and screw terminal to 232/422/485 connection
    Termination by Jumpers
    Baud rate 300bit / s two 921.6 kbit / s
    selectable RS232, RS422 and RS485 via DIP switch
    Supports Win7 / 8/10 and over as well as MAC
    Powered through USB (5V)
    Operating Temp . 0 ° to 55 ° C,

    Price 1,145.00 DKK
    Product code: CNV-USB-UNI-I
    Physically in stock
  • USB 1 x RS232 adapter, DB9...

    USB 1 x RS232 adapter, DB9 male, USB2.0, MOXA UPORT 1110

    MOXA, 1-port RS-232 USB to serial adapter.

    Compatible with USB 2.0 and 12 Mbps USB data rate
    921.6 Kbps maximum baud rate for super fast data transfer
    Drivers are provided for Windows, WinCE and Linux
    DB9 male. USB2.0 with 80cm cable
    LEDs for displaying USB and TxD / RxD activity
    15 KV ESD protection for all serial ports
    OS support: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT

    Price 575.00 DKK
    Product code: CNV-USB-SER9+M
    Physically in stock
  • USB to 1 x RS232/422/485...

    USB to 1 x RS232/422/485 adapter, 1 meter USB cable. MOXA UPORT 1150

    Få en COM-port på PC via USB porten

    MOXA USB to RS232/422/485 converter.
    Kompatibel med USB 2.0
    Software selectable RS232, RS422, 4-wire RS485 and 2-wire RS485
    Certified drivers for Windows, WinCE 5.0 and Linux
    15 KV ESD protection

    Supporting Win10

    Price 1,535.00 DKK
    Product code: CNV-USB-SER9+MIU
    Physically in stock
  • USB to 1 x RS422 / 485...

    USB to 1 x RS422 / 485 adapter, opto-insulated, with COM mapping, MOXA UPORT 1130

    Get a RS485 / RS422 port on the PC via the USB port
    Software for choosing a fixed COM port - very useful
    Compatible with USB 2.0
    12 Mbps USB data rate
    921.6 kbps maximum baud rate
    Driver for Windows, WinCE, and Linux
    Mini DB9 male for terminal block adapter
    LED for indication of USB and TxD / RxD activity
    15 kV ESD protection for 2 kV optical isolation

    Price 1,531.00 DKK
    Product code: CNV-USB-SER9+M3
    On the way in
  • USB to RS232 / RS422 /...

    USB to RS232 / RS422 / RS485 high-speed adapter up to 921.6 kbps, 3kV DC isolation

    High-speed USB to RS232/422/485 adapter
    Transmission speed - up to 921.6 kbps
    Supports USB 1.2/2.0/3.0
    3000V DC isolation on RS232/422/485
    RS232/422/485 cannot be used simultaneously
    Supplied via the USB port
    Automatic RS485 Direction Control
    Temperature range: -25°C - +75°C
    DIN rail mounting
    Windows 98/ME/2000/XP/Vista (32/64-bit)
    Windows 7 / 8.1 / 10 (32/64-bit)
    Win 2012
    Linux

    Price 1,020.00 DKK
    Product code: M485-USB-I-U
    Physically in stock
  • USB C to RS232 adapter -...

    USB C to RS232 adapter - get a COM port on PC via the USB C port. With 3 pcs. LED indicators

    USB-C to Straight-Through RS232 serial adapter
    With DB9 male
    With 3 x data monitoring LEDs (TX, RX, PWR)
    COM port assignments are maintained across reboots
    Max Baud Rate: 921.6 Kbps | 1, 1.5, 2 stop bits
    Odd, Even, Field, Space, No Parity Mode
    Hardware Flow Control (CTS/RTS and/or DSR/DTR)
    Software Flow Control (XON/XOFF) | Chipset: PL2303-GC
    Compatible with Windows®, Mac OS and Linux

    Price 340.00 DKK
    Product code: CNV-USBC-RS232+L3
    • New
    On the way in
