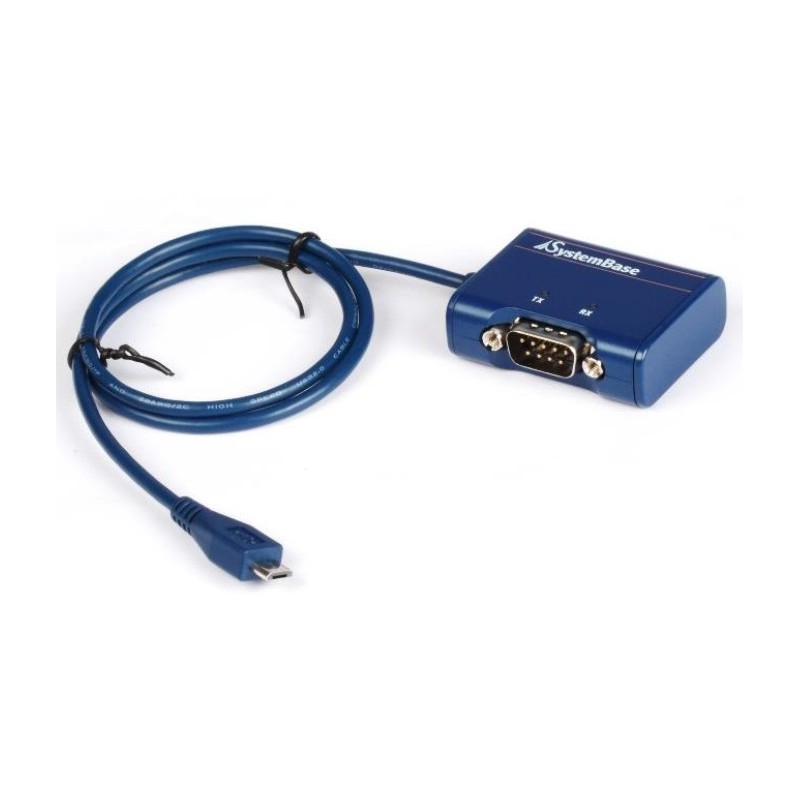

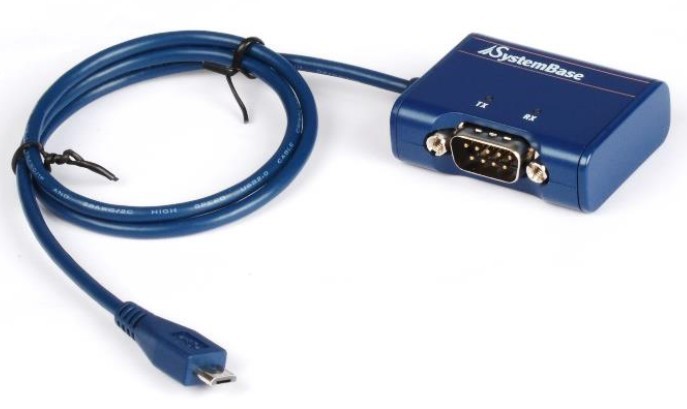

USB 1 x RS232, COM port for Android tablet / phone. Micro USB

Get a COM port on the Android Tablet or Android phone via USB port

Connect 1 x RS232 equipment to Android Tablet / phone
Connect to micro USB port on the Tablet / Phone
Baud rate up to 921.6 kbit / s

CNV232USB-A
455.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

This device adds RS232 port via micro USB port type B.
User can install and remove this unit with PnP feature of USB.
There are two LEDs on top of the product to control kommunications status.

CNV232USB-A supports Android OS version 3.2. Supporting USB OTG, it can be used in mobile, tablet PC two communicate with RS232.

CNV232USB-A supports RS232 serial communication speed up to 921.6Kbps through DE9 connector, an external adapter is not required < / p>

When USB type A plug two micro USB type B receptacle adapter is used, Linux or Windows based PC can be used with this product.

Beskyttelse
±15KV ESD Protection
Dimensioner
49.0(L) X 39.0(W) 16.3(H) mm
Forsyning
RS232: 180mA@5A
Hastighed
921.6Kbps
OS SUPPORT
Windows XP/Vista/7 /8/8.1 (32/64bit) Windows Server 2003/2008 (32/64bit) Android OS 3.2
Porte
1
Signaler
RS232: TX,RX,RTS,CTS,DCDDTR,DSR,RI,GND
Stik
DB9 han
