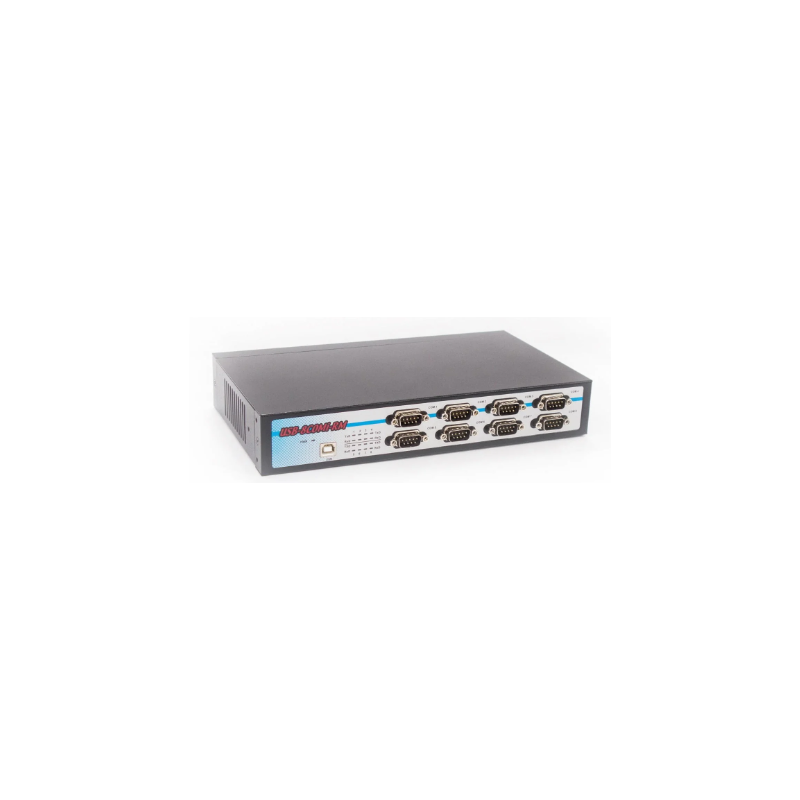

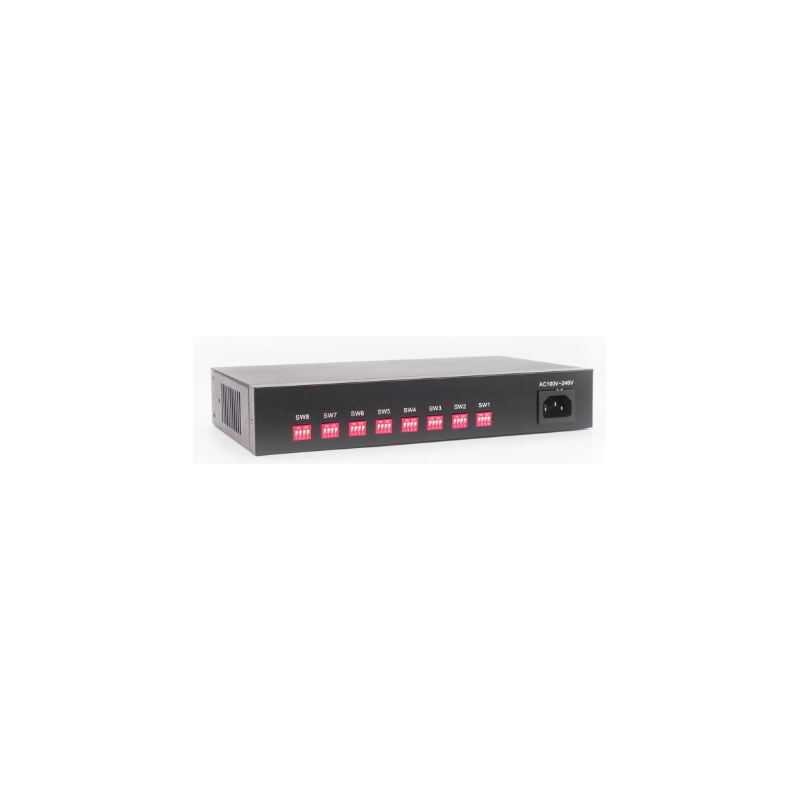

USB to 8 x RS232/RS422/RS485 adapter, port-type selector on the back

Adds eight high-speed RS-232/422/485 serial ports via USB connection
2k bytes transmitter and receiver
Requires no IRQ, DMA, I/O port
RS-232 max bit rates of up to 1 Mbps
RS-422/485 maximum bit rates of up to 10 Mbps
Automatic transmission buffer control for 2-wire RS-485 half-duplex operation
Biasing and terminating resistors installed on board
Supported RS-232 signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Supported RS-422 signals: TxD-, TxD+, RxD+, RxD-, GND
Supported RS-485 4-wire signals: TxD-, TxD+, RxD+, RxD-, GND
Supported RS-485 2-wire signals: Data-, Data+, GND
Data Bits: 7/8
Parity: None, Even, Odd, Mark, Space
Stop Bit: 1, 2
Flow Control: Hardware (RTS, CTS), XON/XOFF
Monitor LEDs for TxD, RxD indicating port status
Built-in AC to DC switching power supply, 100VAC to 240VAC
Virtual COM port drivers available for Windows 11, 10, 8.1, 8, 7, Vista, 2003, XP, 2000
Win Server: 2000 up to 2018, Linux, MAC
Industrial quality metal case with DIN bracket for DIN rail mounting

4,211.00 DKK
Tax excluded
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

USB to serial converters are ideal for use where serial ports are not available, for example on newer laptops and desktop PCs/servers. This can be a significant saving compared to having to convert RS485 systems to USB. All models are supplied with a loose or mounted USB cable. The converters support both OHCI (Open Host Controller Interface) and UHCI (Universal Host Controller Interface). Maximum speed up to 921.6 Kbit/s on the RS232/422/485 port

Leveres m/19” rackmonterings-beslag
Medfølger ikke, benyt K-USB4AM-BMxx
Win 2000, XP, Win7, Win8, Win10 og MAC
USB 1.1 og RS232/422/RS485
8 x DB9
Indbygget; tilsluttes 230 VAC
