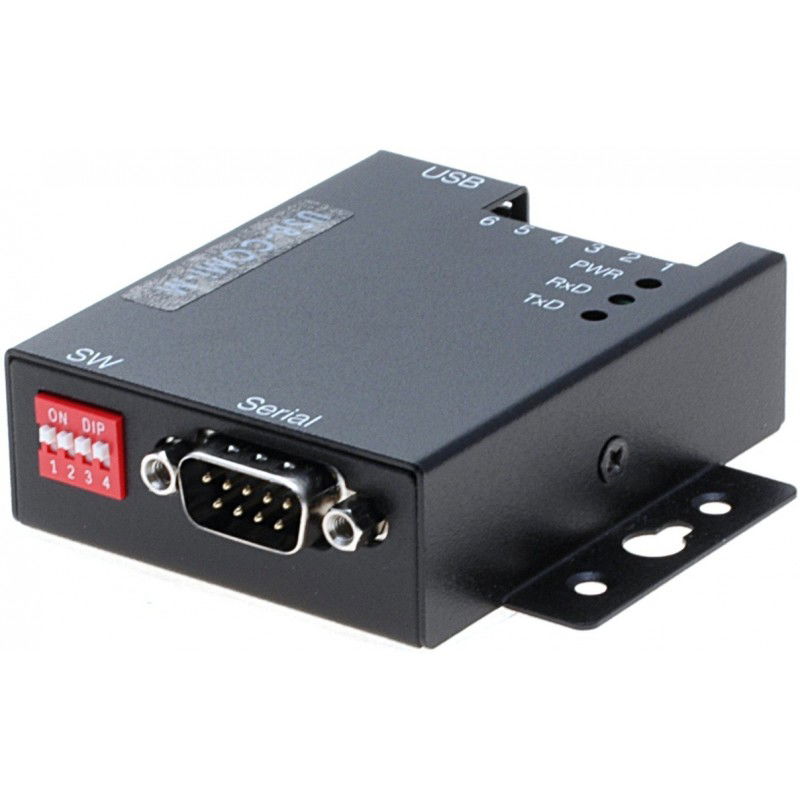

1 x USB to RS232 / RS422 / RS485 adapter, optically isolated

Get a RS485 or RS422 or RS232 port on the PC via the USB port
Galvanic isolation (optical) 2KV
DB9 male and screw terminal to 232/422/485 connection
Termination by Jumpers
Baud rate 300bit / s two 921.6 kbit / s
selectable RS232, RS422 and RS485 via DIP switch
Supports Win7 / 8/10 and over as well as MAC
Powered through USB (5V)
Operating Temp . 0 ° to 55 ° C,

£133.16
Excl. VAT
Quantity
On the way in
Product number CNV-USB-UNI-I
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

Approval CE, FCC
Baudrate Data Bits 7, 8 Parity None, Even, Odd, Mark, Space Stop Bit 1, 2 Flow Control Hardware (RTS, CTS), XON/XOFF
Driftstemperatur 0°C to 55°C (32°F to 131°F)
Isolation 25kV ESD protection for all signals 2000V DC optical isolation for all signals
Kabel 0,9 m USB kabel medfølger
Luftfugtighed 5% to 95% RH
Compositions Casing SECC metal chassis with DIN rail bracket
Montering DIN rail bracket
OS SUPPORT Windows 2000 up to Windows 10 Windows Server 2000 up to 2018 Linux kernel 2.6+ Mac OS X support available
Porte Max. Speed RS-232:up to 1Mbps RS-422/485:up to 3Mbps RS-232 Signals RxD, TxD, GND, RTS, CTS RS-422 Signals TxD-, TxD+, RxD+, RxD-, GND, RTS-, RTS+, CTS+, CTS- RS-485 Signals (4 wire) TxD-, TxD+, RxD+, RxD-, GND RS-485 Signals (2 wire) Data-, Data+, GND
Signaler RS422/RS485
Stik Skrue
Strømforsyning Power Input Power supplied via USB connector No external power needed Power Output 5V, 150mA through pin 5 of terminal block
Temperatur -20°C to 75°C (-4°F to 167°F)
USB USB 2.0 High Speed, USB 1.1 compliant Speed 480Mbps, hi-speed USB

USB to serial converters are ideal for applications where serial ports are not available, for example on newer laptops and desktops / servers. This can be a significant savings compared to having to convert RS485 systems to USB. All models are supplied with loose or mounted USB cable. The converters supports OHCI (Open Host Controller Interface) and UHCI (Universal Host Controller Interface) and certain models have optical isolation up to 2000V Maximum speed up to 921.6 kbit / s on the RS422 / 485 port
