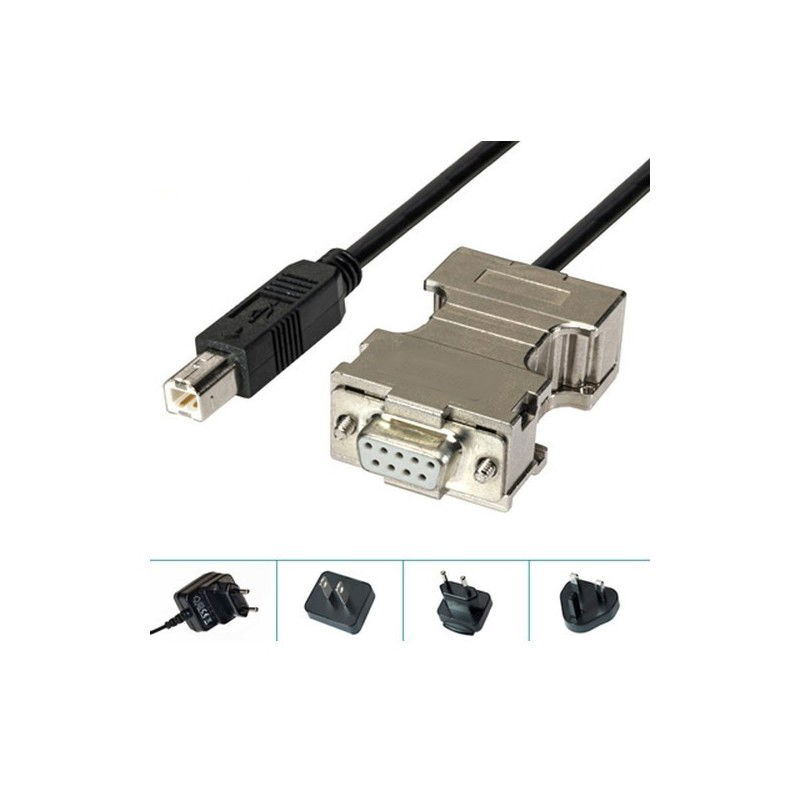

USB printer connects to RS232 port - DB9 female to USB B, 1.8 meter cable. The converter is only for specific USB printers

RS232 for USB printer adapter cable
connect USB printer to PC com port
automatic baud rate
power supply included
DB9 female and USB B
Supply voltage: 5VDC 100mA
GDI printers (without own emulation) are not supported
See list of supported printers under Downloads

CNV-USBB-RS232
1,900.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Adapter used to connect printers / multifunction printerers with a PC's COM port (Serial Interface)
for example. On laboratories, control panels, pharmaceutical equipment or products with serial interface for serial printer, where the printer is replaced with a printer only with USB port. The adapter can only be used on the printers specified in the printer list - found during downloads.

Connector:
1 x 9-pole sub-d She
1 x USB-B Han
Power Supply: 110-240V / 50 / 60Hz
output 5volt / 100 mA
Cable length: 1.8m
USB - Interface
USB USB1.0 Low-Speed ​​
USB1.1 Low / Full-speed
USB2.0 Low / Full-speed

Purpose: Only for USB Printer
Speed ​​2400-115200 Baud
Protocol: None, RTS / CTS, Xon / Xof < Br> Parity: None, Odd, Even
Data Bit: 7.8
Stop Bits: 1,2
Class: Printer
Class: Hub
