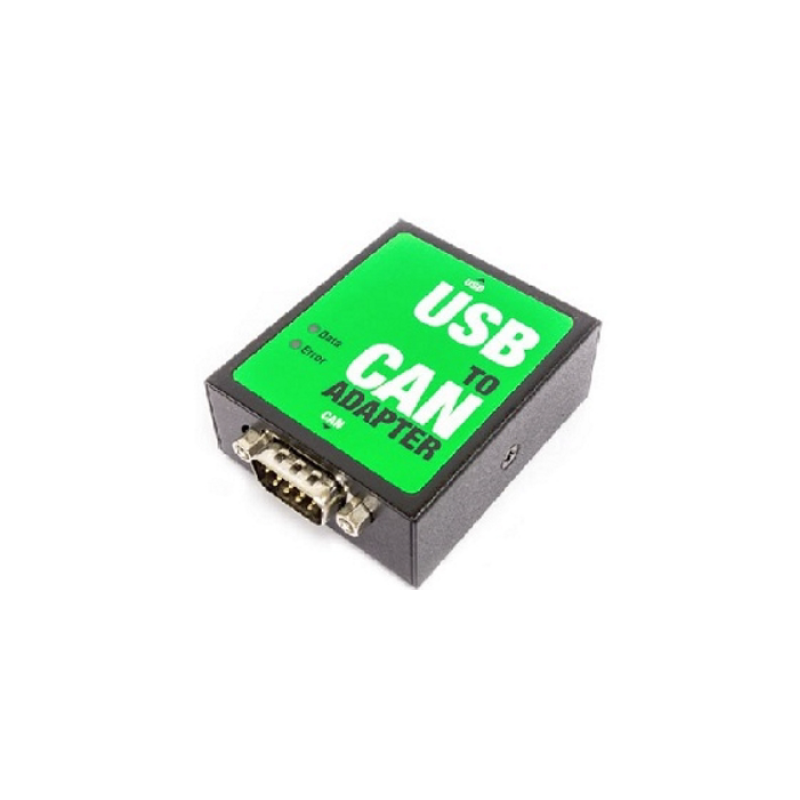

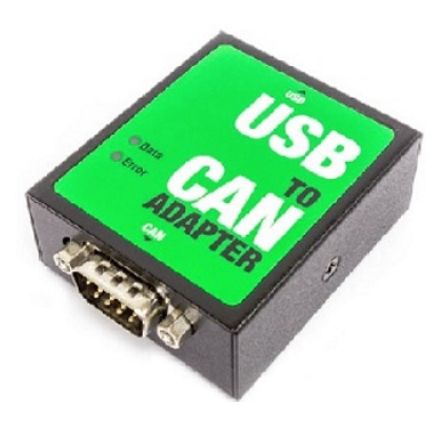

CAN bus to USB adapter. Connects a PC with USB port to CAN Bus. CAN 2.0A and CAN 2.0B up to 1Mbps

CAN bus port on your computer via USB 1.1, 2.0 or 3.0 port
Powered from USB port
LED shows initialization and CAN bus status
Installs as a standard Windows COM port
CAN modes: Standard, Listen, Echo
Controlled using ASCII commands
API provided along with examples
Plug and play installation
CAN bus speed up to 1 Mbps
Supports CAN 2.0A and CAN 2.0B protocols
Drivers provided for Windows and Linux OS
Supports SocketCAN (slcan driver) since kernel 2.6.38+

CNV-USB-CAN
1,132.00 DKK
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

The Controller Area Network (CAN) is a high-integrity asynchronous serial bus system for networking intelligent devices. It is often used in automotive and industrial systems. CNV-USB-CAN is designed to provide a fast and simple way to communicate with CAN bus devices. Plugged into a USB port on your computer or USB hub, the CNV-USB-CAN instantly adds an industrial CAN bus channel to your host system with easy plug and play (PnP) and hot plug capabilities.

USB-CAN-M provides a cost-effective solution for customers that enables communication with CAN bus devices. The solution designed by ARM Cortex-M0 32-bit microcontroller and USB to serial chip makes it very flexible to handle small burst of CAN frames at high speed

Hastighed
Op til 1 Mbit på CAN bussen
Interface
USB 2.0 - bagudkompatibel til USB 1.1
OS SUPPORT
Windows 2000, XP, 2003, Vista, Win7/8/10
Stik
DB 9 han stik til CAN bus. USB type B hun stik
