Information on USB 3.0
At the end of 2008, USB 3.0 (Super-Speed) was clarified to a transfer rate of 5 Gbps. It is 10 times faster than USB 2.0. Products using USB 3.0 were presented in late 2009 and early 2010.
USB 3.0 supports USB 1.0, USB 1.1 and USB 2.0. This will provide a smooth transition from the current USB 1.0 and 2.0 to USB 3.0. The speed increase comes from extra pins on the USB 3.0 connector. USB 3.0 has 9 pins as...
Information on USB 3.0
At the end of 2008, USB 3.0 (Super-Speed) was clarified to a transfer rate of 5 Gbps. It is 10 times faster than USB 2.0. Products using USB 3.0 were presented in late 2009 and early 2010.
USB 3.0 supports USB 1.0, USB 1.1 and USB 2.0. This will provide a smooth transition from the current USB 1.0 and 2.0 to USB 3.0. The speed increase comes from extra pins on the USB 3.0 connector. USB 3.0 has 9 pins as opposed to USB 2.0 which has only 4 pins. The extra leg also means that where USB 2.0 delivered 500 mA, USB 3.0 can deliver 900 mA. It may eliminate the need for more power supplies that were previously needed due to this limitation.
Subcategories
There are 65 products.
Industrial USB HUB with YOUR rail mounting
Can be powered from 7 - 24VDC - provides incredibly good noise immunity | DC24V400MA-D
Dimensions: 115 x 65 x 26mm
Steel cabinet, with flange for wall mounting
OTG cable adapter
USB 3.0 Type A Male to USB 3.1 C female
Color: Black
Get a COM port on the PC via the USB port
USB to RS232 7 or 8 bit
RS232 signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Up to 921.6 kbit/s - FTDI chip
DB9 male
RS232 - 08/07 bit
Max. 115.2 kbit / s
FTDI chip - FT232xx.
Does not work with software license dongles
With internal jumper getting + 5VDC on pin 9
1 meter USB cable
Supports Win10 < / p>
USB 3.0 booster (extender) cable - 5 meters
SuperSpeed USB 3.0 male (type A) to USB 3.0 female (type A) connector
Powered from USB port
10 times faster than USB 2.0
OS support: Windows 2000, XP, VISTA, 7, 8, 10 & MAC
USB 3.1-C to UDB 3.0 - 10 Gbps
4 port USB HUB
USB version: 3.0
Cable length: 0.3m
Support: Mac/Windows/Android
Support: Mobile Phone/Tablet/USB Driver/OTG/PC/Laptop

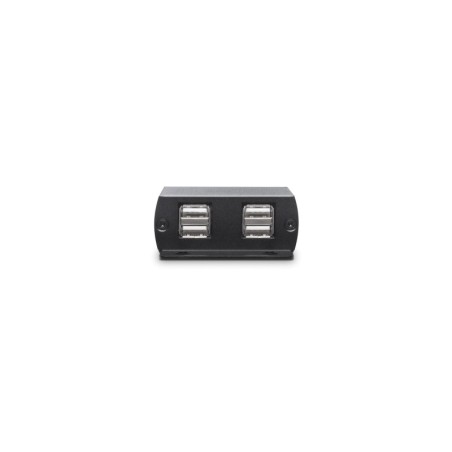

USB extender - also touch screen with USB.
Data transfer: 1.5Mb / s, 12Mb / s, 480Mb / s
2 x USB2.0
receiver powered from the transmitter with 24VDC of RJ45 cable
1 x Transmitter
1 x Receiver
Cat 5 or higher (only straight lines)
Up to 50 meters
Wall mounting
Supporter also touch screen
No driver needed < br> 24VDC power supply included
STOCK SALE
Internal USB2.0 hub in frame
for 3.5" or 5.25" cutout
4 USB ports
480 MB / second
Plug & Play
7-port USB3.0 HUB with metal housing
USB3.0 supports up to 4.8 Gbit/s (600MBps)
Built-in High Speed USB3.0 Hub controller
Additional power supply: 12VDC /3A - 5A
Plug & Play
Black metal cabinet
Can be wall mounted
With 12VDC supply, good noise protection is achieved
Data transfer: 1.5 Mbs, 12 Mbs, 480 Mbs for 4 x USB2.0 ports
RJ45 on Transmitter and Receiver
Cat 5e/6 or more (straight through)
Use ONLY quality patch cord
Up to 120 meters
No driver needed
only 5V voltage on the transmitter (PSU included)
Receives the power supply via network cable
Get 2 pcs. COM ports on the PC through USB port
Separate USB cable AM and BM
Supporting Win7 / 8
Cable included
4 port USB 3.0 HUB with DIN rail mounting
Can be powered from 7-24 VDC
Provides good noise immunity
Up to 900mA per port. by external supply.
USB cable for PC included
Voltage ONLY from terminal - int. jumper on DIS
Voltage from USB and clamp - int. jumper on ENA
Get an RS485 or RS422 port on the PC via the USB port
Galvanic isolation (optical) 2KV - 3 x 6N137 IC chip
DB9 male and screw terminal for serial connection
Baud rate up to 921.6 Kbit/s
Selection of port type with DIP switch
Support Win 10, Android
FTDI chipset FT232RL
Isolates and protects USB device from USB host
Electrical insulation up to 3000V both directions
Common mode filtering on all data lines
Output voltage: 5V 420mA
USB2.0 12 Mbps or USB1.1 1.5 Mbps with jumper
No software or drivers required
Short circuit protection
LED for power indication
Operating temperature: -40 - +70°C
Robust metal housing with DIN rail mounting
USB cable is securely locked to the case
Få en COM-port på PC via USB porten
MOXA USB to RS232/422/485 converter.
Kompatibel med USB 2.0
Software selectable RS232, RS422, 4-wire RS485 and 2-wire RS485
Certified drivers for Windows, WinCE 5.0 and Linux
15 KV ESD protection
Supporting Win10
4 port USB 2.0 hub with blue lighting for each port
4 x USB 2.0
WITHOUT charging function on the USB port!
Plug and play
OS support: Windows 98 SE, 200, Me, XP, Vista, 7, 8, 10, Mac OS
maximum 480 Mbps
4 port USB 3.1 Gen 2 Hub
2 x Type-A, 2 x Type-C, 1 x Type-C Upstream
For DIN-Rail or Desktop Mount
Supports: 10Gbps (SS +) , 5Gbps (SS), 480Mbps (HS), 12Mbps (FS), 1.5Mbps (LS)
Power supply: + 7 ~ 24VDC (12V, 1A included) via DC plug or terminal block
Power per port: 0.9A at the same time
Backwards compatible with: USB 1.1, 2.0, 3.1 Gen 1
Temperature range: 0 ~ 55 ° C
Humidity: 5 to 95% RH
Dimensions: 151.1 x 62 x 34 mm
Lock insert for the USB ports on the PC and avoid unwanted connection of USB equipment
Lock for the USB port w/key and 4 locks (Orange)
Other colors can be supplied - each color can only be unlocked by a key of corresponding color
The key can be placed in the key chain.
Aktivt USB 2.0 booster (extender) kabel - 10 meter
USB 2.0 han (type A) til USB 2.0 hun (type A) stik
Aktiv forstærker/ booster monteret på kabel
Strømforsynes fra USB port
OS support: Windows 2000, XP, VISTA, 7, 8, 10 & MAC
1 X USB-A 3.0 SuperSpeed
1Gbit LAN (10/100/1000Mbit)
USB Over IP (with IP interface)
Windows 2000, XP, Vista, 7~10
macOS x10. 5~10.13
Power supply: 5VDC 2.5A (supplied)
Supports some USB License Dongles - install SW
