RS232 / 422/485 for Multi Mode fiber converter 62,5my or 50my, ST connector, MOXA TCF-142-M-ST
MOXA Converter RS232 / RS422 / RS485 Fiber MultiMode, TCF-142-M-ST

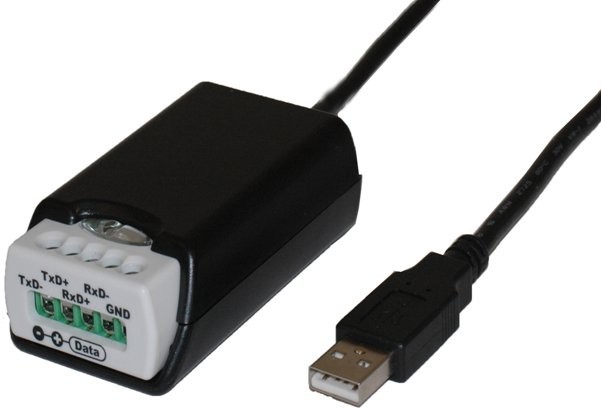

USB to 1 x RS422 / RS485, w/ screw terminal
Max speed up to 921.6 Kbit/s - RS422 / 485 port
Select type of port from DIL switch and jumper
Default set to RS422
Supports Win10
Conversion from RS422 to RS485:
S1 to ON
S2 to OFF
S3 to ON (No echo)
Jumper from right to left seen from the cable end:
1-2 is 120 ohms - move forward
4-5 is bias to D+ - move forward
7-8 is bias to D- - move forward
Remaining must be disabled (Do not move)
USB to serial converters are ideal for use where serial ports are not available, for example on newer laptops and desktop PCs/servers. This can be a significant saving compared to having to convert RS485 systems to USB. All models are supplied with a loose or mounted USB cable. The converters support both OHCI (Open Host Controller Interface) and UHCI (Universal Host Controller Interface) and certain models have optical isolation up to 2000V. Maximum speed up to 921.6 Kbit/s on the RS422/485 port
MOXA Converter RS232 / RS422 / RS485 Fiber MultiMode, TCF-142-M-ST
4 COM ports over Ethernet, Internet
Each COM port can be RS232 or RS422 or RS485
RS232 Pin 1 - 8: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS
RS422 / RS485 4-W: Pin 1 - 5: TXD +, TXD, RXD +, RXD, GND
RS485 2-W: Pin 3 - 5: Data, Data +, GND
Baud Rate: 50 bps - 921Kbps
Data Bits: 5, 6, 7, 8
Parity: 1, 1.5, 2
Stop Bit: Odd, Even, None, Space, Mark
2 x RJ45 10 / 100Mbit
Alarm: Relay output
Supply voltage: 12 - 48VDC 6.5WATT
Web Management
IP Version: IPv4 / IPv6. TCP Server, TCP Client, UDP Client
Virtual Com
Pair Connection
Supporter: XP to Win10, Server 2003, 2008, 2012
Size: 135 x 88 x 50 mm
DIN bracket
4 ports multiplexer (sæt), op til 900m
Wireless Com Port - Can Peer-to-Peer connection
IEEE 802.11 a/b/g/n
2.4 GHz, 5 GHz Dual Band
1 Port RS232 or RS422 or 2-wire RS485
Max.Baud Rate: 921.6 Kbps
Operating temperature: -40 - +85°C
with COM Port Re-Director, TestView
± 15KV IEC ESD protection
Supply voltage: 5 - 12VDC / 2W
infrastructure, Soft AP, Roaming
sWifi config Mobile App for Android
