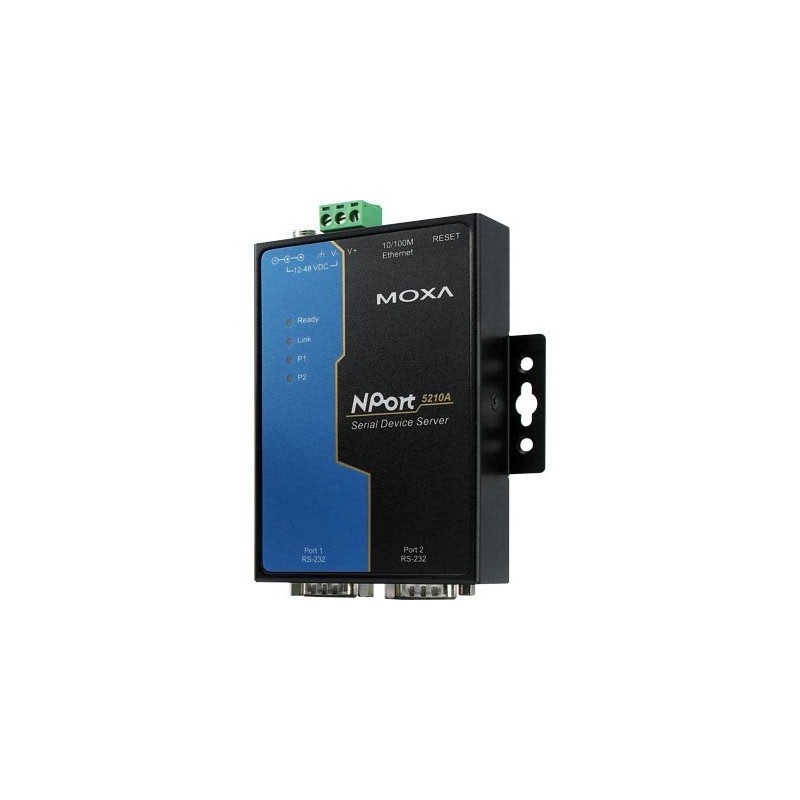

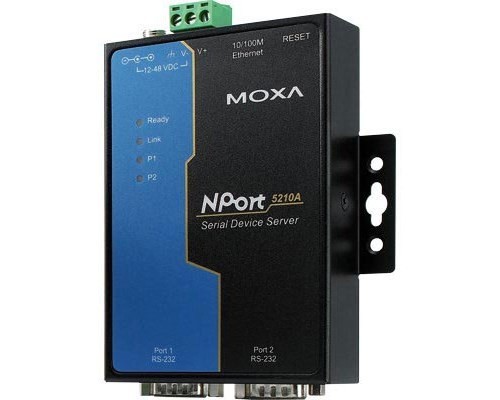

2 Ports seriesport server with RS232, Moxa Nport 5210A. Serial Device Server with 2 x DB9 he

External COM ports via Ethernet and Internet
Compact and but finding room for
Socket Modes: TCP Server / TCP Client / UDP
Windows Utility for Configuring Multiple Device Servers
Supports 10 / 100m Ethernet
2 x DB9 male
SNMP MIB-II for Network Management
Power supply included

ETH2SER232+DB9
2,202.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Ethernet Interface:
Number of Ports: 1
Speed: 10/100 Mbps, auto MDI/MDIX
Connector: 8-pin RJ45
Magnetic Isolation Protection: 1.5 kV built-in

Serial Interface
Number of Ports: 2
Serial Standards: RS-232
Connector: RJ45 (8 pins)
Serial Line Protection: 2 kV isolation protection (NPort 5232I/5232I-T)

Serial Communication Parameters
Data Bits 5, 6, 7, 8
Stop Bits 1, 1.5, 2
Parity None, Even, Odd, Space, Mark
Flow Control: RTS/CTS (RS-232 only), XON/XOFF
Baudrate: 110 bps to 230.4 kbps

Serial Signals
RS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

Software
Network Protocols: ICMP, IPv4, TCP, UDP, DHCP, BOOTP, Telnet, DNS, SNMP V1, HTTP, SMTP, SNTP
Configuration Options: Web Console, Serial Console (NPort 5210/5230 only), Telnet Console, Windows Utility
Windows Real COM Drivers: Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY Drivers: SCO Unix, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X
Linux Real TTY Drivers: Linux 2.4.x, 2.6.x, 3.x

Physical Characteristics
Housing Metal
Weight: 340 g
Dimensions: 67 x 100.4 x 22 mm

Environmental Limits
Operating Temperature: 0 to 55°C
Storage Temperature: -40 to 75°C
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements
Input Voltage: 12 to 48 VDC
Power Consumption: 325 mA @ 12 V, 190 mA @ 24 V
