5VDC 2 Amp (7.5Watt) mains adapter from 100 - 240VAC. connector: 3.5/1.35mm, switch mode
Switch mode type
5VDC 2A mains adapter
DC plug. 3.5/1.35mm
External COM port over Ethernet and Internet
RS232/422/485
Atop SE5201-DB Serial Device Server
10/100Mbit Ethernet.
Serial port via DB9 male connector
Supports TCP Server/Client, UDP, Virtual COM and Tunneling modes
Power is supplied from 9 - 30VDC or 5VDC (power jack)
Power supply not included
DIN kit (option)
Dimensions: 65 x 78 x 28mm (without wall bracket)
Dimensions: 88.5 x 84 x 27.8mm (with wall bracket and DB9 port)

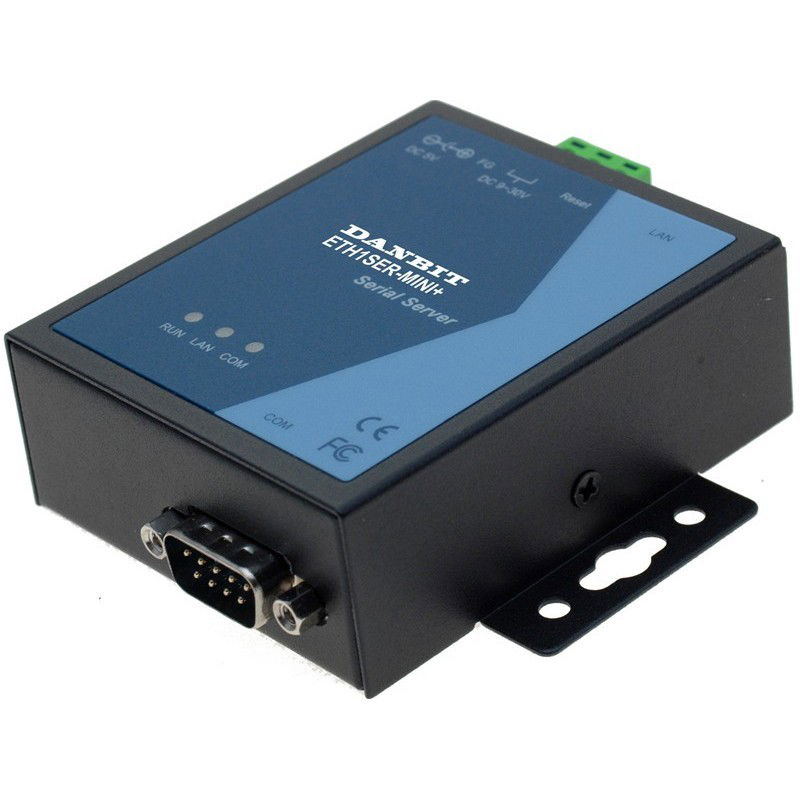

With the ETH1SER-MINI+, a virtual COM driver is supplied that installs a virtual serial port (RS232/422/485) on the PC as if it were a physical port. The ETH1SER-MINI+ can be set up with an embedded Web server, Windows setup program or the serial port. ETH1SER-MINI+ has a single serial port for e.g. local network and/or internet. A simple Windows program is included which automatically finds all ETH1SER-MINI+ on the network so they can be set to an optional IP address.
Power is supplied from 9 - 30VDC - or 5VDC via power jack connector. Power supply not included - additional purchase may be required. DC5V/1.5ARQ
Switch mode type
5VDC 2A mains adapter
DC plug. 3.5/1.35mm
MOXA CBL-RJ45M9-150 - Serial RS-232 cable - RJ-45 (male) for DB-9 (male) 1.5 m -
For Moxa CN2510, CN2610, CP-104, Opt4, Opt8; NPort 5210, 5610, 5630 asdf
2 COM ports over Ethernet, Internet
Each COM port can be RS232 or RS422 or RS485
RS232 Pin 1 - 8: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS
RS422 / RS485 4-W: Pin 1 - 5: TXD +, TXD, RXD +, RXD, GND
RS485 2-W: Pin 3 - 5: Data, Data +, GND
Baud Rate: 50 bps - 921Kbps
Data Bits: 5, 6, 7, 8
Parity: 1, 1.5, 2
Stop Bit: Odd, Even, None, Space, Mark
2 x RJ45 10 / 100mbit
Alarm: Relay output
Supply voltage: 12 - 48VDC 6.5WATT
Web Management
IP Version: IPv4 / IPv6. TCP Server, TCP Client, UDP Client
Virtual Com
Pair Connection
Supporter: XP to Win10, Server 2003, 2008, 2012
Size: 135 x 88 x 32 mm
DIN bracket
External COM port via Ethernet and Internet.
1-port RS-232 serial device servers

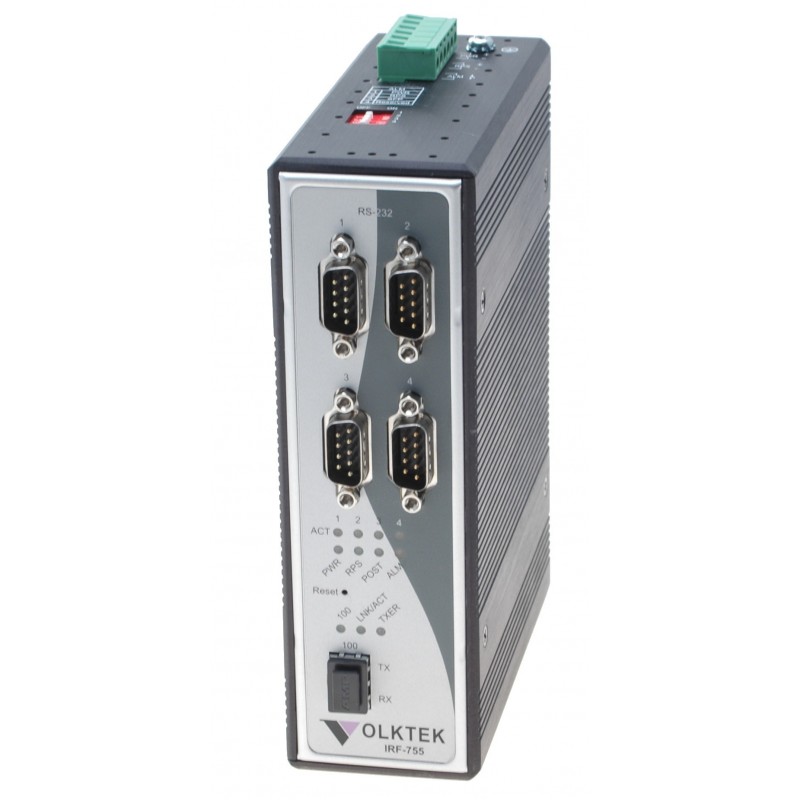

4 COM ports via optical fiber cable
point to point or pount to 4 points
4 x RS232 ports up to 2km with multi mode cable
4 x RS232 ports up to 20km with single mode cable
Buy 100Mbit SFP Module (Multi Mode or Single Mode)
1 x 100 Mbit SFP for LC Duplex Fiber cable
4 x RS232 DB9 male connector
Setup via built-in Web server
62 x 50 x 120 mm
DIN fittings
Display 3 LEDs Displays TX / RX, Network and System Status
Supply voltage: 9 - 32VDC Redundant (not supplied)
