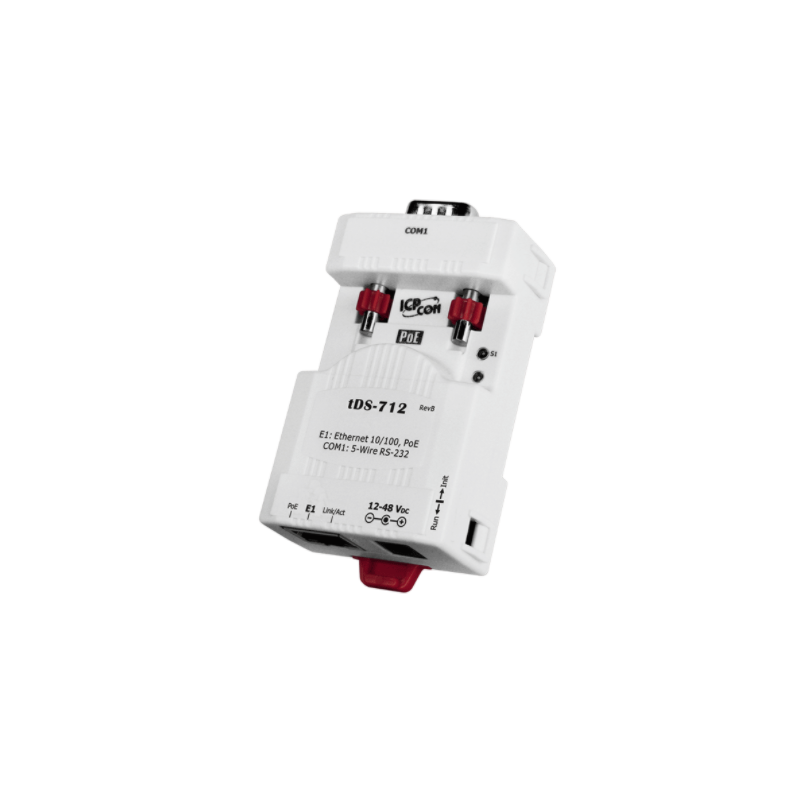

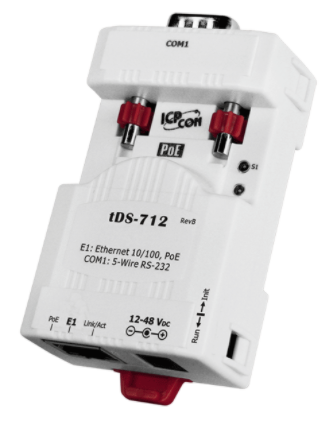

External COM port via Ethernet and Internet

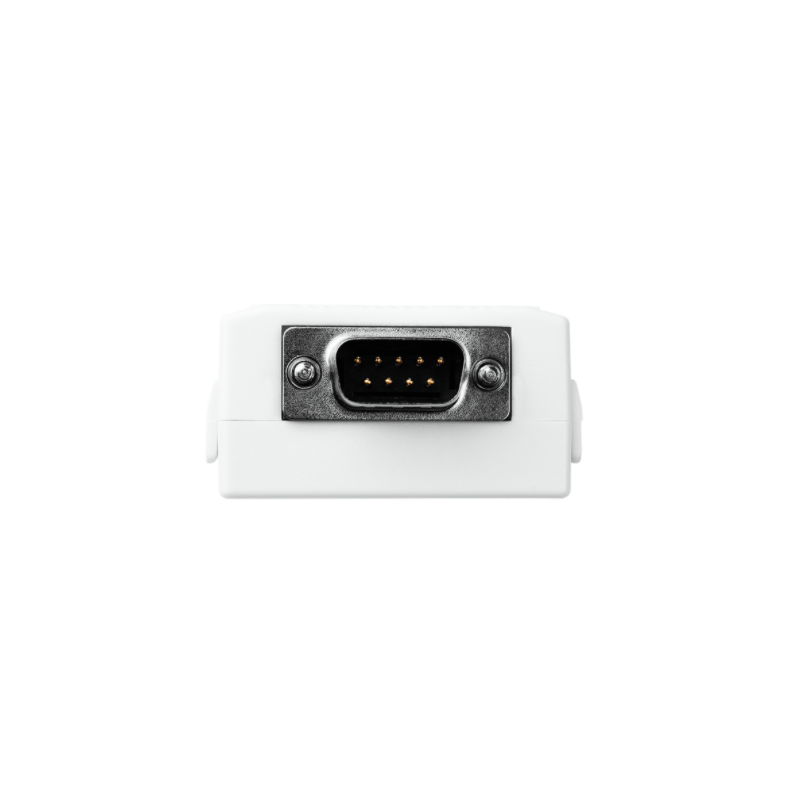

RS232 Serialport via DB9 male
Power supplied from PoE
can be powered from 12 - 48VDC / 1.7 watts
Short Power Jack Pigtail Cable included
Purchase Power supply, not included

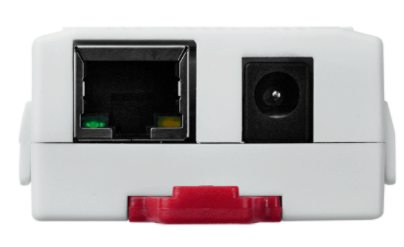

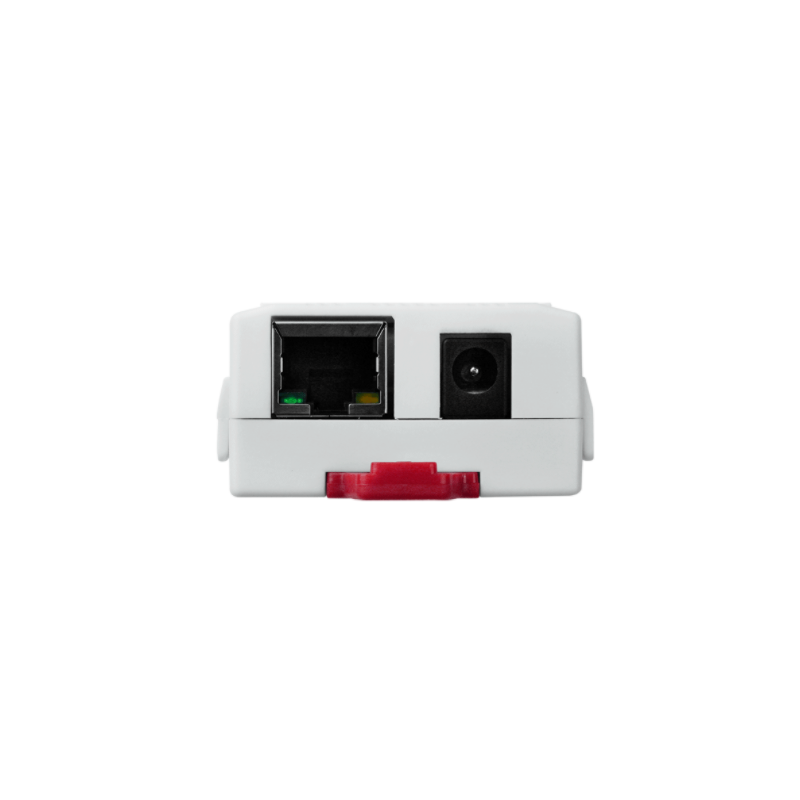

1 x RJ45 with PoE input
DIN mount
Operating temperature: -25 - + 75 ° C
Dim: 90 x 52 x 27 mm
Eth1Ser-PoE-I is a serial-to-Ethernet device servers designed to add Ethernet and Internet connection to any RS-232 device and to eliminate cable length limitation of older serial communication. By using VXCOMM driver / utility, the built-in COM port in Eth1Ser-PoE-in series can be virtualized to a standard PC COM port in Windows. Therefore, users can access or monitor serial devices transparently over the Internet / Ethernet without software change.
Eth1Ser-POE-in the device servers can be used to create a parlor application (as well as serial bridge or serial tunnel) and then can direct data over TCP / IP between two serial devices, which is useful when connecting Mainframe computers, servers or other serial devices that do not even have Ethernet capacity. By virtue of its protocol additivity and flexibility meet Eth1ser-Poe-in the requirements of virtually all network-activated applications.
DHCP minimizes configuration errors caused by manual IP address configuration, such as address conflicts caused by the assignment of an IP address to more than a computer or device at the same time. Eth1Ser-POE-I supports the DHCP client function that enables Eth1SER-POE-I to easily get the required TCP / IP configuration information from a DHCP server. Eth1ser-PoE-I also contains a UDP responder that transmits its IP address information in response to a UDP search from VXCOMM Utility, making local control more efficient.
Mains adapter - switch mode type
110-240 VAC to 12VDC/1.5A
DC plug: 5.5/2.1 mm
1 meter cable
AC / DC power supply for DIN rail mounting
100-240V AC, 50 / 60Hz, 1.1A
Output, 24V, 1.7A (40 Watt)
Screw terminal
Adjustable output voltage
Short-circuit, overload and surge protection
Compact dimensions: 40 x 100 x 90 mm
Working temperature: -20-70 ° C
AC / DC power supply for your rail mounting
AC Input: 180 - 500VAC
Effect: 60W
Output voltage: 48V / 1.25A
Screw terminal
Adjustable output voltage for 48 to 57VDC
Working temperature: -30 - + 85 ° C
target: 125 x 102 x 32 mm (H, D, B)
External COM port over Ethernet and Internet
RS232/422/485
Atop SE5201-DB Serial Device Server
10/100Mbit Ethernet.
Serial port via DB9 male connector
Supports TCP Server/Client, UDP, Virtual COM and Tunneling modes
Power is supplied from 9 - 30VDC or 5VDC (power jack)
Power supply not included
DIN kit (option)
Dimensions: 65 x 78 x 28mm (without wall bracket)
Dimensions: 88.5 x 84 x 27.8mm (with wall bracket and DB9 port)
External COM ports via Ethernet and Internet
Compact and but finding room for
Socket Modes: TCP Server / TCP Client / UDP
Windows Utility for Configuring Multiple Device Servers
Supports 10 / 100m Ethernet
2 x DB9 male
SNMP MIB-II for Network Management
Power supply included
16 Ports RS232 Serial Port Server
Universal Serial Device Server
MOXA NPort 5610-16
19 "Rack Mount
2 COM ports over Ethernet, Internet
Each COM port can be RS232 or RS422 or RS485
RS232 Pin 1 - 8: DCD, RXD, TXD, DTR, GND, DSR, RTS, CTS
RS422 / RS485 4-W: Pin 1 - 5: TXD +, TXD, RXD +, RXD, GND
RS485 2-W: Pin 3 - 5: Data, Data +, GND
Baud Rate: 50 bps - 921Kbps
Data Bits: 5, 6, 7, 8
Parity: 1, 1.5, 2
Stop Bit: Odd, Even, None, Space, Mark
2 x RJ45 10 / 100mbit
Alarm: Relay output
Supply voltage: 12 - 48VDC 6.5WATT
Web Management
IP Version: IPv4 / IPv6. TCP Server, TCP Client, UDP Client
Virtual Com
Pair Connection
Supporter: XP to Win10, Server 2003, 2008, 2012
Size: 135 x 88 x 32 mm
DIN bracket
