RS232 for RS485 or RS422 Converter, Galvanically Isolated, Baud Rate from 50 - 921.6 Kbit/S, MOXA TCC -100I

Seriel konverter RS422/485 isoleret
  • Seriel konverter RS422/485 isoleret

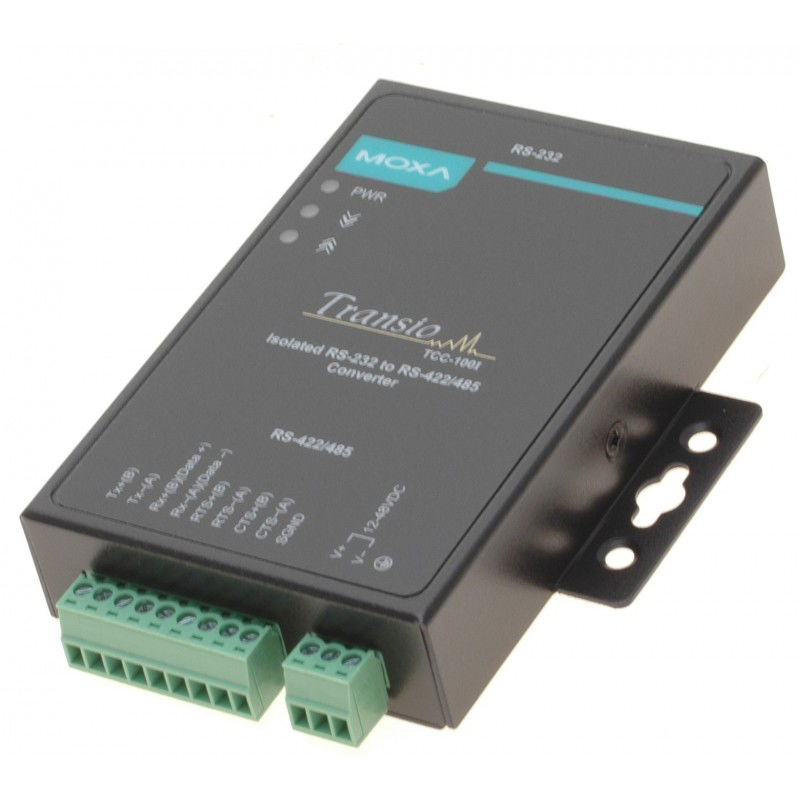

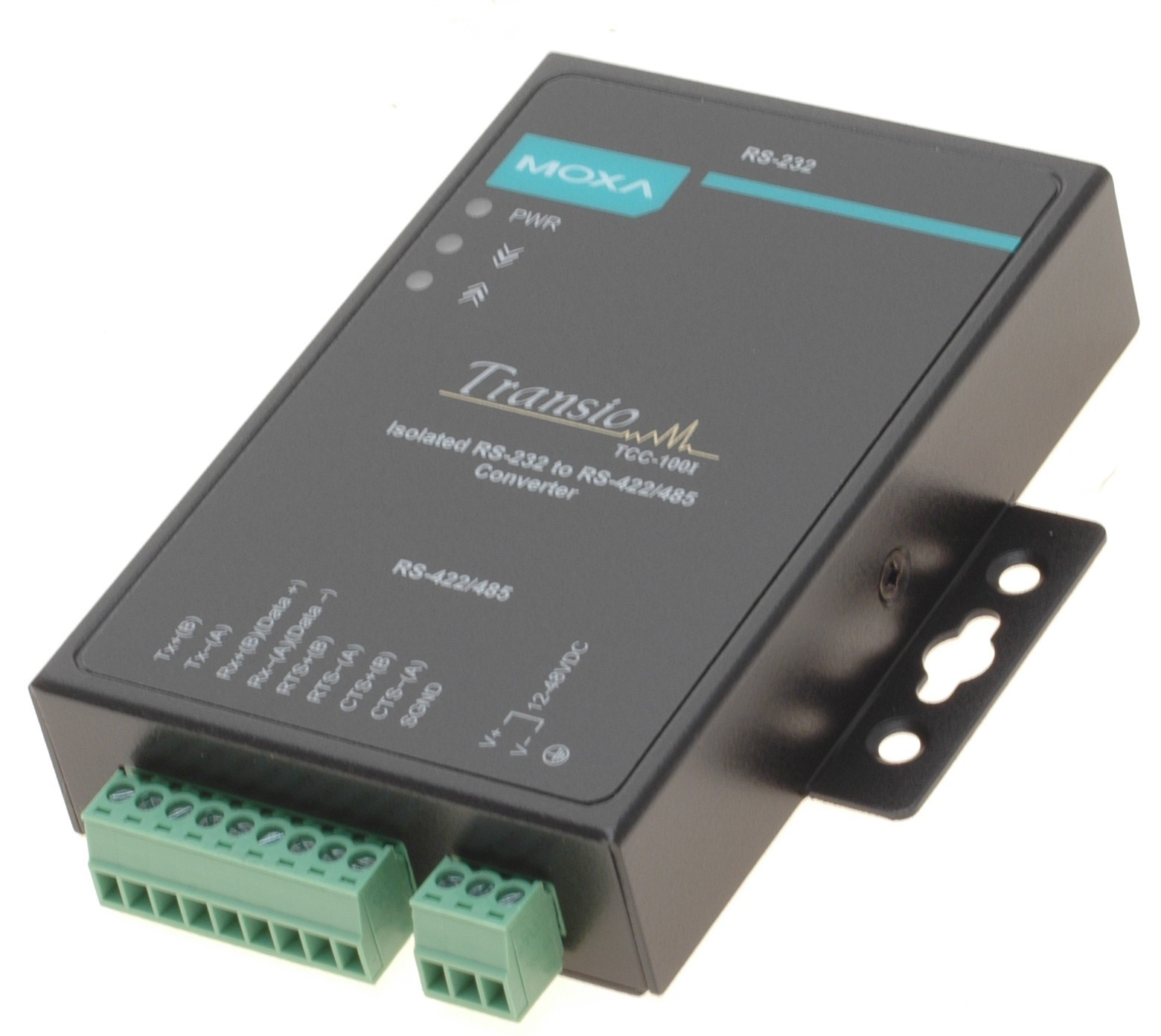

Industrial RS232 to 422/RS485 Serial Converter/ Repeater with 2 KV Isolation, MOXA TCC-100i

RS-232 to RS-422 conversion with RTS/CTS support
RS-232 to 2-wire or 4-wire RS-485 conversion
2 KV isolation protection (TCC-100I/TCC-100I-T)
Wall and DIN-rail mounting
Plug-in terminal block for easy RS-422/485 wiring
LED indicators for power, Tx, Rx
-20 to 60°C operating temperature

CNV232I485M-OPT
1,502.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Specs:

RS-232 Side
Connector: DB9 female
Signals: TxD, RxD, RTS, CTS, GND
RS-422/485 Side
Connector: Terminal Block
Signals: (interface selected by DIP switch)
RS-422: TxD+, TxD-, RxD+, RxD-, RTS, CTS, GND
RS-485-4w: TxD+, TxD-, RxD+, RxD-, GND
RS-485-2w: Data+, Data-, GND
RS-485 Data Direction Control: ADDC® (automatic data direction control)

Serial Communication
Baudrate: 50 bps to 921.6 kbps
ESD Protection: 15 kV
Optical Isolation: 2 kV (TCC-100I/100I-T)

Physical Characteristics
Housing: Metal

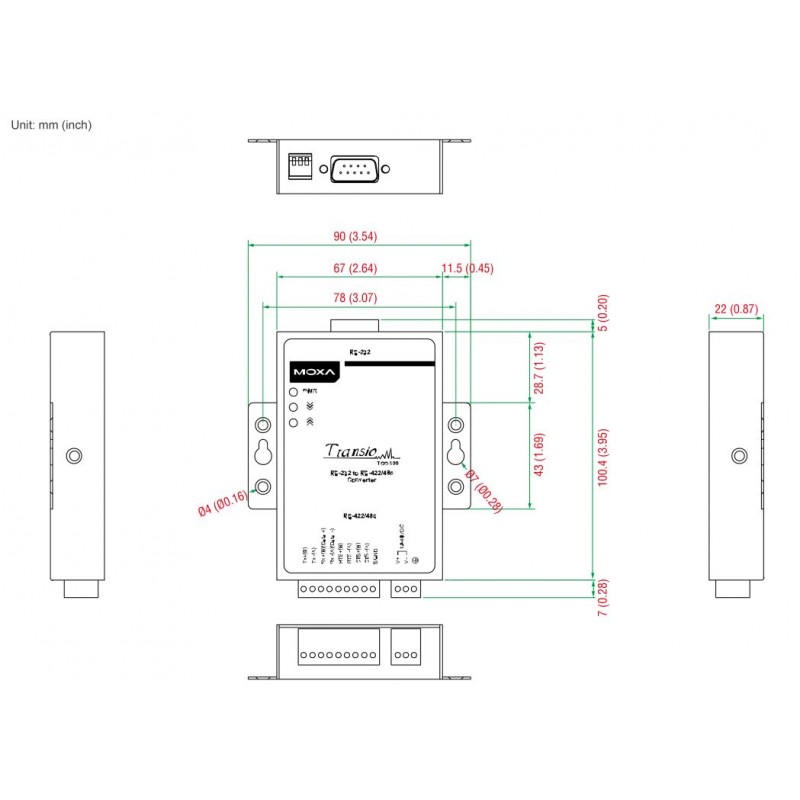

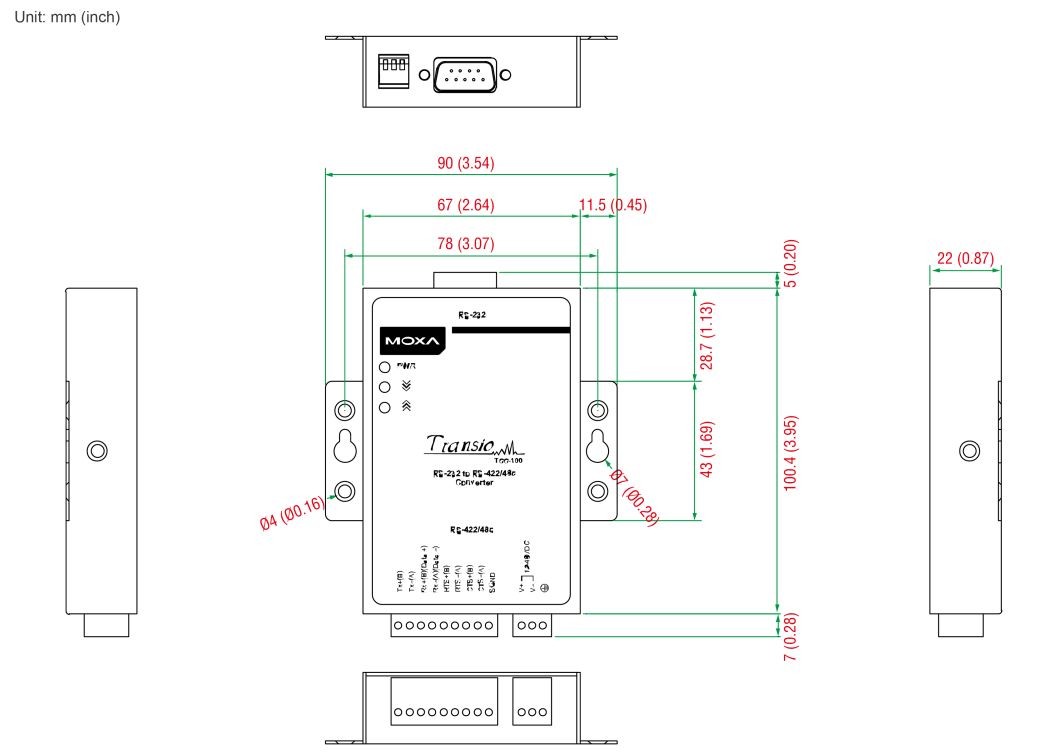

Dimensions: 67 x 100.4 x 22 mm
Weight: 148g

Environmental Limits
Operating Temperature:
Standard Models: -20 to 60°C
Storage Temperature: -40 to 85°C
Ambient Relative Humidity: 5 to 95% (non-condensing)

Power Requirements
Source of Input Power: Power input jack
Input Voltage: 12 to 48 VDC
Power Consumption: 150 mA @ 12 V
Voltage Reversal Protection: Protects
