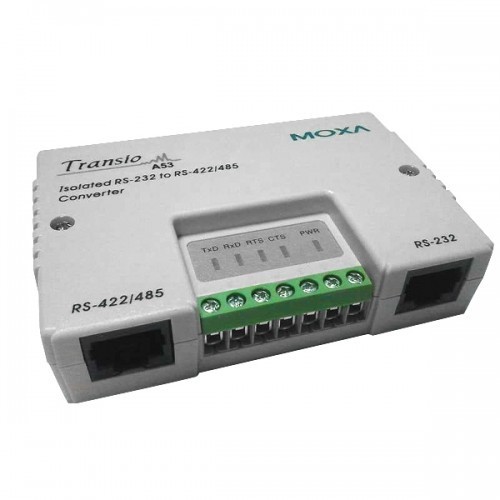

Moxa A53, DB9 W/ADAPTER
Automatisk flowkontrol eller ved RTS control RS485
Type: RS232 til RS422/RS485 konverter
Hastighed: Op til 921,6Kbps (maks. 150 meter)
Afstand: Op til 1,2 km ved 100 Kbps
Andet: DCE eller DTE vælges med omskifter,
Omskiftning mellem halv og fuld duplex RTS,
CTS styrer TX ved multidrop
CNV232I485M+ 2000VDC Isolation
Forsyning:9-30 VDC via skrueterminaler eller
via medfølgende netadapter 9VDC, 200mA
Stik:
RS232: RJ45 inkl. 1,5 meter adapterkabel med RJ45 og DB25 hun
RS485: RJ45 og skrueterminaler
External COM ports via Ethernet and Internet
3-in-1 Serial Port: RS-232, RS-422, OR RS-485
Modes: TCP Server, TCP Client, UDP
Ethernet Modem
Pair Connection
Real Com / Tty Drivers for Windows and Linux
2-wire RS-485 with Patented Automatic Data Direction Control (Addc®)
Built-in 15 kV ESD Protection for All Serial Signal
External COM ports via Ethernet and Internet
Compact and but finding room for
Socket Modes: TCP Server / TCP Client / UDP
Windows Utility for Configuring Multiple Device Servers
Supports 10 / 100m Ethernet
2 x DB9 male
SNMP MIB-II for Network Management
Power supply included
Industrial RS232 to 422/RS485 Serial Converter/ Repeater with 2 KV Isolation, MOXA TCC-100i
RS-232 to RS-422 conversion with RTS/CTS support
RS-232 to 2-wire or 4-wire RS-485 conversion
2 KV isolation protection (TCC-100I/TCC-100I-T)
Wall and DIN-rail mounting
Plug-in terminal block for easy RS-422/485 wiring
LED indicators for power, Tx, Rx
-20 to 60°C operating temperature
1 port LTE serial to Ethernet gateway / modem, RS232 / 422/485
GSM / GPRS / EDGE / UMTS / HSPA / LTE
Supports VPN and virtual comport
Operating temperature -30 -70 ° C
IP30
Supplied via the 12-48 VDC
DIN rail mounting (bracket supplied)
Two 16550 High performance UART (RS232) serial channels
Occupies one PCI or PCIe bus slot
Low Profile PCI Form Factor
Includes Low Profile PCI & Regular size PCI two brackets
Both USB A type and USB pin header connector on board to host connection
One RS232 DB9M and one RS232 10pin RJ45 serial ports on board
Includes one 10pin RJ45 – DB9M Bridge cable for 2nd DB9M port
5VDC Power output from each DB9M Port for POS device use application
2 Jumpers Individually enable / disable 5VDC output for each DM9M Port
On Board Molex mini 4Pin Power connector for sufficient DB9M 5V bus power from PC power supply
Supports 32bit/64bit Windows 7, Vista, XP, 2000, ME, 98SE
