Get a COM port on the PC via the USB port
USB to RS232 7 or 8 bit
RS232 signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Up to 921.6 kbit/s - FTDI chip
DB9 male
With thumb screws
Fits equipment with COM port
USE THE INCLUDED DRIVER!
Signaler | RS232 |
---|---|
Stik | 1 x DB9 hanstik |
The USB to serial converter is ideal for use where a serial port is not available - for example on laptops, notebooks and desktop PCs/servers.
Supports both OHCI (Open Host Controller Interface) and UHCI (Universal Host Controller Interface) Complies with USB specifications 1.1
Cannot be used with dongles (hardware lock for software)
Drivers for Windows 98, 98SE, 2000, XP, Win7, Win10 and Vista are included (32/64bit).
CNV-USB-RS232E also has drivers for MAC.
Complete manual for setting up the converter is included
Does not occupy IRQ, DMA or I/O port - COM ports can be "remapped"
The RS232 signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI.
CNV-USB-RS232E up to 921.6 Kbit/s)

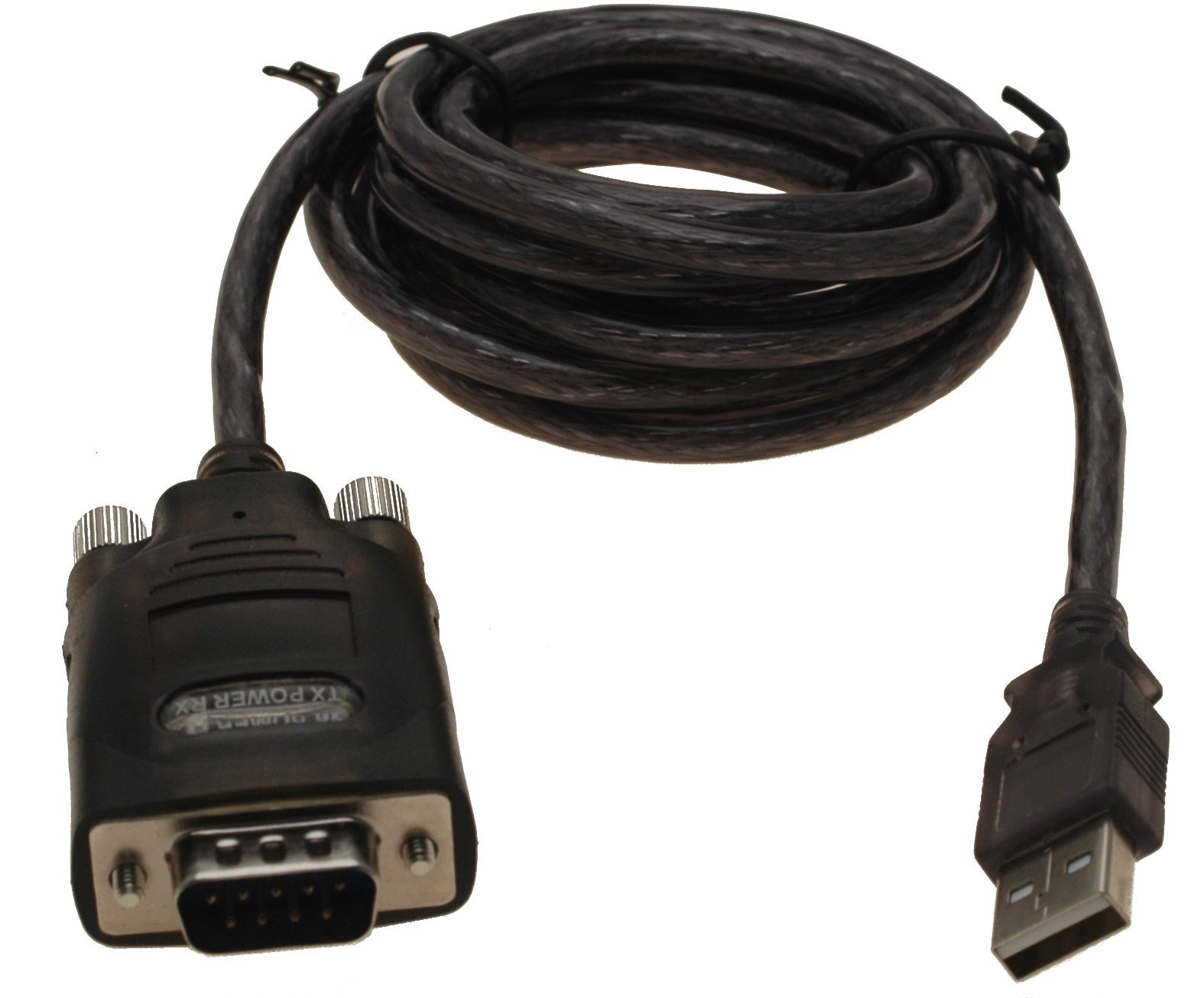

USB 2.0 to RS232 / Serial / DB9 adapter cable
Supports USB2.0 / 1.1 and 1.0
Prolific Chipset
8.7
bit OS Support WIN XP / 2000/98/7 / 10.8, linux and Mac
60 cm cable
RS232 - 08/07 bit
Max. 115.2 kbit / s
FTDI chip - FT232xx.
Does not work with software license dongles
With internal jumper getting + 5VDC on pin 9
1 meter USB cable
Supports Win10 < / p>
Adds eight high-speed RS-232/422/485 serial ports via USB connection
2k bytes transmitter and receiver
Requires no IRQ, DMA, I/O port
RS-232 max bit rates of up to 1 Mbps
RS-422/485 maximum bit rates of up to 10 Mbps
Automatic transmission buffer control for 2-wire RS-485 half-duplex operation
Biasing and terminating resistors installed on board
Supported RS-232 signals: DCD, RxD, TxD, DTR, GND, DSR, RTS, CTS, RI
Supported RS-422 signals: TxD-, TxD+, RxD+, RxD-, GND
Supported RS-485 4-wire signals: TxD-, TxD+, RxD+, RxD-, GND
Supported RS-485 2-wire signals: Data-, Data+, GND
Data Bits: 7/8
Parity: None, Even, Odd, Mark, Space
Stop Bit: 1, 2
Flow Control: Hardware (RTS, CTS), XON/XOFF
Monitor LEDs for TxD, RxD indicating port status
Built-in AC to DC switching power supply, 100VAC to 240VAC
Virtual COM port drivers available for Windows 11, 10, 8.1, 8, 7, Vista, 2003, XP, 2000
Win Server: 2000 up to 2018, Linux, MAC
Industrial quality metal case with DIN bracket for DIN rail mounting
MOXA, 1-port RS-232 USB to serial adapter.
Compatible with USB 2.0 and 12 Mbps USB data rate
921.6 Kbps maximum baud rate for super fast data transfer
Drivers are provided for Windows, WinCE and Linux
DB9 male. USB2.0 with 80cm cable
LEDs for displaying USB and TxD / RxD activity
15 KV ESD protection for all serial ports
OS support: Windows 11, 10, 8.1, 8, 7, Vista, ME, and XP Windows Server 2022, 2019, 2016, 2012 R2, 2012, 2008 R2, 2008, 2003, 2000, and NT
Få en COM-port på PC via USB porten
MOXA USB to RS232/422/485 converter.
Kompatibel med USB 2.0
Software selectable RS232, RS422, 4-wire RS485 and 2-wire RS485
Certified drivers for Windows, WinCE 5.0 and Linux
15 KV ESD protection
Supporting Win10
