Data Logger LAN / Wifi / BT

Residual sale

2 channel temperature logger with external sensor
Temperature sensor: -40 - + 140 ° C
Freedding temperature: -40 - + 80 ° C
1 x RJ45 Ethernet
1 x Power Jack 3.5 / 1.5 mm 6VDC

Wireless Temperature and humidity logger with WiFi, Bluetooth, USB
Battery operation from 10 days (one measurement per minute auto-upload)
Battery operation up to 1 year (1 measurement per hour auto-upload)
longer battery operation of Bluetooth turned off during the logging
2 x 8,000 measurements in memory with the date and time stamp
external temperature / humidity sensors
temperature: 0 - + 55 ° C
humidity 5 - 95% RH
Accuracy: +/- 0.5 ° C
Accuracy: 1% RH
sensor response time: ca. 7 minutes
Free Cloud service: TD WebStorage
LCD display shows current measurements
PC software: tools and presentation included
USB port
Dimensions: 78 x 58 x 26 mm
Battery type: AA

Advanced Controller with logging
With slot for internal I/O expansion module, A/D, D/A, D/I, D/O, relay
Program with simple logic functions - WISE (Web Inside Smart Engine)
Logic functions with IF-THEN-ELSE logic
Supports SNMP, SMTP, FTP, MQTT, Modbus / TCP / RTU and DCON
Ethernet 10/100 / 1000Mbit
Setup via the built-in Web server
1 x RS232 port
2 x RS485 port
Supply voltage: 12 - 48VDC

Multi input data logging for up to 70000 login
10/100 Mbit Ethernet
Password protected, web-based configuration and control
4 digital inputs, compatible with S0 pulse interface
6 analog inputs with 0 / 10V and 0 / 20ma
Modbus RTU interface for up to 24 sensors (registers)
Up to 24 channels for monitoring
Up to 24 Independent Alarms
SNMP V.2 Support - SNMP Trap - Alarm Alerts
HTTP and SNMP port change - HTTP API commands
Periodic HTTP post of XML / JSON Status files for client server systems
Modbus TCP / IP support
Dynamic DNS with dynns, no- IP and DNS-O-MATIC Support
NTP protocol support
supply voltage: 10 to 32V DC

Current / current data logger of Wifi
16-bit 4-20mA to-digital converter
With temperature compensation to 8 Megabyte memory to log data
USB, RS232 and WiFi, automatic baud rate up to 115.2kbit
Input ranges (4-20mA, 0-50mA version)
Battery operation - 10 year battery
, if you acquire: Software for configuring, downloading, graphing, analysis and alarm reporting (not included)
Configurable controls the alarm / surge control
measurement speed of from 20 milliseconds (channel 1) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion

Spændingsmålings data logs of Wifi
16-bit 0 - 20Vdc / 0 - 5VDC to-digital converter
MODBUS TCP (MODBUS TCP Server) to 8 Megabyte memory to log data
USB, RS232 and WiFi, automatic baud rate up to 115.2kbit
Input ranges (4-20mA, 0-50mA version)
Battery operation - 10 year battery
, if you acquire: Software for configuring, downloading, graphing, analysis and alarm reporting ( not supplied) Configurable
controls the alarm / surge control
measurement speed of from 20 milliseconds (channel 1) to 12 hours
Robust aluminum housing
coated printed circuit board for protection against moisture, corrosion

8 channel data logger about Wifi, USB, RS232
16-bit A / D converter in data logger failed
With cold-junction temperature compensation to 8 Megabyte memory to log data
Wifi, USB and RS232 automatic baud rate up to 115.2kbit
Battery operation - 12 year battery
, if you acquire: Software for configuration export, plotting, analysis and reporting (not included)
Configurable alarm controls
measurement speed from 20 milliseconds (1 channel ) to 12 hours
Robust aluminum housing
coated printed circuit boards for protection against moisture, corrosion
Dimensions: 88 x 65 x 24mm
Weight: 200 grams

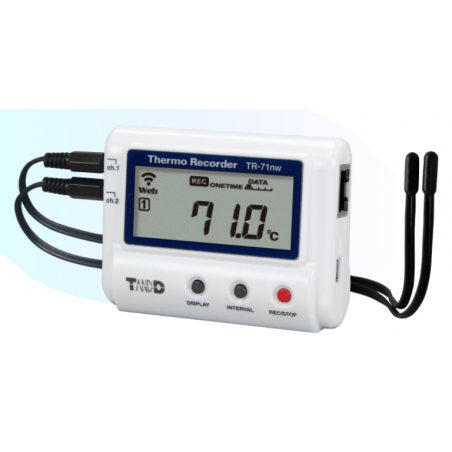

Wireless Temperature Logger with Wifi, Bluetooth
Battery operation from 10 days (1 measurement per minute auto-upload)
Battery operation up to 1 year (1 measurement per hour auto-upload)
Longer battery operation with Bluetooth turned off during logging
2 x 8,000 measurements in memory with Date and time stamp
2 pcs. external thermistor sensors
Accuracy: +/- 0.3 ° C at -20 - + 80 ° C, +/- 0.5 ° C up to 110 ° C
Measuring solution: 0.1 ° C
Sensor response time: approx. 75 seconds
Free Cloud service: T&D WebStorage
LCD display shows current measurements
PC software: tools and presentation included
USB port
Dimensions: 78 x 58 x 26 mm
Battery type: AA
Free T&D WebStorage Cloud Service

Wireless temperature logs with WiFi, Bluetooth
Battery operation from 10 days (1 measurement per minute Auto-Upload)
Battery operation Up to 1 year (1 measurement per Time Auto-upload)
Longer battery operation at Bluetooth Off during logging
2 x 8,000 measurements in memory with date and timestamp
acquisition external thermocouplers (K, J, T, E, S, R)
accuracy: 0.1 ° C / 0.2% (S and R )
Feeling Response Time: Sensor FREE
Free Cloud Service: TD WebStorage
LCD Display Displays Current measurements
PC software: Tools and presentation included
USB port
Dim: 78 x 58 x 26 MM
Battery type: AA

Web server for log-mxxx series
Supports up to 100 data loggers
Displays real-time log data
Displays logger status
On-line logger Configuration
log data is automatically downloaded
Send e-mail / SMS alarm at cross-border
smartphone / tablets with web browser can display log data
access with password log-in

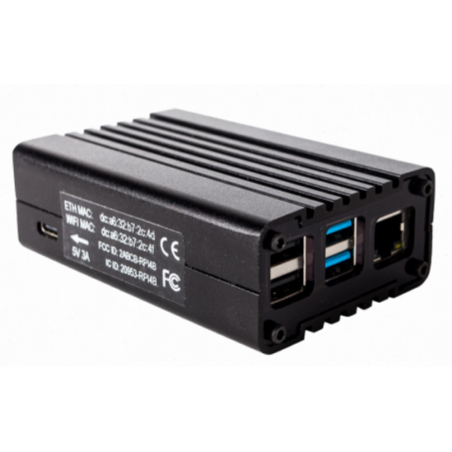

Web browser access to your data loggers
e-mail and SMS alarms at cross-border
with LAN and WiFi
4 x USB ports for data loggers
with USB Hub Supports up to 10 Data loggers
50GB flash memory for log data
Automatic log data Real-time log display
Good graphical cutting surface and data export
Power supplies connected data loggers

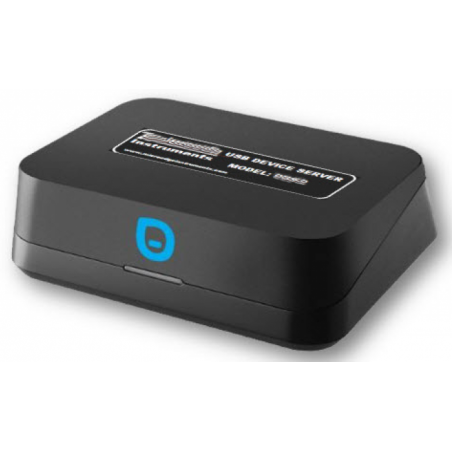

USB LOG Mxxx Device Server for data acquisition
Connects LOG Mxxx data loggers to Ethernet
Transferring Log data to PCs with LOG SiteView SW
Real-Time Data-view
Supports transfer via Internet and Ethernet
Up to 5 LOG Mxxx can be connected via USB HUB
Up to 5 clients can receive LOG data while
access is password protected
Powers LOG Mxxx with excitement
Dimensions: 110 x 100 x 38 mm
Supply voltage: 12VDC / 1A (PSU is included)

Wired LAN temperature logs with external sensors
battery operation from 10 days (1 measurement per minute Auto-upload)
Battery operation Up to 1 year (1 measurement per hour Auto-upload)
2 x 8,000 measurements in memory with date and timestamp
2 pcs. External thermistor sensors
Accuracy: +/- 0.3 ° C at -20 - + 80 ° C, +/- 0.5 ° C up to 110 ° C
measuring solution: 0.1 ° C
Feeling Response time: approx. 75 seconds
LCD Display Displays current measurements
PC software: Tools and presentation included
USB port
target: 78 x 58 x 26 mm
Battery type: AA
Free TD WebStorage Cloud Service

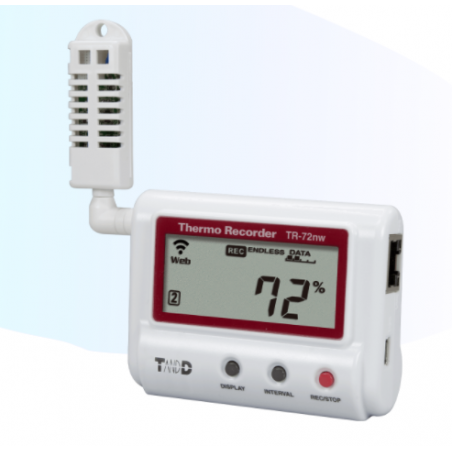

Wired LAN temperature and moisture logger, USB
Battery operation from 10 days (1 measurement per minute Auto-upload)
Battery operation Up to 1 year (1 measurement per hour Auto-upload)
2 x 8,000 Memory measurements with date and time stamp
External temperature / moisture sensors
Temperature: 0 - + 55 ° C
Moisture: 5 - 95% RH
Accuracy: +/- 0.5 ° C
Accuracy: 1% RH
Feeling Response Time: Approx. 7 minutes
Free Cloud Service: TD Webstorage
LCD Display Displays Current measurements
PC Software: Tools and presentation included
USB port
target: 78 x 58 x 26 mm
Battery type: Aa

WEB-based data logger for temperature and humidity sensors
Can be programmed to 3 second sampling time
-55 - + 125°C, -40 - + 80°C 0 - 100%rH
4 pcs. 1-Wire bus for 16 sensors, each
Max. 64 pcs. temperature or temperature/humidity sensors
Max. distance to sensors: 180 meters
Tasks: 50 scheduled, 50 Conditional, 20 override
Email alerts, custom (encrypted email servers, such as gmail)
Real-time clock with NTP server synchronization
No software required
Configurable logging
Graph (logged data)
HTTPS/TLS encrypted
Static or DHCP IP address configuration
Modbus, SNMP, Remote Service, IP filtering
On-site is updated
For DIN rail / wall
Supply voltage: PoE or 9 - 28VDC, 134mA
Dimensions: 98 x 78 x 36 mm

Web based controller with 8 digital inputs
Digital High is: +4 - +26VDC
8 x digital inputs Opto-isolated
Common ground
200Hz Counter - 24bit
Tasks: 50 Schedule Planned, 50 Conditional, 20 Tuffer Terms
Email Alarms by defined conditions
Supports encrypted e-mail servers such as Gmail
RTC with NTP server synchronization
No software required
Graph (Logged data)
HTTPS / TLS encrypted
Static or DHCP IP Address configuration
Modbus, SNMP, Remote Service, IP Filtering
On-site update
Supply voltage: 9 - 28VDC
Dim: 98 x 78 x 36 mm

Compact environmental meter with e-ink display
CO2 Concentration 0 - 9999 ppm
Temperature 0 - + 50 ° C
Relative humidity 0 - 85%
atmospheric pressure 300 - 1100 hpa < Br> Bluetooth (Via App) or Radio (Via Air-Base)
2 AA batteries up to 3.9 years (10 minute intervals)
Dimensions 70 x 70 x 24 mm
small, portable and easy Using
control air quality to reduce Covid-19 infections

Measuring module for analog in / out and digital in / out
16 x analog inputs 16 bit, (± 10V, ± 5V, ± 2V, ± 1V)
2 x analog outputs 16 bit, (± 10V )
32 x digital inputs / outputs Choose with SW
Total Sample Rate 250khz
Galvanically Isolated for LAN
Digital Inputs / Outputs are TTL / CMOS <3 x Counter 32 Bit, Max. 16 MHz
pulse, increment decoder or pulse measurement
TCP / IP Ethernet
power supply from PoE or externally with 12-40VDC
synchronized for real-time
comes with programming examples in VB, C++ Delphi ,. Net
Can be used with NextView, LabVIEW and Profilab Graphic
14 days free trial with NEXTVIEW 4

Modbus RTU Master or Slave
RS485
Memory: 4GB
DIN rail Mounting
Supply voltage: 8 ~ 24VAC / 12 ~ 35VDC
Power consumption: 3.5W
galvanically isolated
Software for Windows included
Integrar Web server
