Web server software for log-MXXX data logger series. Supports up to 100 data loggers. Real-time log view

Web server for log-mxxx series
Supports up to 100 data loggers

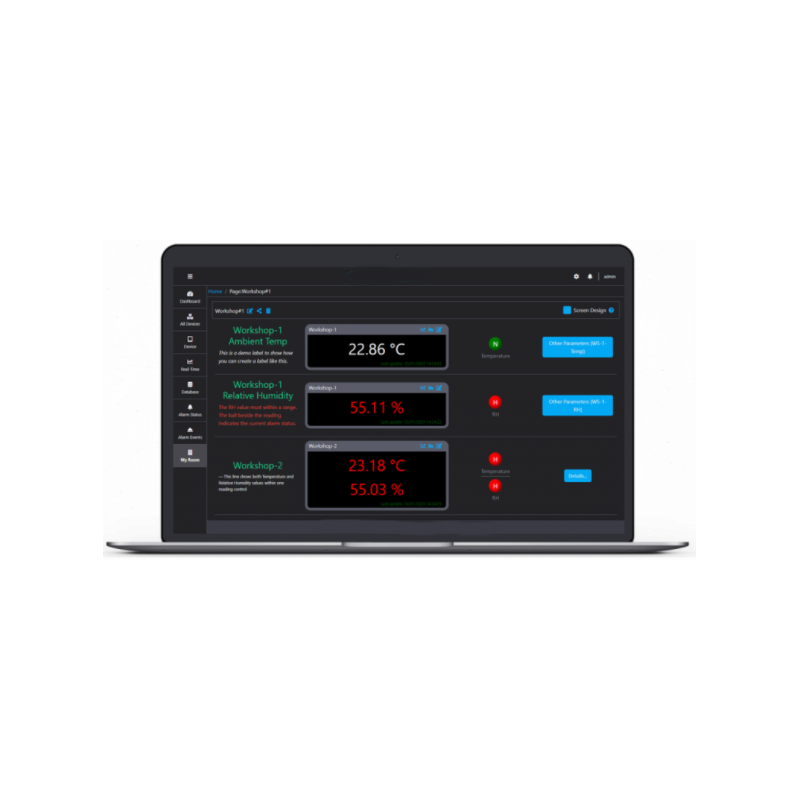

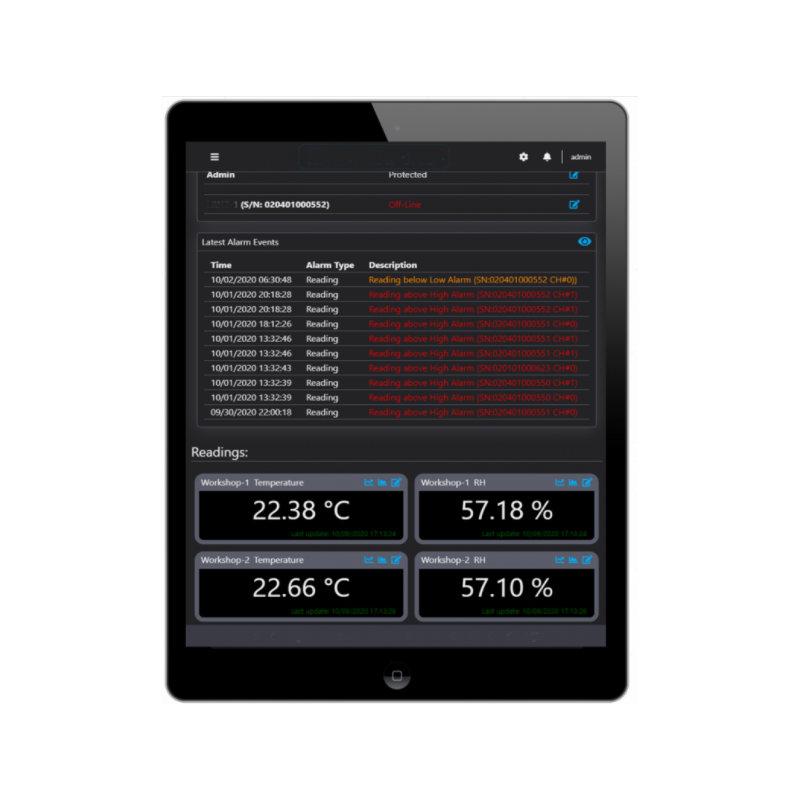

Displays real-time log data
Displays logger status
On-line logger Configuration
log data is automatically downloaded

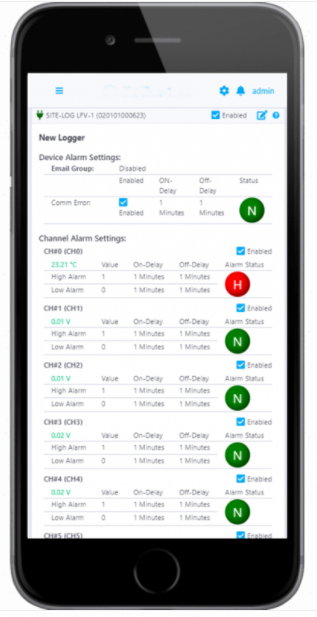

Send e-mail / SMS alarm at cross-border

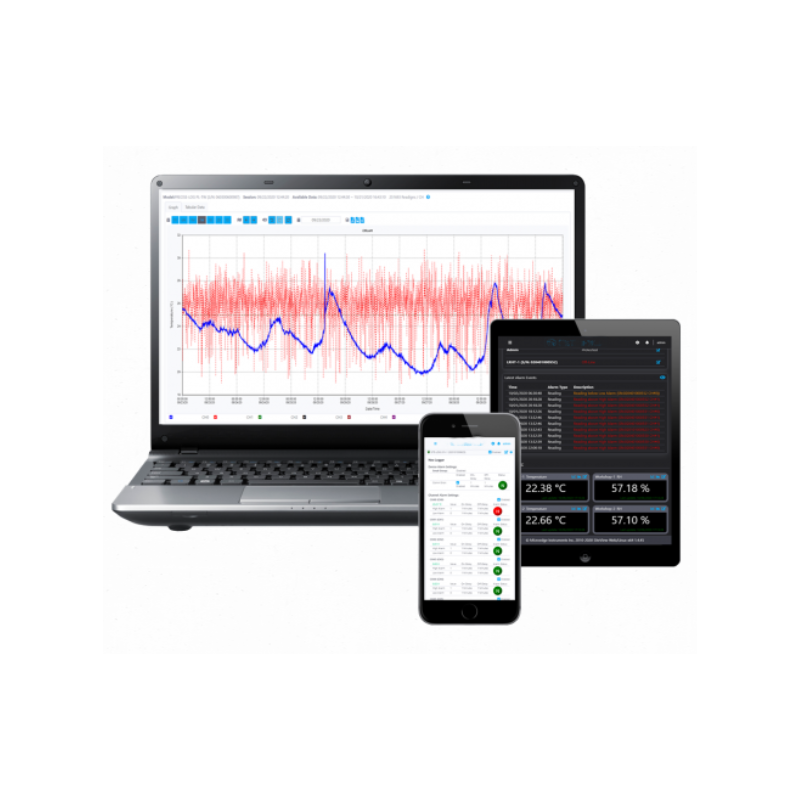

smartphone / tablets with web browser can display log data
access with password log-in

LOG-SITEVIEW-WEB
8,879.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Log-SiteView Web is Web server software that can run under most popular operation systems including Windows, Linux and Macos. It can accommodate data loggers and USB-MXXX type servers and brings them online. You no longer need any data loggers back to the office for download. The system automatically downloads data. If there are any readings beyond the alarm thresholds, the system will send the alarm messages via e-mail. No software needed to see what happens to your target location. Just open a web browser from your smartphone, tablet or laptop to see the complete system
