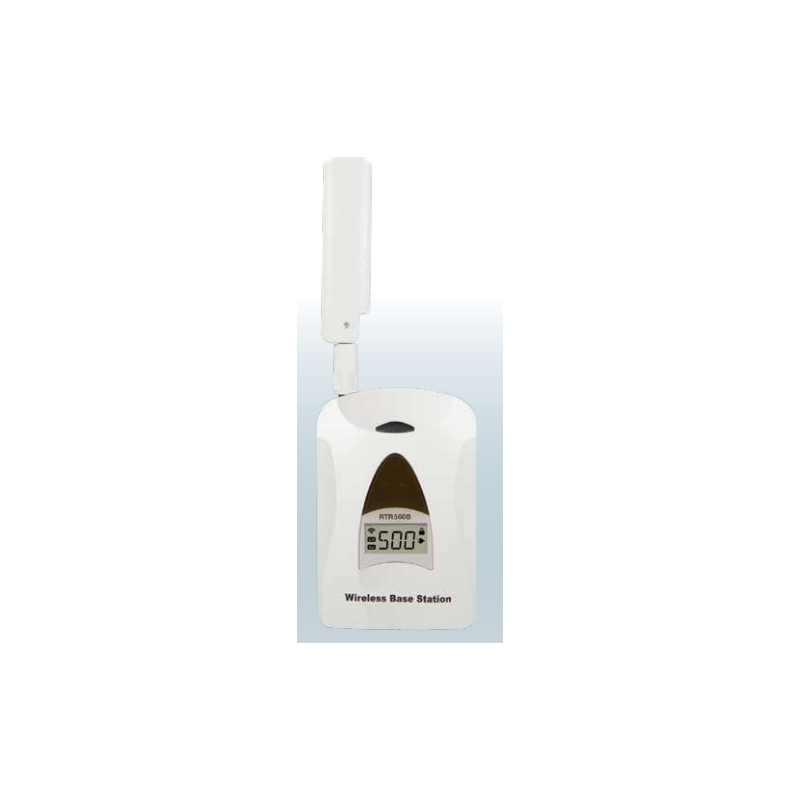

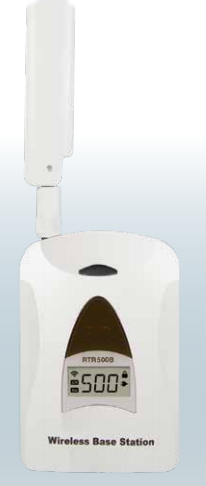

Log data collector wireless loggers. Battery-powered radio-relay station. Setup docking device with USB to PC.

Data collector for wireless data loggers
Repeater - Radio relay station provides greater range
Radio distance to Dataloggers is approx. 150 meters
Radio frequency is 870MHz
Battery operation as repeater (Radio relay station) for 6 months.
Automatic repeater function
Wireless Data Collector from Dataloggers.
Data is transferred to PC via USB
Bluetooth
Has docking holder for setting up Datalogger functions
Operating temperature: -10 - +60°C
Dimensions: 96 x 65 x 25 mm
Weight: 70g
Only for T&D Dataloggers

LOG-WL500M
2,706.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

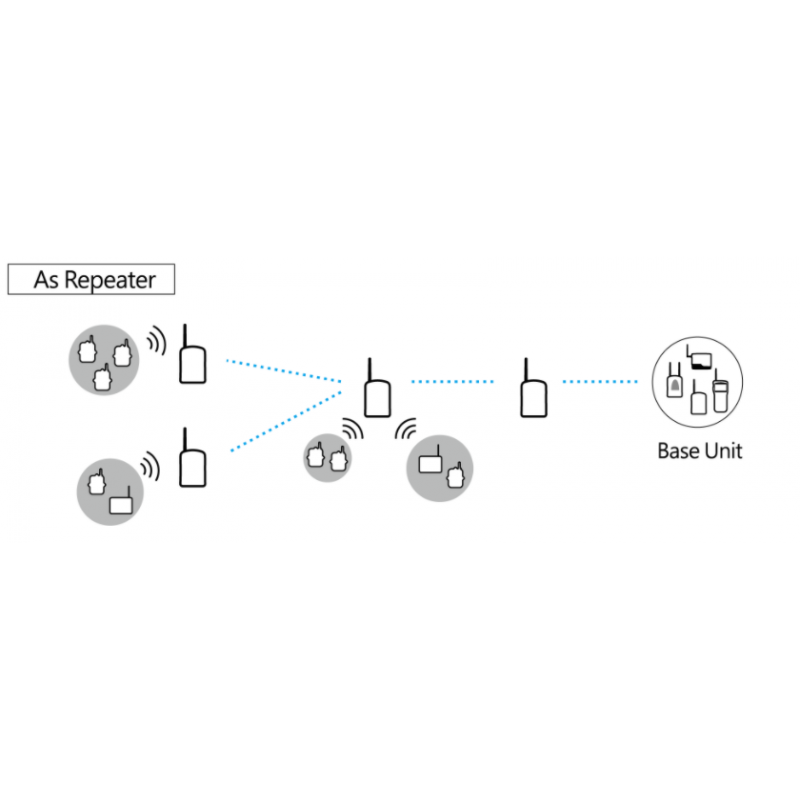

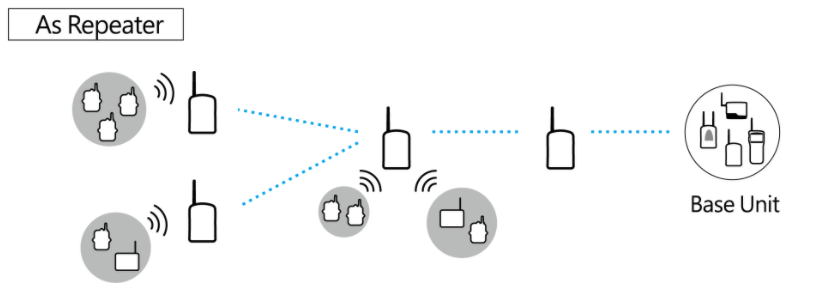

The LOG-WL500M series allows you to mix and match a variety of wireless radio communication loggers with different data collectors to meet your needs. The LOG-WL500M is a USB data logger that can be connected directly to a PC for data transfer and management via our Windows software. It can also function as a Repeater (radio relay station) to extend the wireless radio communication range between loggers and base stations in the LOG-WL500 series.

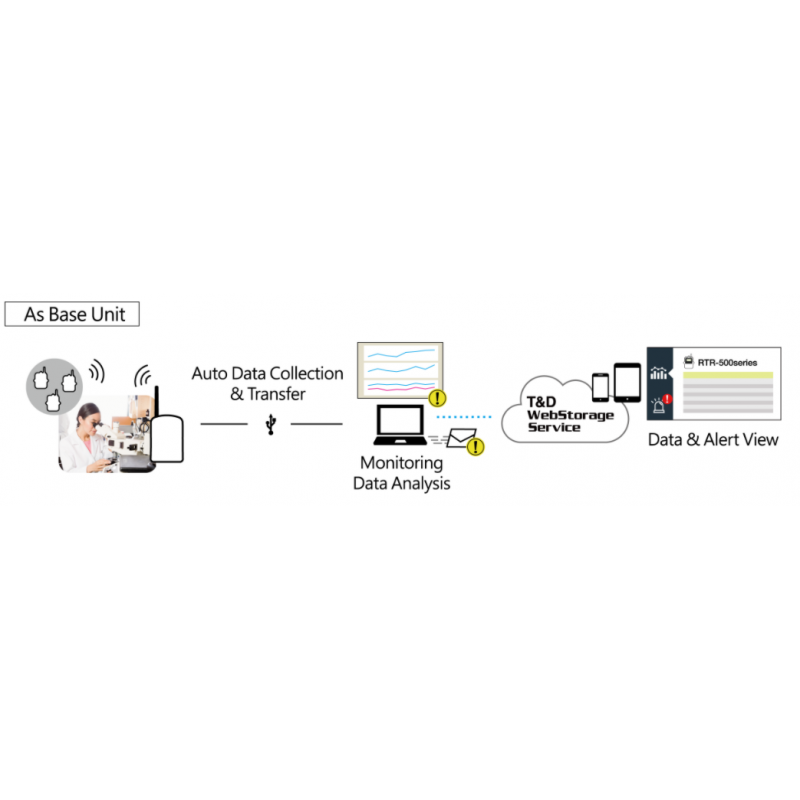

The LOG-WL500M can be combined with any of our data loggers in the LOG-WL500 series. This data collector is designed as a base station for constant USB connection to a PC. Use our software to monitor current readings as they are received from loggers. Because data can be downloaded and saved directly to your PC, the LOG-WL500M is perfect for closed environments where no network is available or where the use of the Internet is prohibited.

It connects to your PC on a network automatically to send log data to an FTP Server or email address as well as send warning report emails. It can also be used with our free T&D WebStorage Service, making it easy to monitor data, view graphs and check alerts from any PC or mobile device web browser.

Andet
Kan også bruges som repeatermodul og giver derved op til 100 meter ekstra rækkevidde
Forsyning
Batteri 2 stk. AA eller ekstern med 6 VDC
Type
Repeater og dataopsamler med USB interface
