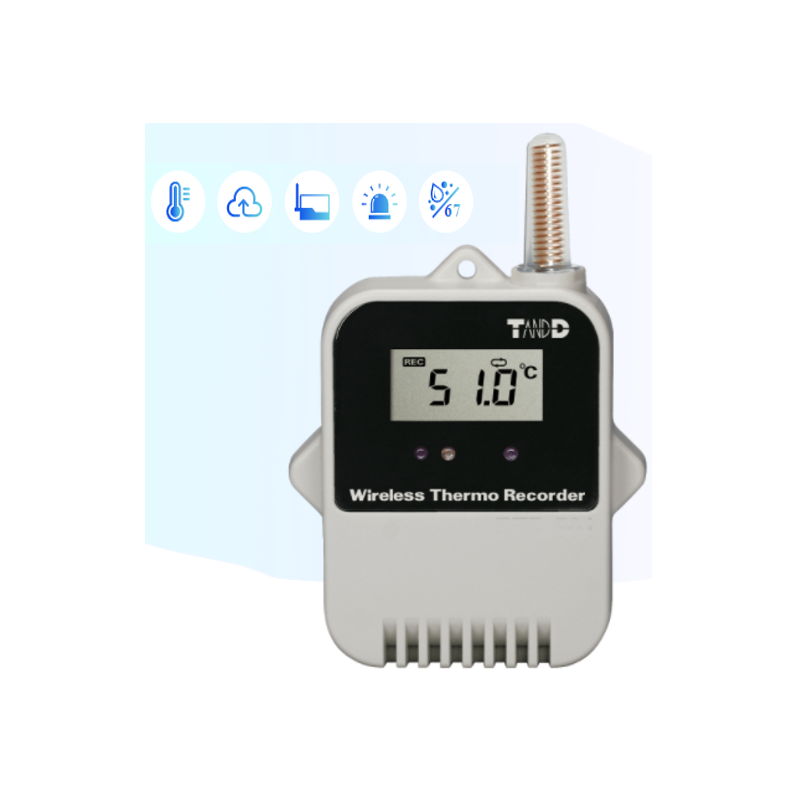

Wireless Temperature Logger with memory
Bluetooth APP - T&D Thermo
Sending measurement data to Data Collector (Base Station) at 870MHz
Distance between Data Logger and Data collector up to 150 meters
Battery operation up to 10 months at an upload per day
Data Logger is not on-line
16,000 readings in memory with date and time stamp
Accuracy: +/- 0.5°C
Free Cloud service: TD WebStorage for Data collector
LCD display shows current measurements
PC software : tools and presentation included
Data Logger setup with Data collector Optical
Dimensions: 62 x 47 x 19 mm
Fixed antenna: 24 mm
Battery type: LS14250 x 1
LOG-WL501 series allows you to mix and match a variety of wireless radio communications Loggers with various base units or data collectors to meet your needs. Logged data can be automatically sent via network or mobile communications to be stored in the cloud storage or to a specific location.
LOG-WL501 with its compact, robust design and internal temperature sensor can be used in environments from -40 80 + 80 ℃ and has an IP67 waterproof rating (immersed).
lOG-WL501 loggers have a wireless radio communications space of compatible base units of up to 150m.

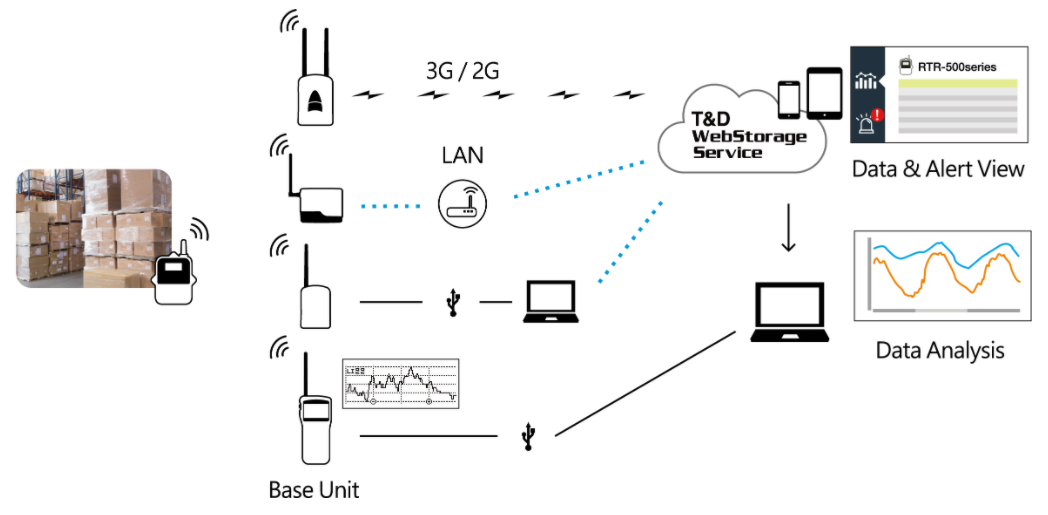

Data can be transferred from a logger to a base device, and then automatically uploaded to the cloud storage, or stored at a particular location. Data can also be checked on your PC monitor or on site with one of our compatible data collectors.
LOG-WL501 Loggers comply with EN12830 standard for temperature recorders for storage and distribution of chilled and frozen food.
Its strong, compact design makes it perfect for temperature control during transport of not only food, but also pharmaceutical products and precision equipment.
Battery for log-wlxxx series
in normal battery change Log-data not
RS485 / RS422 / RS232 converter for Meter-Bus meters, actuators, etc.
Supports up to 100 Meter-Bus meters (slaves)
Selecting the serial port, only one can be selected to be active
2 x Baud rate (M-bus and COM port can be selected at different speeds)
Baud rate: 300 to 115,200 bps
Transparant data - no protocol conversion
M-bus connection is 2-wire , max. 350meter.
larger distance up to 5km requires a number of M-bus repeaters
Supply voltage: 10 - 30VDC, 1.8 - 12Watt
Dimensions: 122 x 72 x 33 mm | Removable terminal blocks
Operating temperature: -25 - + 75 ° C
DIN bracket
Robust plastic housing
1 channel temperature data logger - wireless with Low Energy Bluetooth 4.1
Measuring range -60°C to + 155°C - only temperature sensor
Operating temperature: -40°C to + 80°C - measurement unit + sensor
(-25 to 80°C during wireless communication)
Accuracy is average. ± 0.3°C
Measuring Range: 15 Choices from 1 Sec to 60 Minutes
Option between Endless or Memory is Full
Memory: 16,000 Measurements with Date and Timestamp.
LCD Display, Displays Measurements, warning, battery life, etc.
With Lithium Battery
Dimensions H: 62mm × W: 47mm × D: 19mm
IP67 w/sensor in place.
Sensor is IP68 proof
Battery life: approx. 1 month to 1.5 years
Radio base station retrieves Log data from loggers
base station is a link between loggers and PC
base station data from 100 wireless loggers
Frequency Band Base Station and Data Logger is 870MHz
Up to 150meter - depending on conditions
Greater distance with repeaters (radio-relay stations)
Transfers the log data via GSM 3G GPRS mobile network
USB interface to PC for setup:
base station, connection dock for data Like (Optical )
Protocol: SMTP (POP before SMTP AUTH (login) FTP, SMS
SMTPS (SMTP over SSL)
Temperature: -10 - + 55 ° C
Dimensions: 96 x 66 x 39 mm | Power supplied
only for T&D loggers
Wireless Temperature Logger with memory
Bluetooth T&D APP
For Pt100 and Pt1000 3-wire
Temperature: -199 - + 600°C, +/-0.3°C + 0.3%
Sends measurement data to Data Collector (Base Station) on 870MHz
Distance between Datalogger and Data Collector up to 150 meters
Battery operation up to 10 months with one upload per day
Data loggers are not on-line
16,000 measurements in memory with date and time stamp
Removable external terminal block. Close with O-ring
Free Cloud service: TD WebStorage for Data Collector
LCD display shows current measurements
PC software: tools and presentation included
Data logger setup with Data Collector Optical
Dimensions: 62 x 47 x 19 mm
Fixed antenna: 24 mm
Battery type: LS14250 x 1
