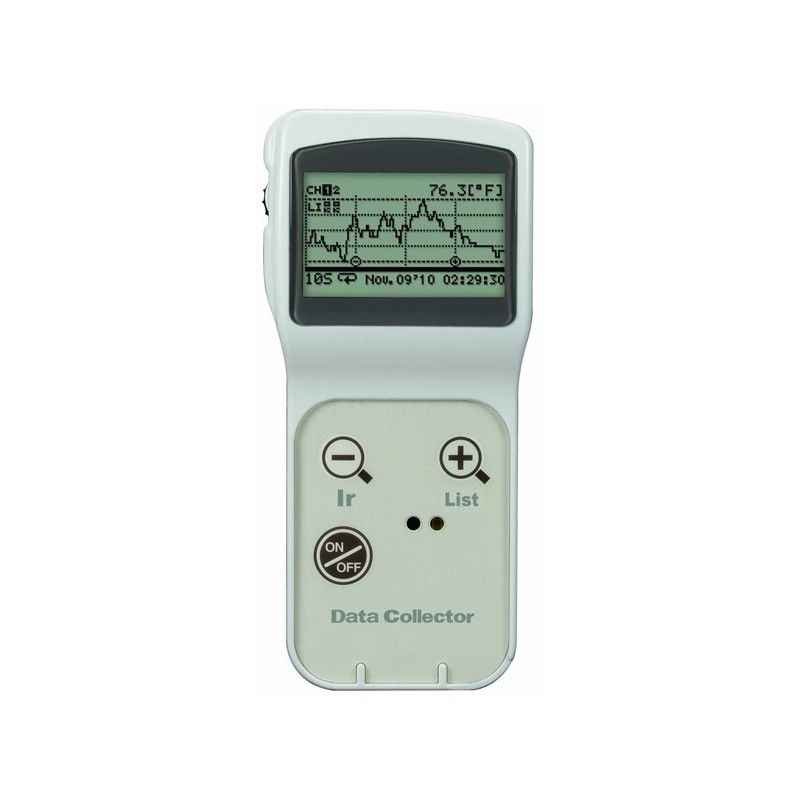

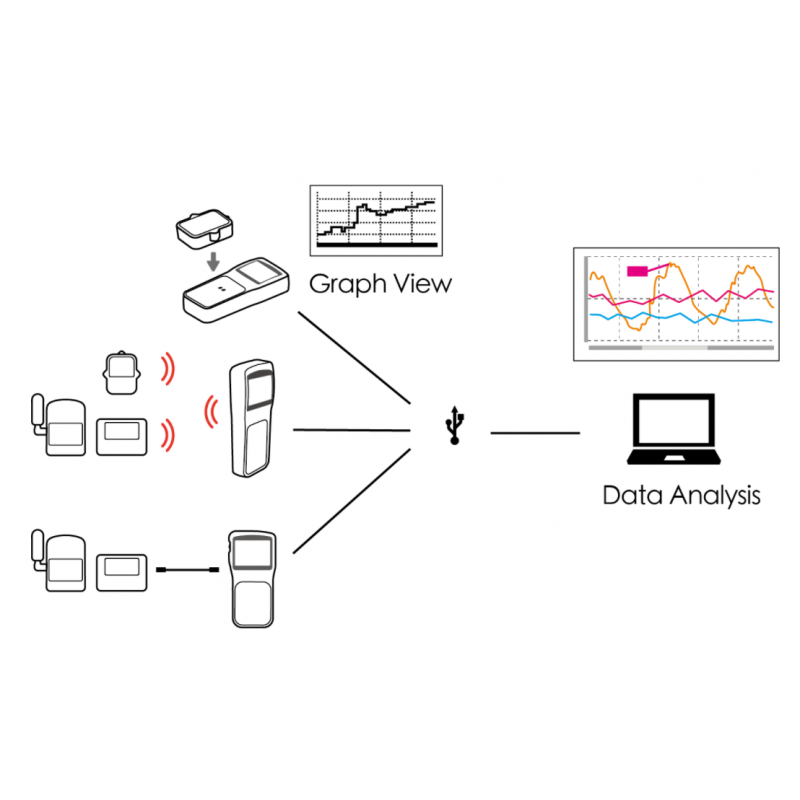

Data collector and programmmer with optically JIG and LCD display to T&D data loggers. USB interface for PC. Battery

Base unit with display and optical communication
Jig for programming T&D data loggers
Jig for collecting stored log data from T&D data loggers
USB connection to PC
Free software for PC
Battery operation - Operating time approx. 100 days
OPTIONAL: AC adapter is acquired 6VDC, 3.5 / 1.5 mm plug
Dim: 125 x 58 x 26 mm
Weight: 90 g

LOG57U-M
4,486.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Base unit with display for programming (setup) and log data collection of data from TD data loggers.
Data transferred to PC via USB

Andet
LOG57U-M har indbygget infrarød port så målinger fra LOG5xS+ kan hentes trådløst
Forsyning
Batteri
Software
Til LOG57U-M medfølger software til Windows XP, Vista, Win7 og Win8
