For SFP GBIC module

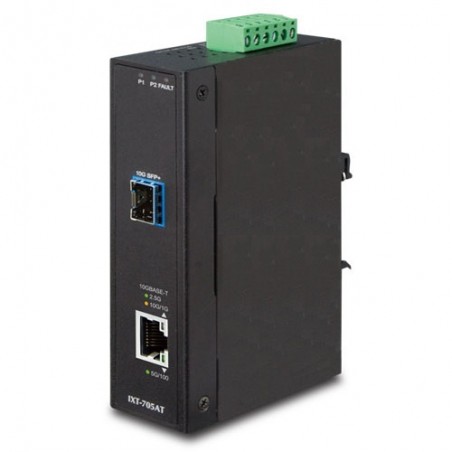

10Gbit fiber the RJ45 Media converter
For Single Mode or Multi Mode SFP module
Extended temperature range
1 x RJ45 10G/5G/2.5G/1G/100M BASE-T
1 x 10GBASE-SR/LR SFP slot
The SFP module is standard with an LC connector
Additional SFP module
Supply voltage: 12 - 48VDC
PSU not included
Operating temperature -40 to +75°C
YOUR bracket

100/1000Mbit fiber media converter RJ45
1 x RJ45 10/100/1000Mbit BASE-T
1 x SFP slot 100 / 1000Mbit BASE-X dual mode
Supports WDM SFP modules (Bi-Directional data 1 on fiber)
WDM SFP module have wavelengths 1310nm and 1550nm
IEEE 802.3 / 802.3u / 802.3ab / 802.3z
IP30 metal housing
DIN rail and wall mounting design
Supply voltage: 12VDC to 48VDC polarity protected
AC supply voltage: 24VAC / 50Hz
PSU not included
Operating temperature: -40°C to +75°C

100 / 1000Mbit Media Converter with extended temperature
1 x RJ45 10/100 / 1000BASE-T
1 x SFP slot 100 / 1000Mbit
SFP module is as standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
Supply voltage: 9 - 48VDC redundant power
Can also be connected to 24VAC
consumption: 2Watt
Power not supplied
Dimensions: 104 x 70 x 30 mm
IP30 metal housing
DIN rail and wall mounting
Weight: 251G
operating temperature -40 to +75°C

Media converter for 100/1000Base-X SFP transceiver
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
10/100/1000Base-TX
24V / 48V DC power input for PoE
Supply voltage can be 24VAC
Mid-span PoE (PSE) (4.5/7.8)
PoE power out is max. 30 Watt
Alarm in case of link failure
For DIN rail mounting

1 x 10/100 / 1000BASE-T RJ45 IEEE 802.3bt PoE ++ output
2 x SFP slot 1000BASE-X and 100BASE-FX TC-dual mode
PoE Power up to 95 watts to PoE port
Provides 54VDC of the RJ45 Ethernet cable for devices with Ethernet PoE port
Automatic detection of IEEE 802.3bt-equipment United Protects devices from being damaged by incorrect installation
Remove Power supply up to 100 meters
IEEE 802.3af / at / bt splitter devices compatible
Layer 2 features
DIP switch: Selecting the standard / Legacy mode
IP30 metal housing
DIN rail and wall mounting
12 - 56V DC redundant power with reverse polarity protection
power supply not included
Operating Temperature -40 to 75 ° C,

Multi-function media converter - has it all!!
Connect 2 fiber networks with different speeds, e.g. 100Mbit with 1000Mbit
Connect 2 fiber networks which are Multi Mode and Single Mode
Media converter with 2 x fiber ports - redundant mode
Media converter with 2 x fiber ports - switch mode
Fiber into port 1 and Fiber on from Port 2 with 1 x RJ45
SFP slot for 100Mbit, 1Gbit, 2.5Gbit SFP transceivers
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Additional SFP modules.
12 - 48VDC redundant and 24VAC
Power consumption: 4.8 Watt
Power supply not included
Dimensions: 135 x 87 x 32 mm
Weight: 505g
IP30
Operating temperature -40 to +75°C
DIN rail and wall mounting

2 x 10/100 / 1000BASE-T RJ45 IEEE 802.3bt PoE ++ output
2 x SFP slot 1000BASE-X and 100BASE-FX TC-dual mode
SFP module is as standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
PoE++ power up to 95 watts of PoE
Provides 54VDC of the RJ45 Ethernet cable for devices with Ethernet PoE port
Automatic detection of IEEE 802.3bt equipment - does not protect PoE equipment at damage
IEEE 802.3af / at / bt splitter devices compatible
DIP switch: Selecting the standard / Legacy mode
DIN rail and wall mounting
12 - 56V DC redundant power with reverse polarity protection Power supply
purchased
Dimensions: 153 x 85 x 55 mm
Operating temperature -40 to +75°C

Top class media converter with 2 fiber ports and 2 RJ45 ports
for redundant network or as Node in networks
suitable where Single Mode must be connected to Multi Mode
full managed with many features
RJ45 10/100/1000Mbit
Modbus TCP - Real Time Monitoring
IEEE1588V2 - Precision Time Protocol - Transparent Time
IEEE 802.1 Spanking Tree Protocol
Port Mirroring - more to one
Loop Protection - Avoid Broadcast Loop
Supports IGMP Snooping
IP Source Guard - Protects against Spoofing
SMTP, Sylog, Trap
with LFP and LLCF - Link Forward Carry Through.
Supply voltage: 9 - 48VDC, 24VAC
Operating temperature: -40 - + 75 ° C
DIN bracket
SFP modules and power supply are to be purchased

Top class media converts. Up to 2.6Gbit Fiber SFP
Full Managed with Many Features
RJ45 10/100/1000Mbit
Modbus TCP - Real Time Monitoring
IEEE1588v2 - Precision Time Protocol - Transparent Time
IEEE 802.1 Spank Tree Protocol
Port Mirroring - More to a
Loop Protection - Avoid Broadcast Loop
Supports Igmp Snooping
IP Sourcs Guard - Protects against Spoofing
SMTP, Sylog, Trap
with LFP and LLCF - Link Forward Carry Through.
Supply Voltage: 9 - 48VDC, 24VAC
Operating temperature: -40 - +75°C
DIN bracket
SFP module and power supply is to be purchased

1 x 10/100 / 1000Mbit RJ45
1 x 100 / 1000Mbit SFP
SFP module is as standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase 100Mbit / Gigabit SFP modules.
POE (PSE) up to 95W
48-56 VDC
IP30 rated
-40 ° C to + 75 ° C
5% to 95% humidity
DIN bracket

Media converter for 100/1000Base-X SFP transceiver
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase additional Gigabit SFP modules.
1 x RJ45 10/100/1000Base-TX PoE+
1 x SFP 100/1000 Mbit
Power supply: 48-56VDC
Additional purchases, if any DC48V/1.25AD
End-span PoE (1/2(+), 3/6(-))
PoE power is max. 36 Watt
DIN rail or wall mounting
Temperature: -40 to +75°C
Dimensions: 30 x 70 x 104 mm
