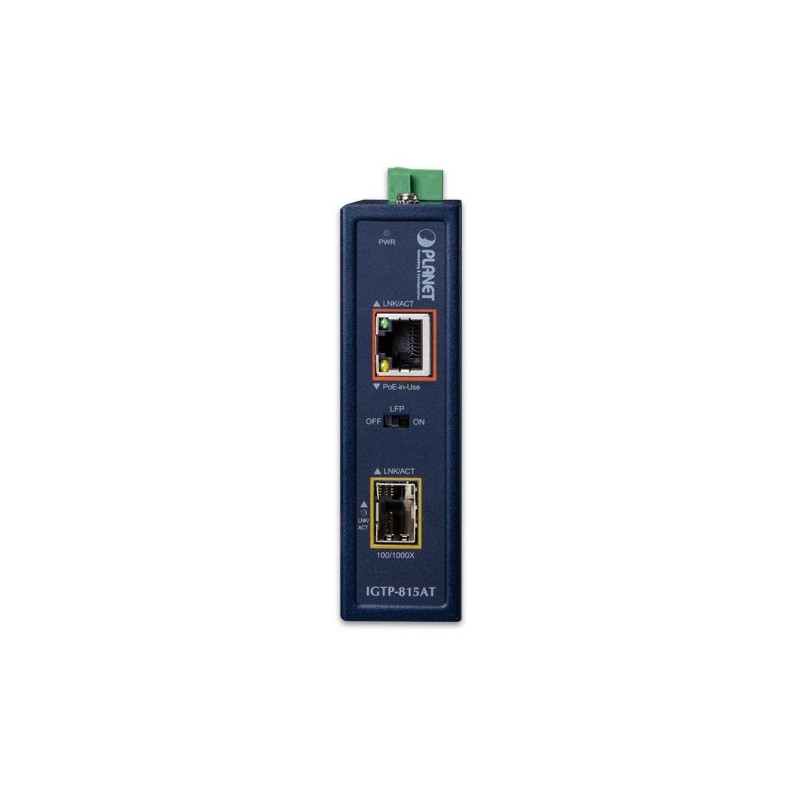

Media converter 100/1000Mbit fiber SFP to RJ45 10/100/1000Mbit. 100/1000Mbit SFP slot, SM or MM PoE+ PSE

Media converter for 100/1000Base-X SFP transceiver
The SFP module is standard for LC connectors, duplex, Single Mode / Multi Mode.
Purchase additional Gigabit SFP modules.
1 x RJ45 10/100/1000Base-TX PoE+
1 x SFP 100/1000 Mbit

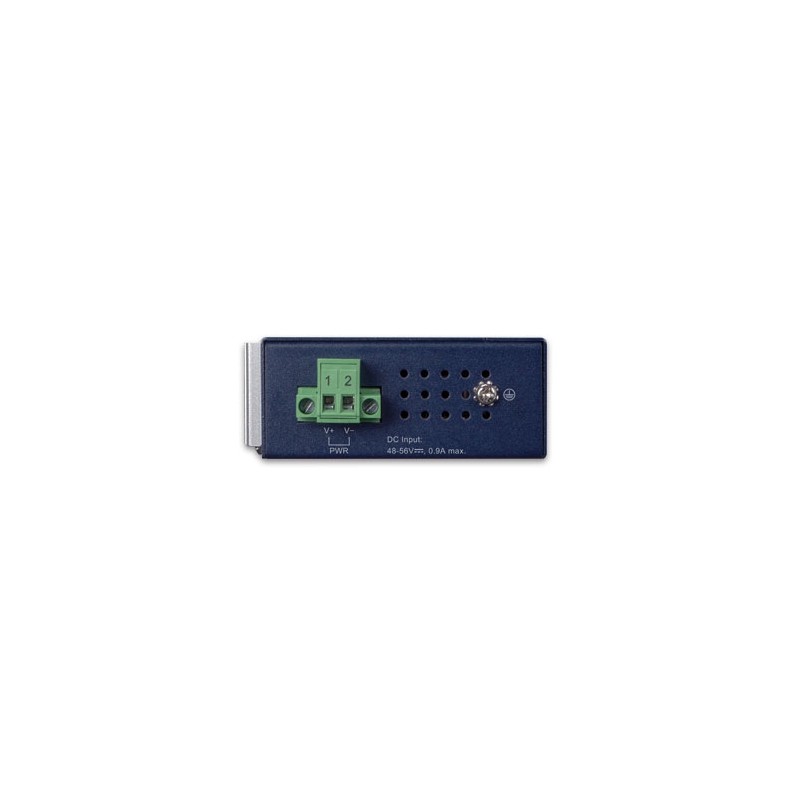

Power supply: 48-56VDC
PSU not included
End-span PoE (1/2(+), 3/6(-))
PoE power is max. 36 Watt
DIN rail or wall mounting
Temperature: -40 to +75°C
Dimensions: 30 x 70 x 104 mm

ETH-RJ45-SFP-P+T
1,402.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

10/100/1000 Ethernet to fiber converter.
For SFP modules and with PoE injector.

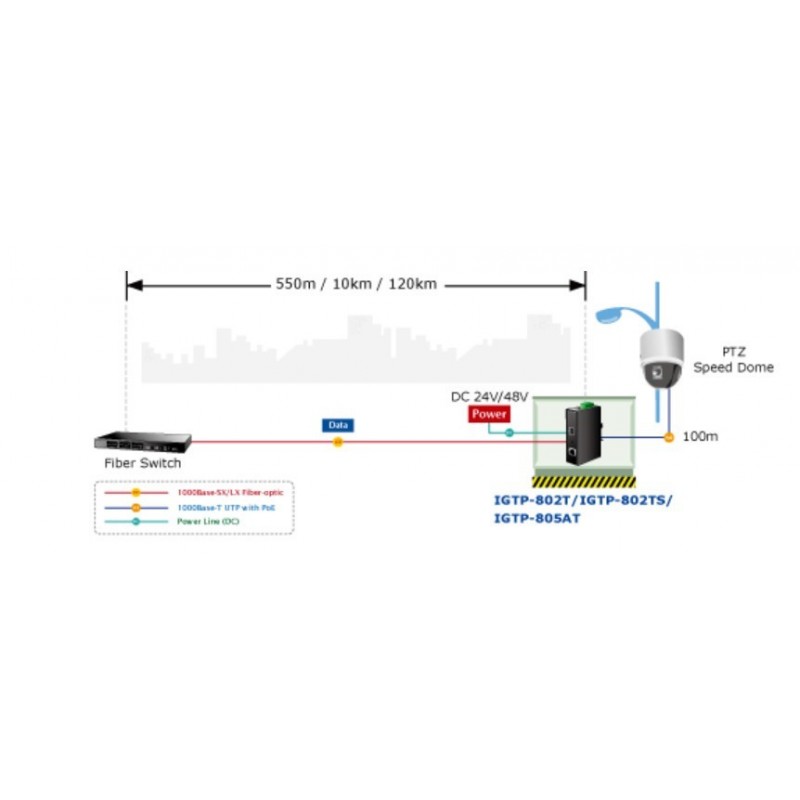

PoE converter designed to meet the increasing need for network equipment that requires higher power, e.g. network cameras with PTZ, moving dome cameras with PTZ, VoIP telephones with color touch screens, wireless LAN access points with multiple channels (IEEE 802.11a / b / g / n)
and other network devices that require higher power to function normally.

Dimensioner
30 x 70 x 104 mm
ESD
6KV DC
IP-Tæthed
IP30
LED
System: Power 1, Power 2 and Fault LED (Green) Fiber port: LNK / ACT (Green) 10/100/1000Base-T port: LNK / ACT, PoE In-use (Green / Orange)
Maks. afstand
RJ45 100m
Montering
DIN-rail kit and wall-mount ear
PoE
Understøtter PoE-effekt op til 36W for PoE-port
Stik
RJ45 hunstik og SFP fiberstik
Temperatur
-40 til +75°C
Type
1-Port RJ-45 interface, auto-negotiation and auto MDI / MDI-X
Understøtter
Understøtter IEEE 802.3at/af af PoE+ standarden, kan levere op til 36 Watt. Ud på ben 1/2 (+), 3/6(-)
Weight
251g
