HMI Panel

HMI Panel

HMI Panels with touch and interface for many external I / O modules. Development tool for building user interface and many useful functions.

Interface can be Ethernet or RS485, Protocols are eg. MODBUS. We are happy to help with advice and guidance.

HMI Panel
There are 9 products.
4.3” Touch HMI Device with RS-232 (3-pin), RS-485, USB, RTC, Ethernet

High resolution Color Touch screen
Poe (power over Ethernet)
RS232 Port, RS485 Bus
USB Download Port
RTC (Real Time Clock)
Gui Design
Free HmiWorks Development Tool
Supports C language and ladder designer
Modbus / TCP, Modbus / RTU and DCON protocol
Size: 126 x 92 x 29 mm
Operating temperature: -20 ~ 50 ° C
supports custom third-party protocol (C-language)

2,797 kr
Item number HMI4.3"SER-ETH
On the way in
7" HMI touch, modbus, RS232/485 WIN CE7.0, ICP DAS VP-2201-CE7
Cortex-A8, 1 GHz CPU
7" TFT LCD with Touch
Front panel: NEMA 4/IP65
Windows CE 7.0
512 MB SDRAM and 256 MB Flash
16 KB EEPROM128 KB MRAM for data retention
1 x microSD socket with one microSD card
1 x 10/100/1000BASE-T Ethernet Port
2 x Serial Ports (RS-232/485)
2 x USB 2.0 (host)
Built-In Real-time clock
2 x LED Indicators
Audio with Earphone-out
Built-In dual Watchdog Timer
Panel mounting, VESA Mounting (75 mm x 75 mm)
IP65 Compliant Front Panel
213 x 148 x 44 (W x L x H)
Operating Temperature: -10 ~ +60 °C
 +12 ~ 48 VDC , 6W, POE
Call +45 56 66 20 20 for price
Item number HMI7-WINCE7.0
On the way in
HMI 4.3" Controller Panel with Touch, Network, RS485, RS232

HMI Panel with LCD Display, Ethernet and Com Ports
Can be connected to most of the manufacturer's I / O modules
Power supplied from PoE or 12 - 48VDC / 2.5 Watt
RS-485 (with self-tunes) < Br> RS-232 (RX / TX / GND)
RTC - Real-time tour
GUI design
Free HmiWorks development tools
supports C and Ladder designer
design suggestions from manufacturer
Modbus TCP / RTU protocol
Dim: 140 x 87 x 41 mm

2,797 kr
Item number HMI4.3"SER-IC
Physically in stock

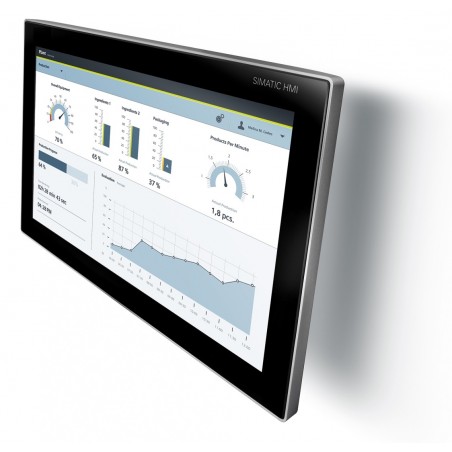

Siemens 6AV7862-2BE00-0AA0

Siemens 6AV7862-2BE00-0AA0

DEMO MODEL - minor impact damage in the aluminum frame (corners)

19" HMI monitor with LED backlight 24V DC
Panel mounting
Widescreen display
Resolution: 1366 x 768
2 x USB 2.0
1 x VGA
1 x Display port (DP)
1 x USB touch interface
IP65 (front)
LED backlight
Touch: analog resistive
Mounting: VESA 100 x 100
Supply voltage: 24V DC
Operating temperature: 0 - 45 degrees
Dimensions: 473 x 297 mm
Mounting plate dimensions: 455 x 279 mm

5,000 kr
Item number MON19-P-TU-DP
Physically in stock
Showing 1-9 of 9 item(s)
