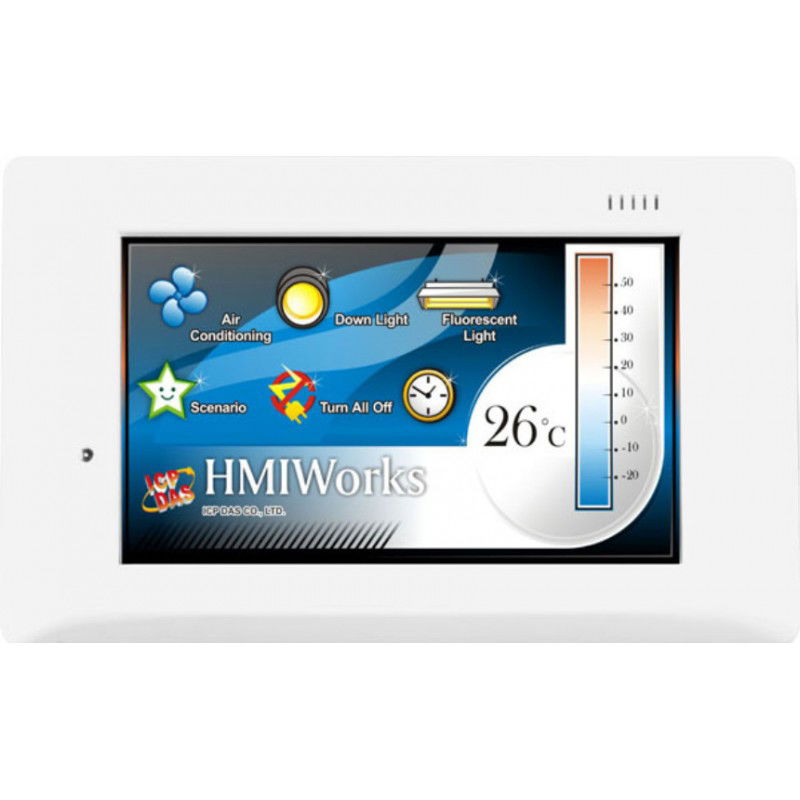

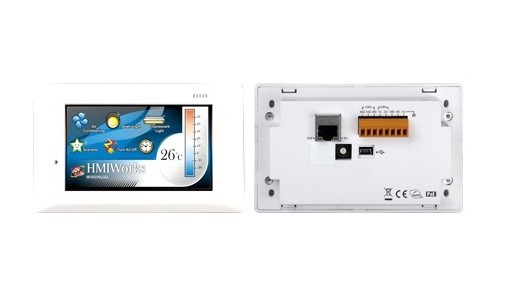

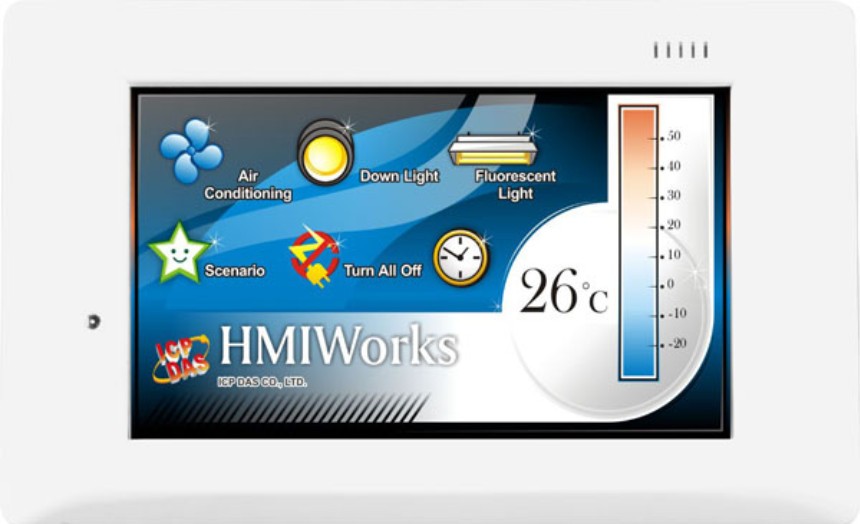

4.3” Touch HMI Device with RS-232 (3-pin), RS-485, USB, RTC, Ethernet

HMI 4.3" Controller Panel with Touch. 1 x RS232, 1 x RS485 Bus, 1 x RJ45 Ethernet, PoE, Ladder, C, Modbus / TCP / RTU

Name: HMI 4.3" Controller Panel with Touch. 1 x RS232, 1 x RS485 Bus, 1 x RJ45 Ethernet, PoE, Ladder, C, Modbus / TCP / RTU
Brand: Danbit A/S
SKU: HMI4.3"SER-ETH
Price: 2797 DKK
Availability: BackOrder

High resolution Color Touch screen
Poe (power over Ethernet)
RS232 Port, RS485 Bus
USB Download Port
RTC (Real Time Clock)
Gui Design
Free HmiWorks Development Tool
Supports C language and ladder designer

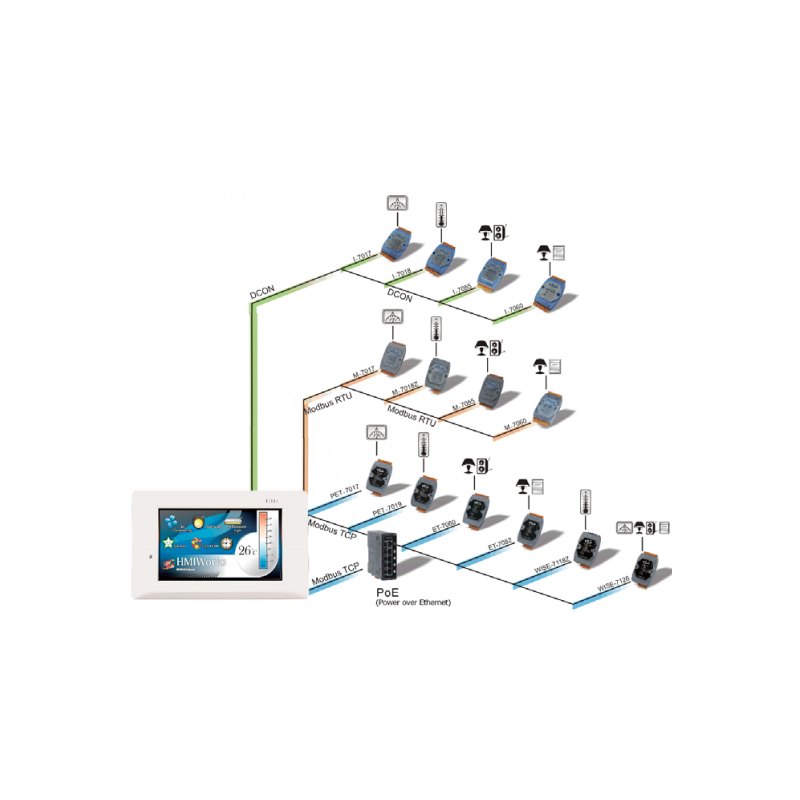

Modbus / TCP, Modbus / RTU and DCON protocol
Size: 126 x 92 x 29 mm
Operating temperature: -20 ~ 50 ° C
supports custom third-party protocol (C-language)

2,797.00 kr

Ekskl. moms

Quantity

On the way in

Product number HMI4.3"SER-ETH

Get Volume Offer DOWNLOADS

Ask a question

Specifications

CPU	32-bit RISC CPU
Driftstemperatur	-30 ~ +50°C
Hukommelse	16 MB SDRAM / 16 MB Flash
Luftfugtighed	10 ~ 90% RH, non-condensing

The TPD 4.3 inch series is equipped with high resolution TFT color touch screen with integrated with I / O modules with flexible & and custom picture frame

Andre produkter i samme kategori:

3 x temperature measurement with PT100, PT1000 sensor and nine RTD elements, 16bit resolution, RS485 bus. 10 - 30vdc.

Module for PT100 or PT1000 sensor with 4-, 3- or 2-wire
for nickel temperature sensor (Ni RTD)
16 bit resolution
15 Measurements per second (Total)
Supply voltage: 10 - 30vdc / 1 Watt
Master RS485 must establish bias voltage
Dim: 123 x 72 x 35 mm

2,828.00 kr

Item Number: M485-ADRTD3-I

On the way in

Logic Controller with Data Logger. 1 x RJ45 Ethernet, 1 x RS232, 1 x RS485. Supports XV plug-in I/O board, 12 - 48VDC

The logger / controller with socket for internal I / O expansion bus (eg. Relay module)
is programmed with simple logic functions
IF-THEN-ELSE, AND and OR simplifies the setup
supports SNMP, SMTP , FTP, Modbus RTU and DCON
Ethernet 10/100 / 1000Mbit
setup via the integrated Web server
1 x RS232 ports
1 x RS485 ports
Supply voltage: 12 - 48VDC

5,315.00 kr

Item Number: L-CON-LOG

On the way in

Ubiquiti mFi-MSC Ceiling Mount Motion Sensor

Spare part

Accessories for MFI-Mport. PIR sensor for ceiling mounting

289.00 kr

Item Number: MFI-PIR-L

Physically in stock

Network Module with Digital I / O Korenix Jeti / O 6550

Network module with digital I / O Korenix JETI / O 6550
Channels: 14/8
Digital inputs: 14 pcs., Logic 0: 0 - 4 V, Logic 1: 5 - 30V
Digital outputs: & nbsp; 8 pcs. Open collector, 5 - 40 V 250mA
Isolation: Optical 2500 VRMS for analog and digital inputs and outputs for the power supply
Magnetic 1500 V from the network interface for the power supply
10/100 Mbit m / RJ45 their connector
Operating temperature: - 25 ° C - 70 ° C
Supports Modbus / TCP, OPC server, SNMP. Software included for configuration
For DIN rail mounting
Supply: 10 - 30 VDC via terminal block, Max 1.92 W

1,394.00 kr

Item Number: ETHIO14D8D-K

Physically in stock

6 x Power relay, 6 x digital input over Ethernet Modbus/TCP 1 x RJ45, PoE or 12 - 48VDC

Modbus TCP Slave Module LAN or Internet
6 x Relay, End Contact 250VAC / 5A, 30VDC / 5A
Avoid inductive load
6 x Digital input. High is 10 - 50V
supply via PoE or 12 - 48VDC
is with I / O Pair Connection - Input is mirrored to exit.
with important "Sale Setting" which sets relays as desired
watchdog which sets relays in "Safe Setting" in error detection
Dim: 123 x 72 x 35 mm
built-in your bracket

1,663.00 kr

Item Number: ETH-MOD6I6R-P-I

Physically in stock

Programmable Industrial Controller with 8 Digital inputs and 4 Relay outputs

ARM Cortex - A53 CPU , 1.2 GHz
RAM 1Gb SDRAM
16GB of memory
2 x RS232/422/485
8 x DI and 4 x relay outputs
DC input 9-32V
4G module
OS : Linux Raspbian
User need knowledge of linux and programing
Documentation for DI/O and 4G module

5,450.00 kr

Item Number: RPI-4G-8I4O

Physically in stock

Industrial controller for measuring and controlling the processes. With ethernet and 4G, with data logging, MQTT, IoT

Advanced Controller with logging
With slot for internal I/O expansion module, A/D, D/A, D/I, D/O, relay
Program with simple logic functions - WISE (Web Inside Smart Engine)
Logic functions with IF-THEN-ELSE logic
Supports SNMP, SMTP, FTP, MQTT, Modbus / TCP / RTU and DCON
Ethernet 10/100 / 1000Mbit
Setup via the built-in Web server
1 x RS232 port
2 x RS485 port
Supply voltage: 12 - 48VDC

8,450.00 kr

Item Number: L-CON-LOG+4G

Physically in stock

Stand-alone LPR camera for license plate recognition IP67, 1080P PoE.

New model expected delivery in April 2025
Double-lane recognition
Up to 30 fps at 1920 × 1080
Standalone database / Log Export
IR distance up to 22 m
Day and Night function
Digital I/O (1 in / 1 out)
SD card slot for data
Built-in heater and fan
Recognize vehicles with speeds up to 100 km/h
Powered via POE / 12VDC
IP67 , Defog
31 languages on Web interface
CE, FCC, UKCA, LVD, RoHS compliant

Call +45 56 66 20 20 for price

Item Number: KAM-NR-IN

On the way in

HMI 4.3" Controller Panel with Touch. 1 x RS232, 1 x RS485 Bus, 1 x RJ45 Ethernet, PoE, Ladder, C, Modbus / TCP / RTU
