HMI 2.8" Controller Panel with Touch Display

Til mindre styringsopgaver, med TFT display og touch

HMI2.8"ETH-I
223.55 USD
Tax excluded
Quantity
Physically in stock

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ICP DAS, TPD-283 CR

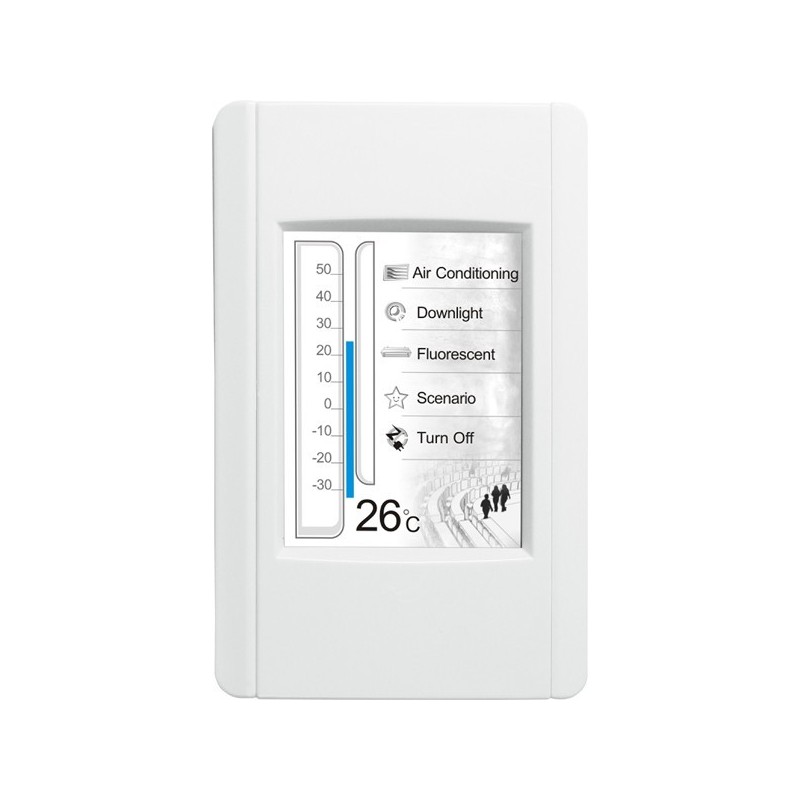

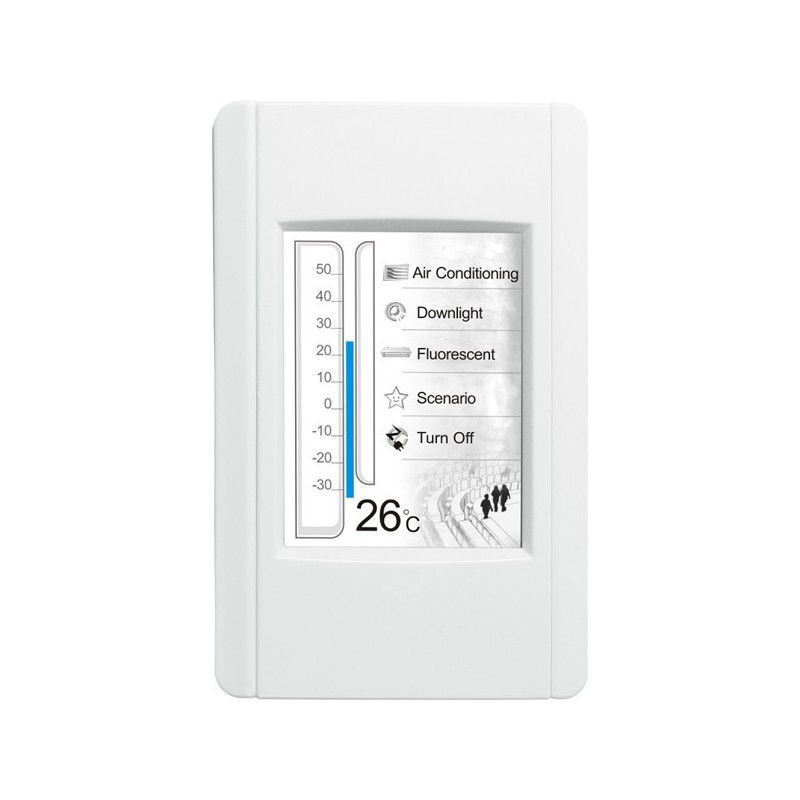

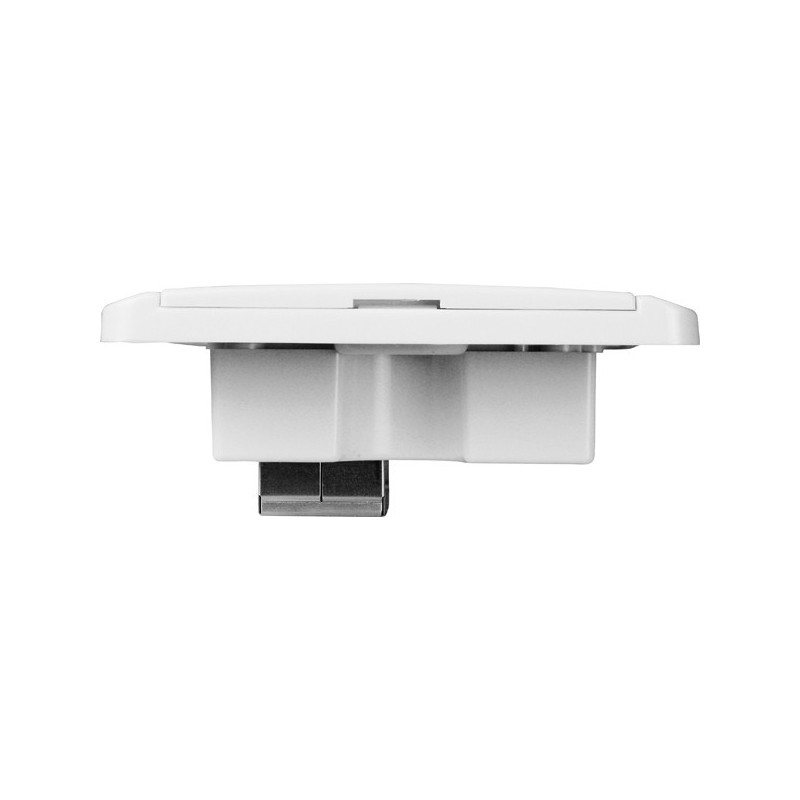

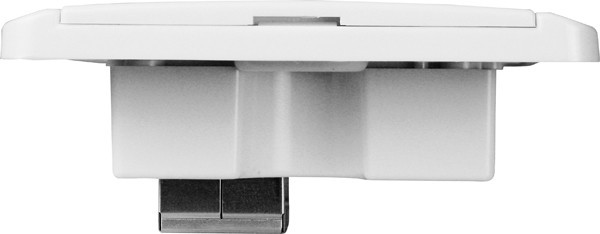

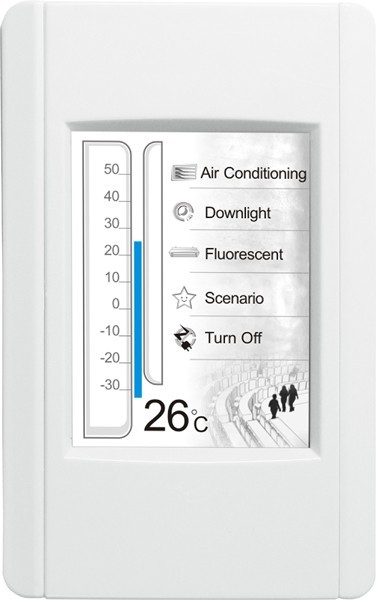

HMI2.8 "ETH-I is a stand-alone PCs with built-in TFT display and touch.
Software Package to design their own graphic layout included. Supports standard C and "ladder" - charts. HMI2.8 "ETH-I has built netwærksport with PoE and can control the Ethernet modules based on MODBUS protocol for example. ETHIOxx-I. Removal application installed via Ethernet port

CPU
32 bit RISC 50 MHz
Dimensioner
76 x 119 x 31 mm
Montering
Panel
Netværk
Ethernet port 10/100Mbit
Skærm
240 x 320 TFT skærm på 2,8” med 16 bits farve dybde
Stik
RJ 45 hunstik

4 other products in the same category:

HMI 4.3" Controller Panel...

HMI 4.3" Controller Panel with Touch. 1 x RS232, 1 x RS485 Bus, 1 x RJ45 Ethernet, PoE, Ladder, C, Modbus / TCP / RTU

High resolution Color Touch screen
Poe (power over Ethernet)
RS232 Port, RS485 Bus
USB Download Port
RTC (Real Time Clock)
Gui Design
Free HmiWorks Development Tool
Supports C language and ladder designer
Modbus / TCP, Modbus / RTU and DCON protocol
Size: 126 x 92 x 29 mm
Operating temperature: -20 ~ 50 ° C
supports custom third-party protocol (C-language)

Price 409.48 USD
Product code: HMI4.3"SER-ETH
On the way in
Quick view
