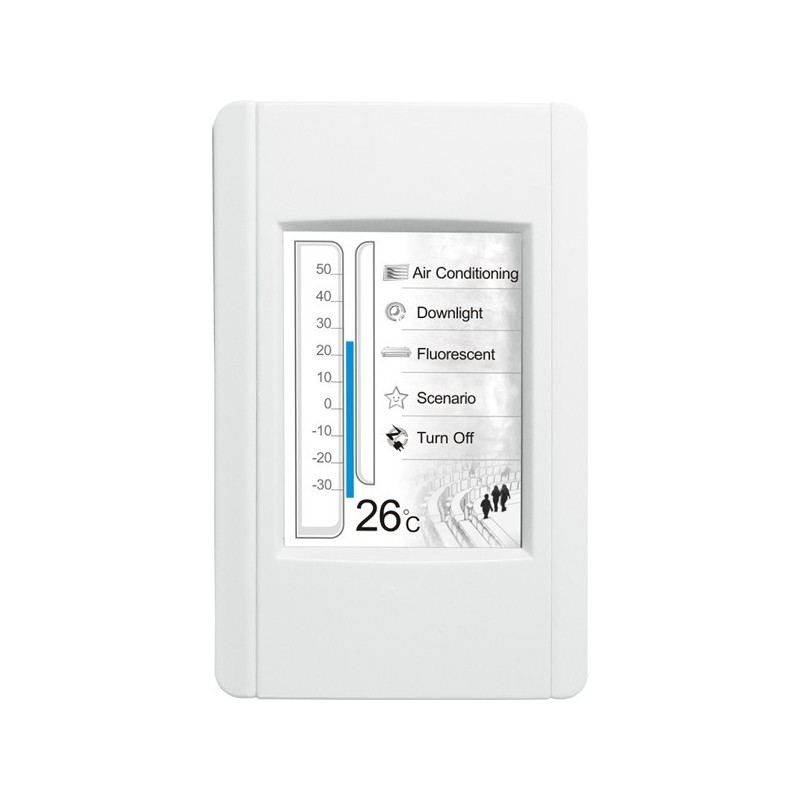

2.8" HMI control panel for I / O modules
can be connected to many RS485 modules from the manufacturer
with TFT display and touch
RS485 Bus, Modbus RTU protocol
USB port for programming
Free HmiWorks Development Software
RTC Real Time Clock
Supply Voltage: 12 - 48VDC
Dim: 119 x 76 x 33 mm
2.8 inch series with small touch HMI and designed for building and home automation. The TPD 2.8 inch series is equipped with a high resolution TFT colorouch screen and fits in plain wall outlet on the wall. In addition, it is seamlessly integrated with rich I / O modules and presents beautiful, flexible and custom image frame. In short, it is the best choice to upgrade the mechanical switch to intelligent control points.
For PLC users delivers HmiWorks Ladder designer, and for IT users, C-language environment is supplied. In particular, it only takes no more than 30 minutes to learn how to create an application program with devices in the TPD series when using Ladder designer.
5,0 meter kabel til brug mellem I/O-kort og TERM100S
Baud rate (bps): 10K - 1M
Terminator Resistor: 120 Ohms
3000VDC DC-to-DC isolation 2500Vrms for photo-couple
ISO 11898-2, CAN 2.0A and CAN 2.0 B
SC single mode, 1310 nm
RS-232 COM1
+10 - + 30VDC unregulated
-25 - + 75 degree driftemperatur
10-90% humidity
MODBUS TCP/IP module with analogue in- and output
User-definable Modbus TCP Slave addressing
Max. 10 clients connected
Supports RESTful API for IIoT applications
Supports peer-to-peer communications
Saves time and wiring costs with daisy-chain topologies
Active communication with WIN-OPC UA Server
Supports SNMP v1
Easy mass deployment and configuration with Device Search utility
Friendly configuration via Web browser
Temperature range -20 to +70°C
DIN Mount
Phoenix contacts
Supply 12 - 36VDC/ 3 Watt
Size: 124 x 84 x 28 mm
Liquid depth measurement with RS485 interface
measuring depth: 0 - 12 meters
Operating temperature: -30 - + 140 ° C
House: PC / PBT, Cream transducer
Supply voltage: 8 - 24VDC < Br> Objective: Tip Ø 5cm
setup with RST-3002 programming module
