Via Network

Ethernet-based relay module with Modbus
with I/O Pair Function
Digital signals are mirrored on another module outputs
Power Relay, 250vac, 30vdc, 5A
DINr
Supply voltage: 10 - 30vdc, 3 watts
Dim: 180 x 111 x 70 mm
Operating temperature: -25 - +75°C

Ethernet I/O module Modbus/TCP / UDP slave
1 x RJ45 Ethernet
Redundant Power Supply
Protocol: TCP, UDP, HTTP, DHCP, BOOTP and TFTP
Web configuration and firmware update via Ethernet
2 x digital input (Wet - volts supplied)
2 x Relay, COM, NO - 250VAC 5A, 30VDC 5A
Avoid inductive load to relay contacts
With locked DI and 32-bit 3.5kHz counter
With I/O pair - input is mirrored in the other's output
Dual-watchdog with Power-on-safe value
Supply voltage: 12 - 48VDC, 1.7 Watt
Dimensions: 98 x 52 x 27 mm
Operating temperature: -25 - +75°C

Modbus / TCP I / O module with built-in Web server
Modbus / TCP and Modbus / UDP protocols
2 x RJ45 Ethernet switch to Daisy-Chain topology
Dual Watchdog
Operating temperature range: - 25 to + 75 ° C
I / O Pair connection - Ingang refles in the second's exit
8 x Digital input: Wet (Apply Volt), Dry (Contact) - Digital Input: 0 - + 50CDC or Open / GND
8 x Digital Outout, Open Collector 0 - 40VDC / 650MA
Dimensions: 76 mm x 120 mm x 38 mm
Supply voltage: 12 - 48vdc, 4 watt
your bracket Wall mounting

Distributed I/O via Ethernet/RS485
Can be controlled via RS485 or Ethernet
10 x digital in 10 x relay out (mechanical relay)
9VDC ~ 24VDC supply voltage (power adapter included)
16bit / 100MHz CPU
256 KB ROM, 1 MB SDRAM

Web-baseret I/O modul, Modbus/TCP / UDP
4 x Analog inputs (differential) voltage or current
Resolution: 16bit
Analog Input: +/- 10 V, 0 - 20mA (jumper)
4 x Analog outputs voltage or current
Analog output: +/- 10VDC, 0 - 20mA (jumper)
4 x Digital inputs (dry or wet), max. + 30VDC
I / O Pair-function - the input is mirrored to the second output
10 samples per second (fast: 50 samples)
Protocol: Modbus TCP / UDP
Supply voltage: 12-48 Volt DC / 5Watt

4 single ended input +/- 10V analog, +/- 5V, +/- 2.5V ... +/- 20mV
128kS / s for each channel sampling rate
FIFO: 4000 samples - memory 30 million data samples
24bit resolution
2 x analog output +/- 10V, +/- 5V, 0-5 / 10V
analog output 12bit resolution
Trigger mode: SW, Ext analog
1 x 32bit counter, max. 30kHz
1 x Encoder input: Qadrant / CW / CCW and pulse
3 x digital inputs (wet) up to + 30VDC
4 x digital output (Open Collector) up to + 30VDC, 100mA
Overload protection up to 1.3A
1 x Ethernet port RJ45
Security: ID, password and IP filter
Powered by the PoE or 12 - 48VDC, 2,6W
Dimensions: 120 x 76 x 38 mm | Housing: Metal, with DIN bracket
Operating temperature: -25 - + 75 ° C

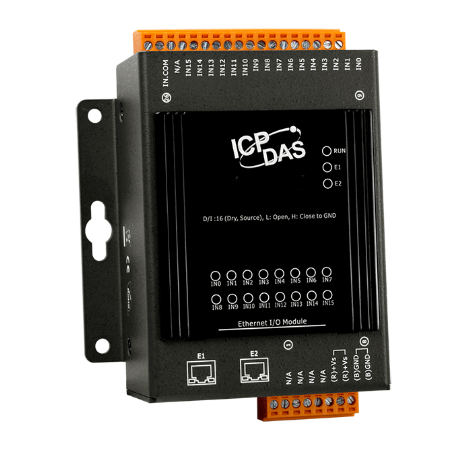

Built-in web server
Web HMI
Supports Modbus TCP and MQTT protocols
2-port Ethernet switch (LAN Bypass) for Daisy-Chain Wiring
Double watchdog
Digital input: 16 channels
Dry contact input
Input to Gnd = High (ON)
Input open = Low (OFF)
Supply voltage: 12 - 48VDC
Temperature: -25 - +75°C
Dimensions: 120 x 97 x 42

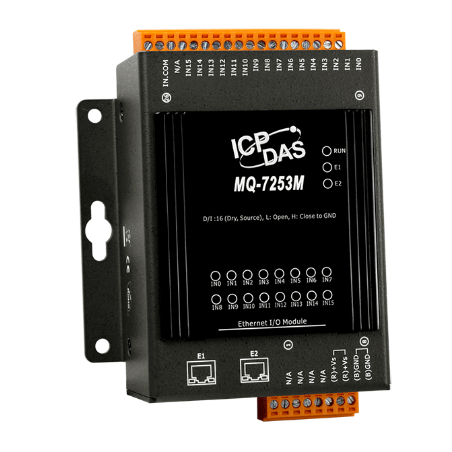

Built-in web server
Web HMI
Supports Modbus TCP and MQTT protocols
2-port Ethernet switch (LAN Bypass) for Daisy-Chain Wiring
Double watchdog
Digital input: 16 channels
Wet contact input
Input high = +10 - 50VDC (ON)
Input low = < +4VDC
Supply voltage: 12 - 48VDC
Temperature: -25 - +75°C
Dimensions: 120 x 97 x 42

Built-in Web server
Web HMI
Support for both Modbus TCP and Modbus UDP protocols
Communications Security
1 x RJ45 Ethernet port
Double watchdog
Operating temperature range: -25 to +75°C
I/O pair connection, the input is mirrored in the other's output
Built-in I/O
12 x Digital input: Wet / Dry, 0 - + 50VDC
All entries are 32-bit counter 500Hz
6 x digital output: Open Collector 0 - + 30VDC / 100mA
Supply voltage: 10 - 30VDC

6 x Digital Inputs - Wet (active at DC in)
6 x Power relay outputs - 24VDC / 250VAC / 5A
Protocol: Modbus TCP / UDP
2 x RJ45 Ethernet interface
With built-in network switch - with the daisy chain
I/O Pair-function - the input is mirrored to the second output
Digital inputs with counter - max 500Hz
the minimum pulse width: 1 ms
Screw terminal
Supply voltage: 10 - 30VDC / 3watt

6 x Digital Inputs - Wet (active at DC in)
6 x Power relay outputs - 24VDC / 250VAC / 5A
Protocol: Modbus TCP / UDP
1 x RJ45 Ethernet interface with PoE in
I / O Pair-function - the input is mirrored to the second output
Digital inputs with counter - max 500Hz
the minimum pulse width: 1 ms
Screw terminal
Supply voltage: PoE or 10 - 30VDC / 3watt

6 x Digital Inputs - Wet (active at DC in)
6 x Power relay outputs - 24VDC / 250VAC / 5A
Protocol: Modbus TCP / UDP
2 x RJ45 Ethernet interface
With built-in network switch - with the daisy chain
I / O Pair-function - the input is mirrored to the second output
Digital inputs with counter - max 500Hz
the minimum pulse width: 1 ms
Screw terminal
Supply voltage: PoE or 10 - 30VDC / 3watt
PoE is NOT continued to LAN port 2 (data only)

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ +75°C
I / O Pair compound - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
Supply voltage: 10 - 30VDC / 3watt

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
2 x RJ45 Ethernet - Daisy chain
Power supply: PoE or 10 - 30VDC / 3watt
PoE fed NOT proceed to the next module - only data

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair connection - the input is mirrored in the other's output
8 x Digital input (count): 0 - + 50VDC (500Hz)
8 x Digital Outputs: Open Collector 0 - + 40VDC / 650mA per output
| 1 x RJ45 Ethernet
Power supply: PoE or 10 - 30VDC / 3watt

The Web server
WEB HMI
Modbus TCP / UDP Modbus
Dual Watchdog
Operating temperature: -25 ~ +75°C
I/O Paie connection - input is mirrored to the other's output
8 x PhotoMOS relay (solid state) COM NO
Relay contact voltage: max 60VDC
Relay contact current: max. 1A
Switching times: on: 5ms, off: 0.3ms
Optical isolation to 3000 Vrms
Supply voltage: 10 - 30VDC / 3watt

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
2-port Ethernet switch for daisy-chain topology
Double watchdog
Wide operating temperature range: -25 ~ + 75 ° C
I / O pair connection. Mirrors the input to output
Built-in I / O to 11 x Power relay: 250VAC / 24VDC 5A
Supply voltage: 10 - 30VDC
PoE voltage is not fed to the LAN port 2
DIN mount

Modbus TCP Slave Module LAN or Internet
6 x Relay, End Contact 250VAC / 5A, 30VDC / 5A
Avoid inductive load
6 x Digital input. High is 10 - 50V
supply via PoE or 12 - 48VDC
is with I / O Pair Connection - Input is mirrored to exit.
with important "Sale Setting" which sets relays as desired
watchdog which sets relays in "Safe Setting" in error detection
Dim: 123 x 72 x 35 mm
built-in your bracket

8 single ended input +/- 10V analog, +/- 5V
200kS / s (200 kHz) for each channel sampling rate
FIFO 2000 is sampled - the memory of 30 million data samples
16bit solution
Trigger mode: SW, Ext. clock, digital falling edge (post, pre, delay), analog
1 x 32-bit counter, max. 30 kHz
4 x digital input (wet) up to + 30VDC
4 x digital output (Open Collector) up to + 30VDC, 100mA
Overload protection up to 1.3A
1 x Ethernet port RJ45
Security: ID, password and IP filter
Powered by the PoE or 12 - 48VDC, 2,6W
Dimensions: 120 x 76 x 38 mm
Housing: Metal, with DIN bracket
Operating temperature: -25 - + 75 ° C

Built-in Web server
Web HMI
Modbus TCP and Modbus UDP protocols
Good communication security
Dual Watchdog
Operating temperature range: -25 ~ + 75 ° C
I/O Pair - Input Mirrors at the second's output
8 x Digital input (counter): 0 - + 50VDC (500Hz) - Wet / Dry
8 x Digital output: Open Collector 0 - + 40VDC / 650MA per Ch
2 x RJ45 Ethernet - Daisy Chain
Supply voltage: POE or 12 - 48VDC / 4Watt
