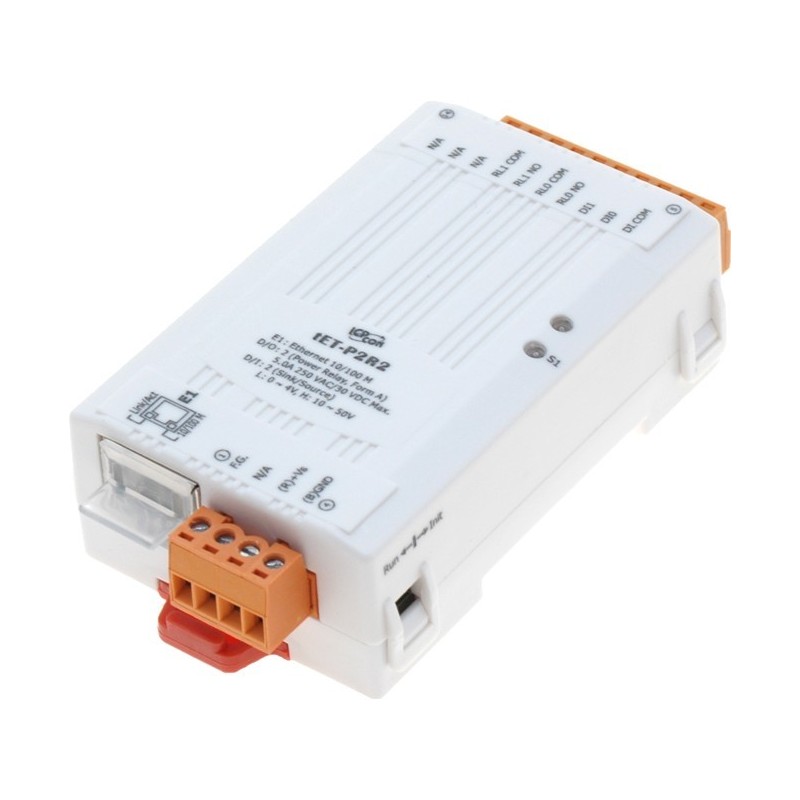

Ethernet Module with Modbus TCP/IP. 2 x digital input, 2 x power relay output, I/O Pair connection, 12 - 48VDC
Ethernet I/O module Modbus/TCP / UDP slave
1 x RJ45 Ethernet
Redundant Power Supply
Protocol: TCP, UDP, HTTP, DHCP, BOOTP and TFTP
Web configuration and firmware update via Ethernet
2 x digital input (Wet - volts supplied)
2 x Relay, COM, NO - 250VAC 5A, 30VDC 5A
Avoid inductive load to relay contacts
With locked DI and 32-bit 3.5kHz counter
With I/O pair - input is mirrored in the other's output
Dual-watchdog with Power-on-safe value
Supply voltage: 12 - 48VDC, 1.7 Watt
Dimensions: 98 x 52 x 27 mm
Operating temperature: -25 - +75°C
972.00 kr
Ekskl. moms
Quantity
Physically in stock
Product number ETH-MOD2I2R-I
Ask a question
close
Specifications
Dimensioner | 52 x 27 x 98 mm |
---|---|
Forsyning | 12 - 48 VDC 2 W |
Indgang | 2 stk. isolerede med fælles stel Logisk 0: 0 – 4 V Logisk 1: 10 – 50 V |
Isolation | 3750 VDC |
Konfiguration | Via webbrowser |
Stik | Skrueterminaler |
Udgange | 2 relæer Type A (slutte) Belastning: 30 VDC / 5A maks. pr. kanal 250 VAC / 5A maks. pr. kanal |
Watchdog | 2 stk. Wachdog timer. Den ene bruges til at genstarte modulet, hvis det fryser/låser. Den anden kan sætte udgangene til en forud bestemt værdi ved kommunikationsfejl |
With various digital I/O functions, the ETH-MOD series is an IP-based Ethernet I/O monitoring and control module. The module can be controlled remotely via Ethernet network using Modbus/TCP protocol. This makes the ETH-MOD series perfect integration with HMI, SCADA, PLC and other software systems.

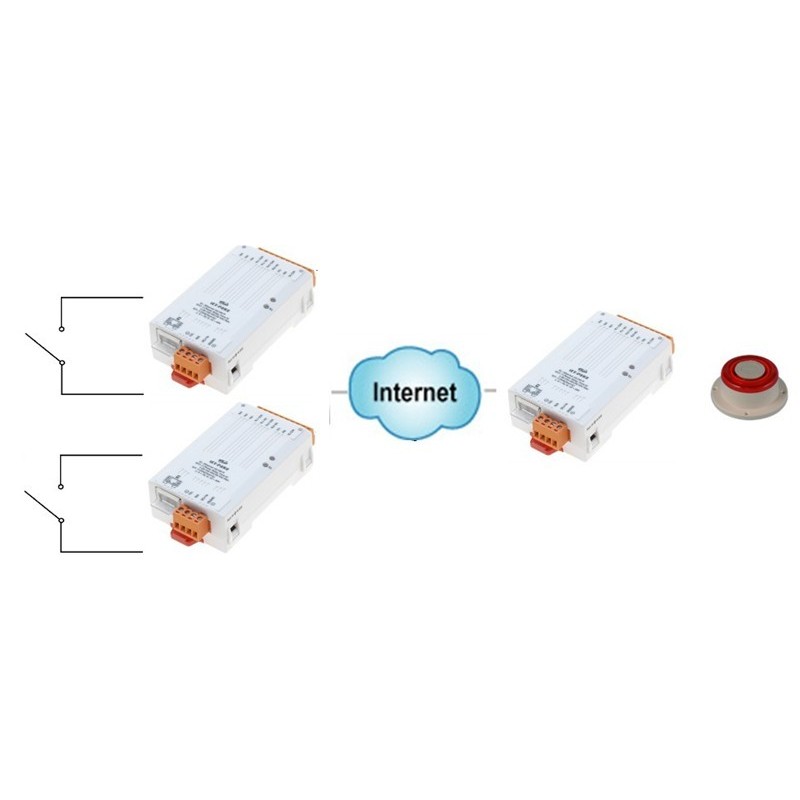

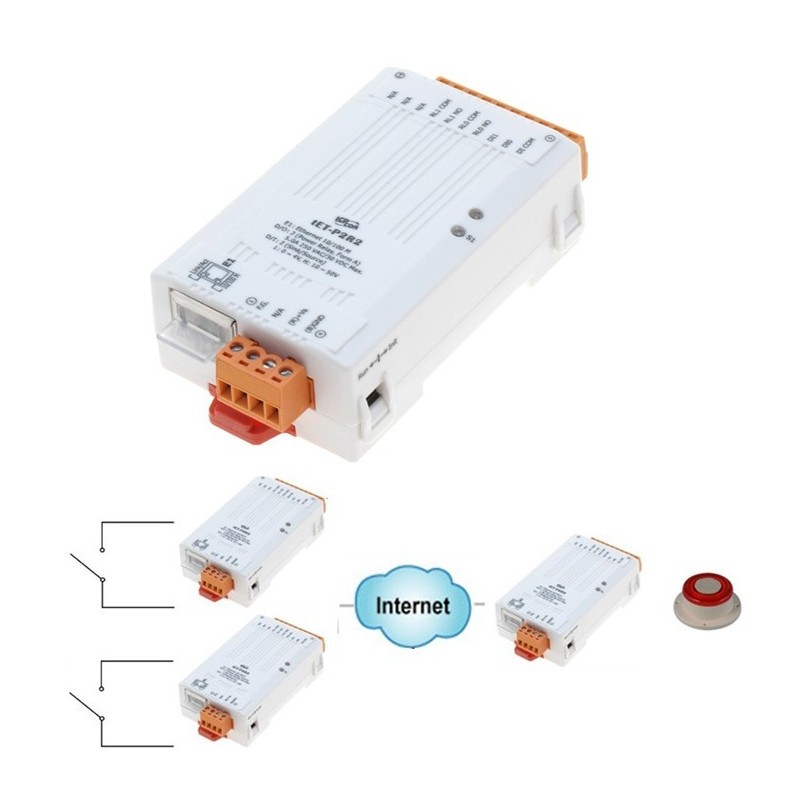

The functionality of the ETH-MOD series is almost the same as the ETHIOxx series. ETH-MOD is the mini Ethernet I/O modules of the series which support various I/O types, such as Photoisolated digital input, relay contact. The module can be used to create a DI to DO-pair connection via Ethernet. Once the configuration is complete, the ETH-MOD serial module can tune the status of the local DI channels and then use the Modbus / TCP protocol to continuously write to an external DO device in the background.
ETH-MOD has double watchdog which automatically resets itself when the built-in firmware runs abnormally. The host watchdog monitors the host controller (PC or PLC) and the output of the module can go to predefined state (safe value) when the host fails.
For maximum space savings, the ETH-MOD series is offered in an amazingly small form factor that makes it easy to install anywhere, even directly embedded in a machine. It is equipped with two removable terminal block connectors for easy connection and has a powerful 32-bit ARM MCU.
