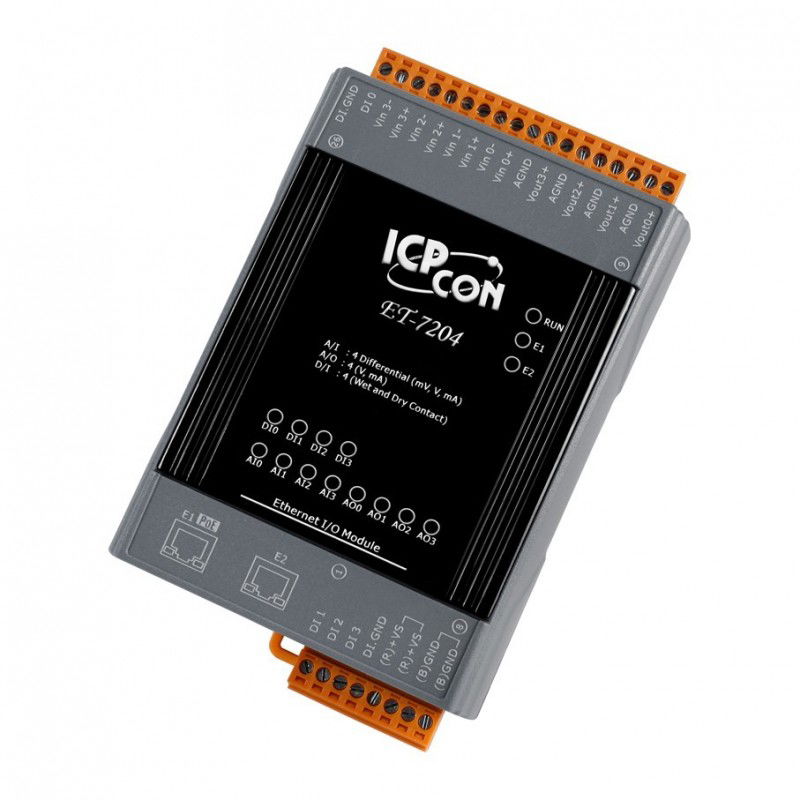

4 x Analogue in, 4 x Analog out, 4 x digital zoom. 16bit, 2 x RJ45 Daisy Chain, I/O Pair-link 12 - 48VDC

Web-baseret I/O modul, Modbus/TCP / UDP
4 x Analog inputs (differential) voltage or current
Resolution: 16bit
Analog Input: +/- 10 V, 0 - 20mA (jumper)
4 x Analog outputs voltage or current
Analog output: +/- 10VDC, 0 - 20mA (jumper)
4 x Digital inputs (dry or wet), max. + 30VDC
I / O Pair-function - the input is mirrored to the second output
10 samples per second (fast: 50 samples)
Protocol: Modbus TCP / UDP
Supply voltage: 12-48 Volt DC / 5Watt

ETHIO4I4O-2I
4,707.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

ETHIO4I4O-2I is a multifunctional module with 4-channel analog inputs, 4 analog outputs-channel, 4-channel digital inputs. It provides various programmable analog inputs (+/- 500 mV, +/- 1 V, +/- 5V, +/- 10V, +/- 20 mA, 0 ~ 20 ~ 4 mA and 20 mA) and analog outputs (+/- 5V, +/- 10 V, 0 ~ 20 ~ 4 mA and 20 mA). Each analog input has allowed to set up a proper range of 240 Vrms with high voltage protection. Each analog input / output can be programmed to accept the current or voltage as an input / output depending on the location of the corresponding jumper.

Forsyning
12 - 48 VDC, 4,9 W via klemrække
Maks. hastighed
10 samples/sekund
Netværk
10/100 Mbit m/RJ45-stik
Protokol
Modbus/TCP, TCP/IP og UDP
Switch
Indbygget 2 port Ethernet switch
Tæller
Digitale Indgange kan virke som 32 bit tæller, maks. frekvens 100 Hz
