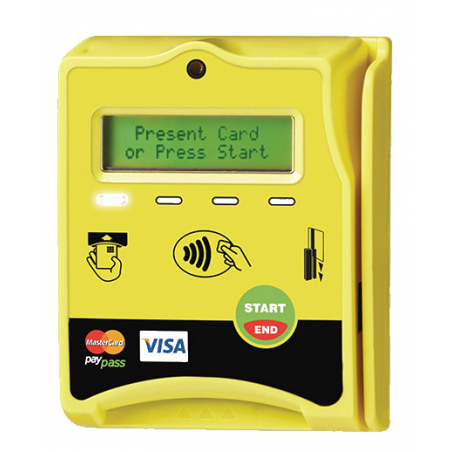

Payment Terminal / Access

Payment system for vending machines, doors etc.
Accepts contactless & nbsp; chip, magnetic stripe and MobilePay
GSM (SMA) and LAN (RJ-45)
2 x digital outputs. & nbsp;
1 x deaktiveringsindgang. Can be configured to deactivate the machine
Can be connected to a vending machine, washing machine, door, etc.
Web-based control panel, can be operated over the Internet
Support for setup can be purchased
Comes with SIM card
User agreement with service provider is required

NOTE: Contract with Danbit A / S and User Agreement with service supplier MUST be established before purchase!

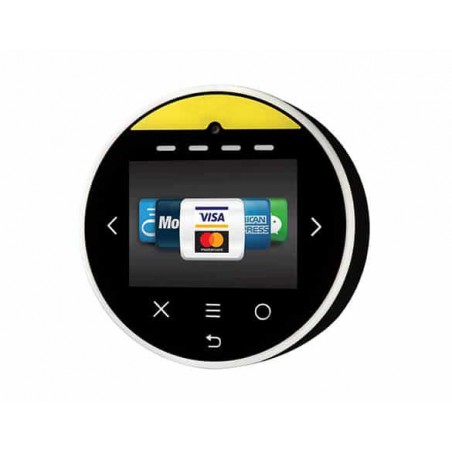

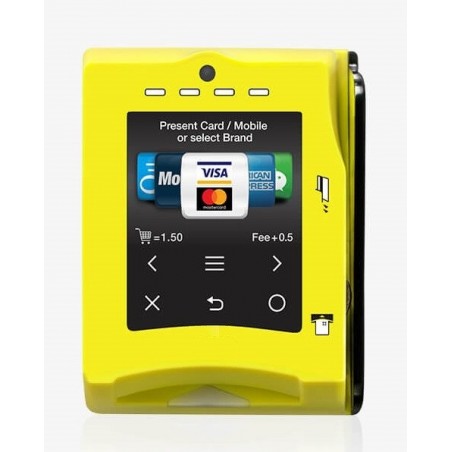

Payment system with touch display.
accept contactless, chip, magnetic stripe and mobilepay.
GSM antenna connector MMCX to 6 digital outputs. Can be programmed with the time difference when paying. To 6 deaktiveringsindgang2. Can be configured to disable the machine
can be connected to a vending machine, washing machine, door, etc.
Web-based control panel.
Communications Internet or WiFi or 4G
Support for setup can be purchased.
Supplied with SIM card (4G)
Supply voltage: 10 - 24VDC, 10 - 42VAC / 2Amp (power supply included)

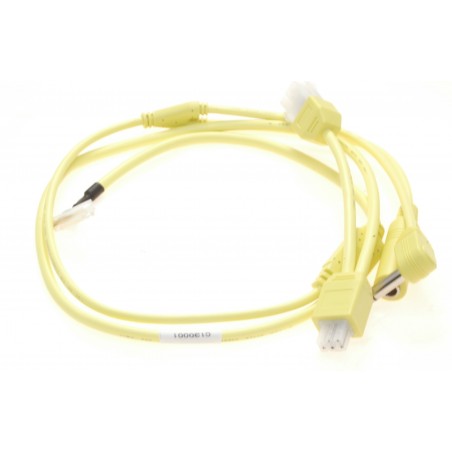

MDB Male and Female
EXT-MCR
TEMP
GND
DOOR OPEN
DEX Male and Female
RS232

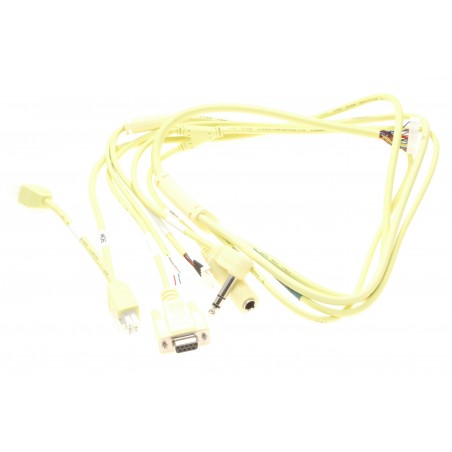

MDB Male and Female
DEX Male and Female

BEMÆRK: Kontrakt med DANBIT A/S og Brugeraftale med serviceleverandør SKAL etableres før køb!

Betalingssystem med touch display.
All-in-one med POS og Data-kommunikation i samme hus
Accepterer kontaktløse kort og MobilePay.
GSM antennestik MMCX stik
6 digitale OC. pulsudgange til automat/vendingmaskine, maskiner, døre etc.
6 digitale indgange, inhibit, for at stoppe køb ved mangel/fejl
Konfigureres via platform med priser og funktioner
Kan tilkobles en salgsautomat, vaskemaskine, dør, osv
Web-baseret eller MQTT Cloud
Kommunikation: LAN eller 4G
Support til opsætning kan tilkøbes.
Leveres med SIM kort klar til funktioneopsætning
Forsyningsspænding: 10-24VDC, 10-42VAC / 2A (PSU medfølger ikke)

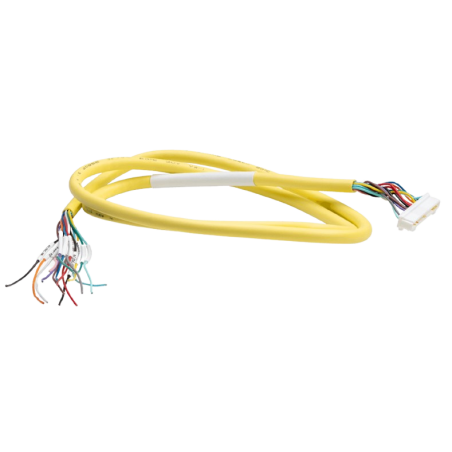

Connect your VPOS Touch or ONYX to a machine using Pulse.
Can be used with coin mechanisms and direct relay outputs(relay is not included).
Perfect solution for car wash systems, paid toilets, and washing machines.

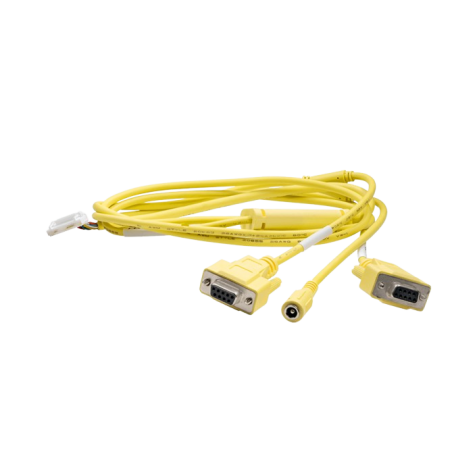

Cable designed for the proprietary Marshall protocol from Nayax payment terminals.
It is equipped with an RS232 plug + one additional plug for debugging and power supply plug.
Length 110 cm.

Designed for Nayax payment terminals and CCI coffee machines
RS232 Male DB9 connector for interface with coffee machines.
Power(DC), ethernet(RJ45) and external reader(RJ11) ports.
Eliminates the need for CCI to MDB converters
