DIN-rail bracket for equipment
Aluminum DIN rail bracket
Supplied without screws

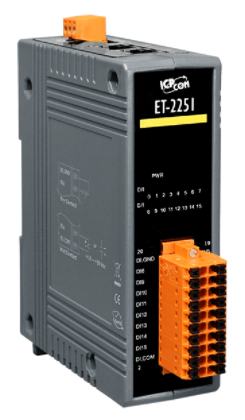

16 x digital input over Ethernet / MQTT
input voltage: Up to + 50VDC
Built-in Web server
Modbus TCP / UDP and MQTT protocols

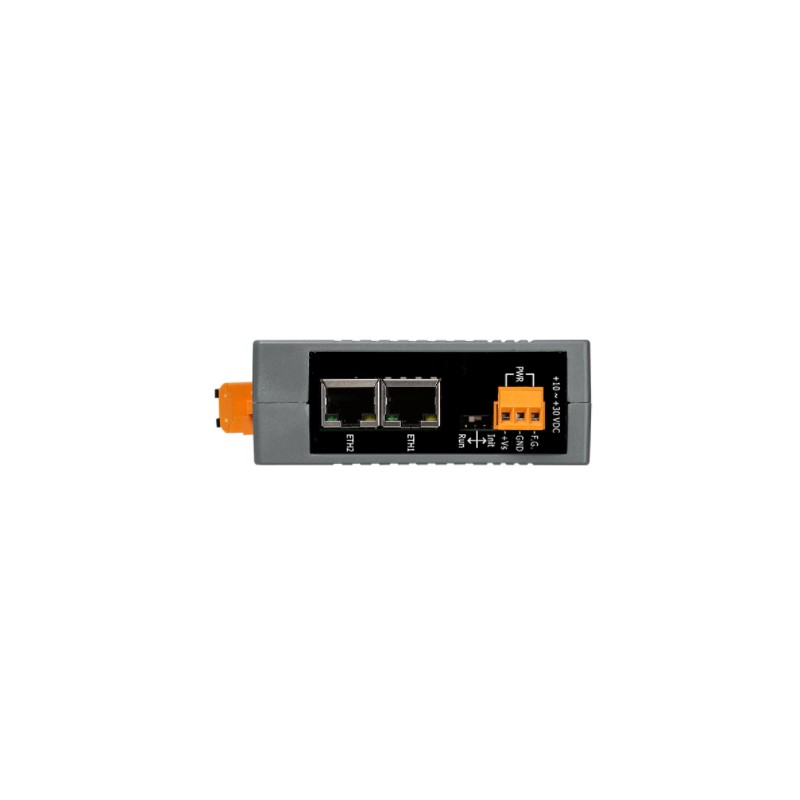

2 Ports Ethernet switch (LAN Bypass ) To Daisy-Chain
Double watchdog (programmable)
I/O-Pair connection (push and poll)
support web configuration and firmware update via Ethernet

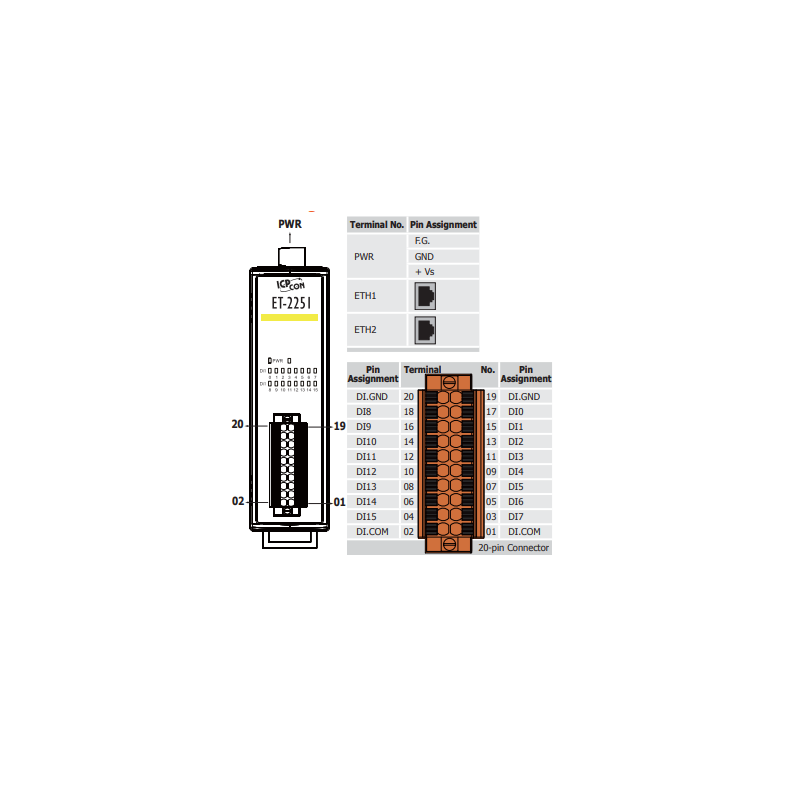

16 x input channels for Wet switch and DRY switch
Wet is active at voltage in
Dry is active at closing contact
LED display To display I / O status
Dim: 127 x 99 x 33 mm
Supply voltage: 10 - 48VDC / 3W
With digital DI function, the module is an IP-based Ethernet I / O monitoring and control module. The module can be remotely controlled through a 10/100 M Ethernet network using Modbus TCP / UDP protocol. Modbus has become a de facto standard communication protocol in the industry and is now the most widely available means of connecting industrial electronic devices. This makes the module perfect for integration with HMI, SCADA, PLC and other software systems.
has 16 digital input channels for wet contact and dry contact. With 2 Ethernet ports, the Daisy Chain connection module allows the flexibility in locating units, facilitates the installation and lowers infrastructure costs. It has 8 kV ESD protection, 4 kV EFT protection. Each input channel can be used as a 32-bit counter. The The module can, together with a DO module, be used to create di two do coupling through Ethernet. After configuration, the module can poll the status of the local DI channels and then use the Modbus / TCP protocol to continuously write to the external DO devices.
It is equipped with a removable clamping cutter for easy and robust wiring In industrial situations and has a powerful 32-bit arm MCU to handle efficient network traffic.
Aluminum DIN rail bracket
Supplied without screws
Compact Modbus / TCP for RTU / ASCII Gateway with PoE
must not be programmed
1 x RJ45 10 / 100Mbps
1 x RS232 (DB9 Han)
Supports Modbus TCP / UDP Master and Slave
Supports Modbus RTU / ASCII Master and Slave
Baud Rate Up to 115,200 BPS
Self-Tuner for RS232
IEEE 802.3af - PoE (PD)
Supply voltage U / Poe: 12 - 48VDC 2Watt
Goal: 90 x 52 x 27 mm
DIN bracket
Operating temperature: -25 - + 75 ° C
Ethernet I/O module Modbus/TCP / UDP slave
1 x RJ45 Ethernet
Redundant Power Supply
Protocol: TCP, UDP, HTTP, DHCP, BOOTP and TFTP
Web configuration and firmware update via Ethernet
2 x digital input (Wet - volts supplied)
2 x Relay, COM, NO - 250VAC 5A, 30VDC 5A
Avoid inductive load to relay contacts
With locked DI and 32-bit 3.5kHz counter
With I/O pair - input is mirrored in the other's output
Dual-watchdog with Power-on-safe value
Supply voltage: 12 - 48VDC, 1.7 Watt
Dimensions: 98 x 52 x 27 mm
Operating temperature: -25 - +75°C
Gateway from Ethernet slave to PROFIBUS master
protocol / hierarchy: DP-V0 Slave
PROFIBUS Speed (Kbps) in 10 step from 9.6 - 12000
speed setting is automatic
Max. Input data length: 240 byte
Max. Output data length: 240 bytes
Address setting: 0 ~ 126 Set by DIP switch or EEPROM
Ethernet protocol: TCP / UDP server / client
Configuration: Web Configuration
