KVM extender
When it comes to KVM extenders, there are several technical considerations to keep in mind based on the type of cable being used:
1. RJ45 Cable: When using an RJ45 cable, as discussed earlier, the maximum distance, resolution, cable quality, latency, compatibility, audio support, and power requirements are important considerations to ensure optimal performance.
2. Fiber Cable: KVM extenders that use fiber optic cables can...
When it comes to KVM extenders, there are several technical considerations to keep in mind based on the type of cable being used:
1. RJ45 Cable: When using an RJ45 cable, as discussed earlier, the maximum distance, resolution, cable quality, latency, compatibility, audio support, and power requirements are important considerations to ensure optimal performance.
2. Fiber Cable: KVM extenders that use fiber optic cables can transmit signals over much longer distances, up to several miles, with less signal degradation compared to other cable types. However, fiber optic cables can be more expensive and require specialized equipment for installation and maintenance.
3. Over IP: KVM extenders that use an IP-based connection allow you to control a computer or server over a network, which can be useful for remote access. This type of extender requires a network switch and may introduce additional latency compared to direct cable connections. You should also consider the bandwidth requirements of the network and the security of the connection.
In addition to these technical considerations, it is important to consider the specific features and compatibility of the KVM extender, such as the number of ports, supported operating systems, and remote management capabilities. By carefully evaluating these factors, you can choose the right KVM extender for your needs and ensure optimal performance and reliability.

KVM extender
Subcategories
There are 28 products.
Active filters

HDMI KVM extender receiver, 150 meters over Cat 6a RJ45 cable, or over TCP/IP, USB HID.
Receiver to transmitter BOOST-HDMI150-U-IRT
HDMI video and audio and USB up to 150 meters over network cable
HDMI video and audio and USB over local network
USB is only for keyboard and mouse
Recipient
1920x1080 @60Hz
Multiple receivers to transmitter over non-managed switch.
Supports keyboard and mouse ONLY
Supports TCP/IP and local EDID
HDMI 1.3 / HDCP 1.2
Receiver: 1 x HDMI, 2 x USB-A, 1 x RJ45 Ethernet
built-in auto-adjustment system
Built-in ESD protection system
Power supply: DC 5V/1A (included)
Dimensions: 92 x 70 x 25 mm

HDMI KVM Extender, HD, 150 meters over Cat 6a RJ45 cable or over TCP/IP, USB HID
Transmits HDMI video and audio and USB up to 150 meters over network cable
Transfers HDMI video and audio and USB over local TCP/IP network
USB is for keyboard and mouse only
Set with transmitter and receiver
1920 x 1080 @60Hz
A transmitter to multiple receivers over non-managed switch.
Supports keyboard and mouse ONLY
Supports TCP/IP and local EDID
HDMI 1.3 / HDCP 1.2
Transmitter: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Receiver: 1 x HDMI, 2 x USB-A, 1 x RJ45 Ethernet
built-in auto-adjustment system
Built-in ESD protection system
Power supply: DC 5V/1A (supplied)
Dimensions: 92 x 70 x 25 mm

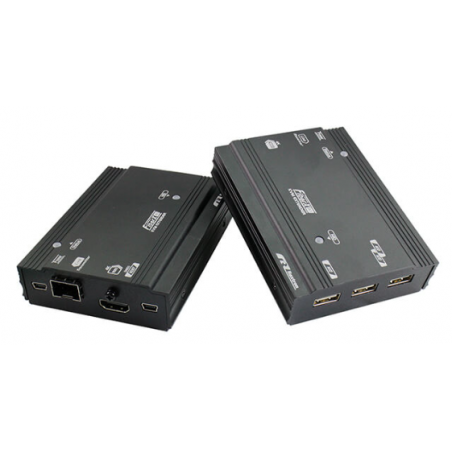

4K HDMI KVM Extenders HDMI Over Single Fiber Optic up to 20 km, uncompressed transmitter and receiver
HDMI and USB over fiber
Video resolution max up to 4Kx2K@60Hz(4:2:0), 4K*2K (3840x2160@30Hz), 1080P@120Hz and 1080P 3D@60Hz.
Transmits HDMI signals up to 10 km (6.2 miles) through a single LC/LC single core fiber optic cable.
Compatible with Multi Mode fiber cable, up to 300 meters
Equipment with two 10G SFP Optical modules.
USB 1.1 only Keyboard and mouse
Supports up to 7.1 channel and LPCM, Dolby TrueHD, DTS-HD Master Audio.
Compliance with HDMI 1.4 standard.
High compatibility, can automatically match source and display device.
Built-in automatic adjustment system, makes the image smooth, clear and stable.
Simple to install, plug and play.
DC5V/2A power supplies (2) included

150m HDMI Receiver KVM Extender 1080p, USB over RJ45 Cat6 or IP. Extra receiver for BOOST HDMI150-D-LO
KVM receiver to create several operating positions for one PC sends
KVM Extender up to 150 meters point to point Cat 6 cable
KVM Extender over TCP / IP.
A BOOST HDMI150-D LO transmitter supports up to 253 recipients
up to 1920 x 1080p @ 60Hz
Audio Format: DTS-HD / Dolby true HD / LPCM7.1 / DTS / DSD
USB KVM feature: Keyboard and mouse (HID signal) remote
USB 2.0 up to 480Mbps
Over router / switch with IGMP snooping
H.264 video.komprimering
Video standard: HDMI 1.3 and HDCP 1.2 standard
EDID emulation via PC's graphics card

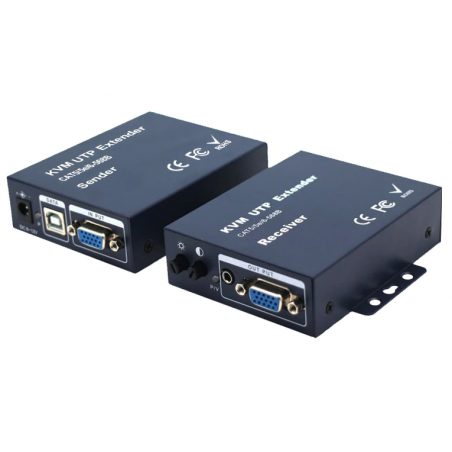

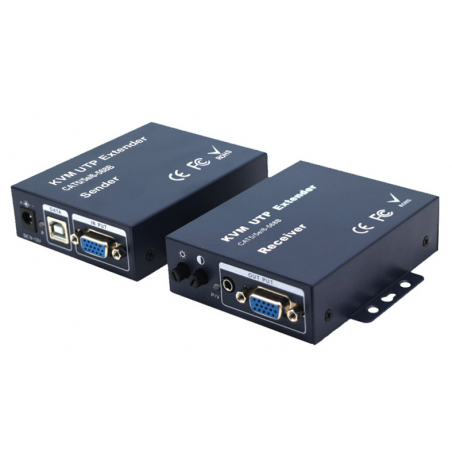

VGA KVM Extender 300 meters, 1920 x 1440 @ 60Hz, USB for keyboard and mouse, set with transmitter and receiver
KVM extender for VGA, USB K/M over Cat 5/5e/6 UTP
Up to 300 meters distance from a computer
1920 x 1440 @ 60Hz
2 users can share 1 computer, locally and remotely
Ideal for professional video applications
Only supports the standard USB HID keys
USB ONLY for keyboard and mouse (not touch)
No drivers needed or software required
Rotary knob adjustment of brightness and contrast (color)
Dimensions: 95 x 97 x 28mm
Supply voltage: 9~12VDC, PSU included

DVI KVM Extender 1080p up to 120m over Cat 6 cable or TCP/IP. USB keyboard and mouse. 12VDC
Transmits DVI video and audio signals up to 120m over a single CAT6 cable
Supports resolutions up to 1920*1080@60Hz
Supports keyboard and mouse signal transmission
A cable can transmit several signals simultaneously
Transmission distance: CAT 6 120m or TCP/IP
LAN diode flash at link
Plug and play support without any settings
Including DC12V/1A power supply
Size: 164 x 85 x 25 mm
Weight: 2 x 220g
Temperature: 0 - +50°C

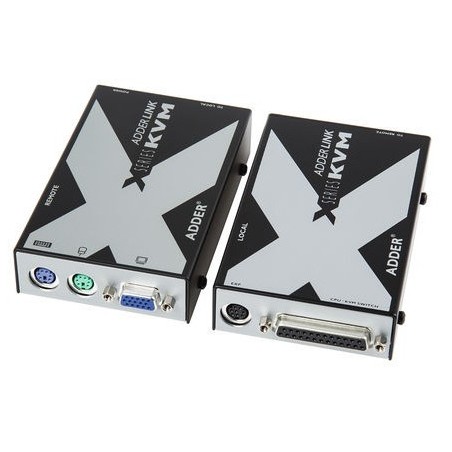

KVM Extender, Max 200m, VGA, USB (PS2) with local and remote module, EDID, max 1920x1200. USB is only for keyboard and mouse
Max. 1920 x 1200 pixels
1 x KVM Extender Console Unit - Remote module
1 x KVM Extender Computer Unit - Local module
1 x 12V DC Power supply included for remote module
1 x KVM cable ( VGA)
USB (2 on Console Unit, 2 on PC Unit)
Only VGA and USB Mouse / Keyboard Transfer
Does Not Transmit Touch from Monitor
USB is only for mouse and keyboard
For point RJ45 network cable up to 200 meters
with Edid Emulation
2 controls for the same PC
Video adjustment

HDMI 4K Extender over LAN and Direct with PoE, Transmitter, with USB
4K HDMI / USB video transmitter PoE over LAN
Suitable for Video wall
Use Multi casting switch (IGMP Snooping)
1080p power. 4K (3840 x 2160) HDMI Resolution
HDMI 1.4a - approx 0.5 sec Transmitter and Receiver Slow
1 x RJ45, 1 x DB-9 female, 1 x HDMI female, 1 x VGA DB-15 female
1 x USB 2.0 Type B (PC / Server)
Can be packed up to 8 x 16 video wall
Send and Receive Choices - 16 Channels (DIP)
Supply: IEEE 802.3af / at PoE +; 12V DC 2A (not supplied)
Range up to 100m over direct Cat. 5e / 6 UTP cables
EDID emulation and & nbsp; IR transfer
As receiver, use HDMI-MULTI4K-R

HDMI 4K Extender over LAN and Direct with PoE, Receiver Module, with USB
4K HDMI/USB video receiver PoE over LAN
Suitable for Video wall
Use Multi casting switch (IGMP Snooping)
1080p or 4K (3840 x 2160) HDMI resolution
HDMI 1.4a - approx. 0.1 second delay between transmitter and receiver
1 x RJ45, 1 x DB-9 female, 1 x HDMI female
4 x USB 2.0 type A (mouse/keyboard/USB touch)
Can be fitted up to 8 x 16 video wall
Transmitter/receiver selector - 16 channels (DIP)
Supply: IEEE 802.3af/at PoE+; 12V DC 3A (not included)
Range up to 100m over direct Cat. 5e/6 UTP cables
EDID emulation and IR transfer
As transmitter, use HDMI-MULTI4K-T

HDMI KVM Extender 4K@30Hz up to 120 meters over RJ45 Patch cable, IR, 5VDC, USB 2.0 HID
4K HDMI Extender Over IP
HDMI 1.4 / HDCP 1.4
Up to 120 meters (point-to-points)
4K @ 30 Hz
2 x USB-A 2.0 (HID emulation)
One-to-One or One-To-Many
Max 32 RX Can be connected One TX (Via Ethernet Switch)
Remote-IR from TX to RX
Plug and Play
Power Supply: 5V 1A (2 included)
Dimensions: 107 x 105 x 27 mm
Operating temperature: -15 - + 55 ° C
Weight: TX 499G, RX 494G
acquisition: K-USB4AM-AM -Fe to connect the USB-A port to PC

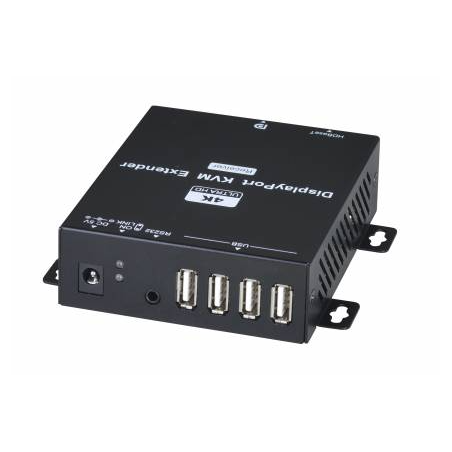

4K@60Hz - KVM DP Extender up to 100m over Cat. 6a cable. DisplayPort 4 x USB2.0 - for touch. Sender/receiver. 12VDC
DisplayPort KVM extender, 4K@60Hz and HD
100 - 150 meters with cat. 6a patch cable (need good quality cable!)
Up to 100 meters with 4K@50Hz
4 x USB 2.0 ports on the remote module
1 x USB B on local module
Transparent USB for K/M, USB drive, HDD etc.
2-way audio transmission - 3.5 mm Jack
DP1.2, HDCP1.3, USB2.0 compatible and Blu-Ray
Point-to-point cable connection
HDBaseT 2.0: Good EMI immunity
Supply voltage: 12VDC / 1.5A PSUs included
Consumption: 10W
Dimensions: 125 x 123 x 32 mm
Operating temperature: 0 - + 45°C

4K60Hz HDMI 4:4:4 KVM Extender over Fiber Cable Multi Mode with LC, 3 x USB. Max 300 meters with OM3. 5VDC
Top class HDMI KVM Extender via a fiber cable up to 300 meters
Consists of transmitter and receiver.
Transmission via Multi Mode OM 3/4 fiber cable with LC connector
HDMI 2.0 video supports the most popular resolutions up to 4K@60Hz (4:4:4)
HDCP 2.2 and HDCP 1.4 compliance ensures uninterrupted HD and UHD video playback
Unique visual lossless video compression makes true 4K video possible
USB HID supports keyboard, mouse, touch screen and other HID devices
Optical system provides high speed up to 300 meters
EMC isolated is ideal for noise-critical applications
Plug-and-Play, no driver or software required
Supports Windows / Mac / Linux / Chrome OS
Dimensions: 100 x 75 x 28 mm
Weight: 235 g

VGA KVM Extender, 100 meters via RJ45 patch cable. USB keyboard and mouse, 1920 x 1440, 12VDC
KVM extender with VGA, USB (K/M)
Sends VGA video up to 100m over Cat6 cable
Video resolution up to 1920 x 1440 at 60Hz.
Uncompressed video, no lag, no loss.
With VGA loop-out function.
USB only for keyboard and mouse
Built-in video adjustment - makes the image clear and stable.
Built-in ESD protection system.
Easy to install, plug and play.
RJ45 and DB15HDM connectors
Dimensions: 97 x 95 x 28 mm
Supply voltage: 12VDC (PSU included)

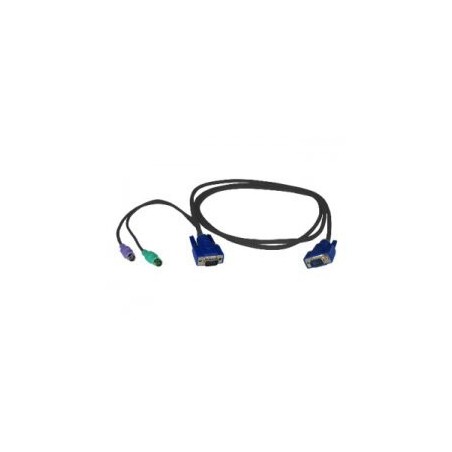

Rextron cable CBD180H PS/2
KVM kabel m/2 x PS/2 hanstik og 1 x DB15HDM, 1.8 m

KVM Extender with DVI, 3 x USB2.0, 100meter of CAT6 / CAT7, 1920 x 1200, during 1ms delay. 5VDC, set
DVI-D og USB2.0 KVM-extender over netværkskabel
Punkt-til-punkt DVI-video og USB
Op til 100 meter over et enkelt CAT 5e / 6 / 7-kabel
Ukomprimeret HD-video med 1920 x 1200 opløsning
24-bit farvedybde
USB 2.0 op til 40 Mbps
ExtremeUSB® extender
Transparant USB overførsel
Maks. forsinkelse er op til 1ms
Plug and Play; ingen softwaredrivere kræves
Fungerer med operativsystemer fra: Windows®, OS X® og Linux®
Monteringskit: gør det muligt at montere enheder på vægge, skriveborde eller 19″ stativer.

4K60Hz 8K30Hz HDMI Extender, USB, RS232 Cat. 6a. Up to 100 meters with HDMI Loop Exit, Video Return
Extend real 4k (4K 60Hz (4: 4: 4) @ 70m 8k (8K 30Hz (4: 2: 0)) HDMI
7680x4320 @ 30Hz (4: 2: 0), 4096x2160 @ 60Hz (4 : 4: 4)
3840x2160 @ 60Hz (4: 4: 4)
over 70m CAT6A / 7 Cable
Transmitter has 4K HDMI local output function
Recipients 720p Video Return function
Gives user Possibility to watch video (camera) at the transmitter
HDCP 2.2 / 1.4 Compatible
Support HDMI Audio Return Channel
Support HDMI CEC, HDMI 2.0
3 x USB ports for keyboard, mouse and other USB devices
12vdc
Require Best Quality Cable! No Support If not the cable is from Danbit.

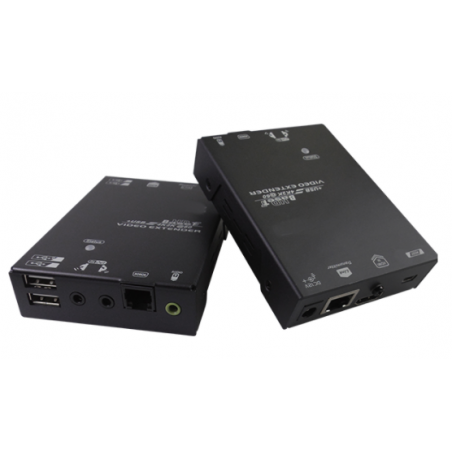

4K@60Hz 4:2:0 or 4K@30Hz 4:4:4 HDMI KVM Extender, 4 x USB, RS232, IR over Cat. 6a/7 up to 100 meters. 12VDC
KVM Extender with 4K HDMI up to 100 meters
HDMI 2.0 - HDCP 2.2
USB 2.0 Bidirectional
Use minimum CAT 6A Cable of good quality
Transfer via 1 Pateck Cable
RS232 without control signals
IR input / output
uncompressed HDMI (HDbaset)
Auto Edid
Dim: 102 x 75 x 25 mm - Each box
Weight: Approx. 300 g
supply voltage: 12vdc

HDMI KVM extender, 120 meters over Cat 5/6 RJ45, TCP/IP, USB
Transfers HDMI video and sound and USB up to 120 meters above network cable
Transfer HDMI video and audio and USB over LAN networks
Set with transmitter and receiver
1920 x 1080 @ 60Hz
Supporter and mice
Supporter TCP / IP and Local Edid
Supporter IR
HDMI 1.3 / HDCP 1.2
Transmitter: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Receiver: 1 X HDMI, 2 x USB-A, 1 x RJ45 Ethernet
Built-in auto adjustment system
Built-in ESD protection system
Power supply: DC 5V / 2A (supplied)

KVM Extender, 200meter, VGA, PS2 over RJ45 kabler, AdderLink X-Series
KVM Extender from ADDER - transmitter box and receiver box
Operate PC / Server 200 meters
Punk to point network cable - UTP
Resolution up to 1600 x 1280 pixels
5VDC 500mA power adapter
Offer. Limited stock!
