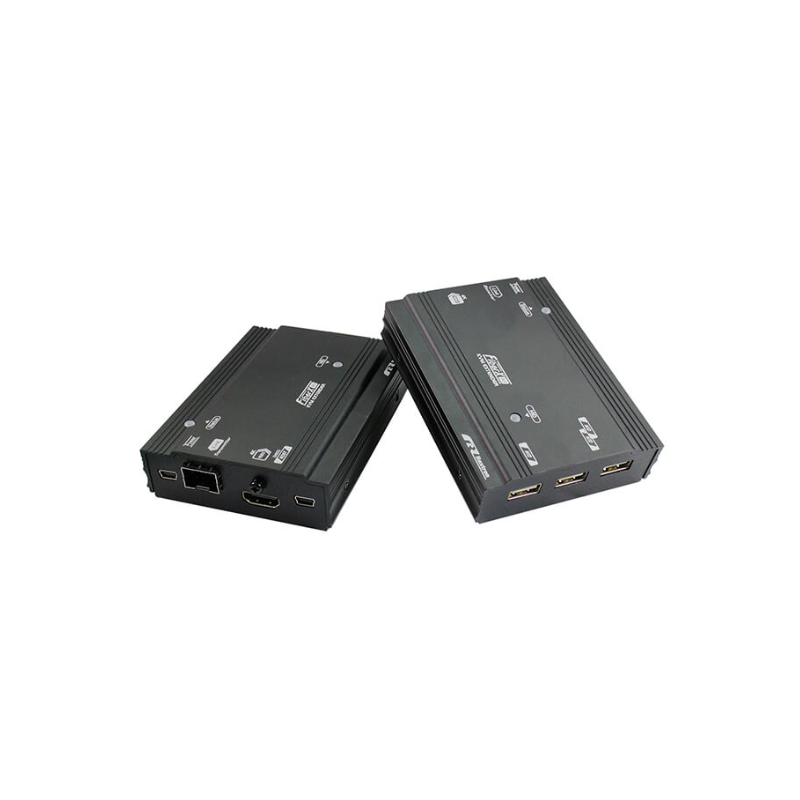

4K60Hz HDMI 4:4:4 KVM Extender over Fiber Cable Multi Mode with LC, 3 x USB. Max 300 meters with OM3. 5VDC

Top class HDMI KVM Extender via a fiber cable up to 300 meters
Consists of transmitter and receiver.
Transmission via Multi Mode OM 3/4 fiber cable with LC connector
HDMI 2.0 video supports the most popular resolutions up to 4K@60Hz (4:4:4)
HDCP 2.2 and HDCP 1.4 compliance ensures uninterrupted HD and UHD video playback
Unique visual lossless video compression makes true 4K video possible
USB HID supports keyboard, mouse, touch screen and other HID devices
Optical system provides high speed up to 300 meters
EMC isolated is ideal for noise-critical applications
Plug-and-Play, no driver or software required
Supports Windows / Mac / Linux / Chrome OS
Dimensions: 100 x 75 x 28 mm
Weight: 235 g

BOOST-HDMI4K60-U-MF
9,807.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

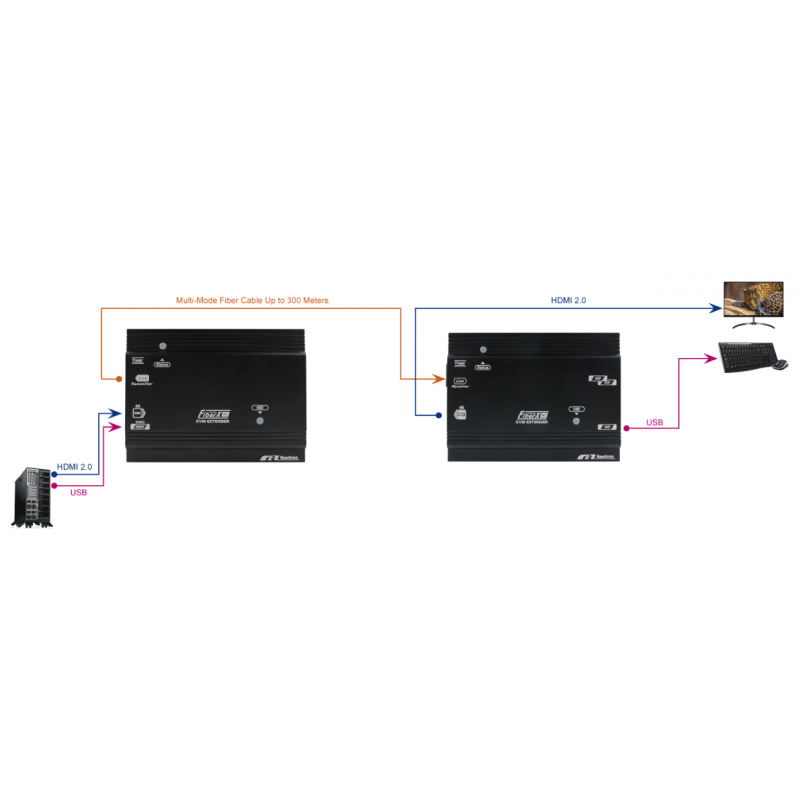

The KVM Extender over Fiber consists of a transmitter and a receiver unit that allows you to extend HDMI 2.0 and USB HID signals up to 300 meters over LC Multi Mode fiber optic cabling. It supports most of the popular Windows, Mac, Sun, Chrome OS and Linux operating systems.
The SFP modular so-called Small Form-factor Pluggable is a compact design used to provide cost-effective and immediate connectivity. You can select, replace, or replace the SFP based on application, cable type, required range, and desired data transfer rate. Fiber optic cable offers a lot of advantages over traditional copper-based extension methods, including thinner and lighter cables, better immunity to RF and EMI, and longer distances. The KVM Extender over Fiber supports HDCP 2.2, ensuring uninterrupted video playback and provides extensive control of EDID (Extended Display Identification Data) to guarantee that the computer is displayed in the optimal resolution and format without compatibility issues.
