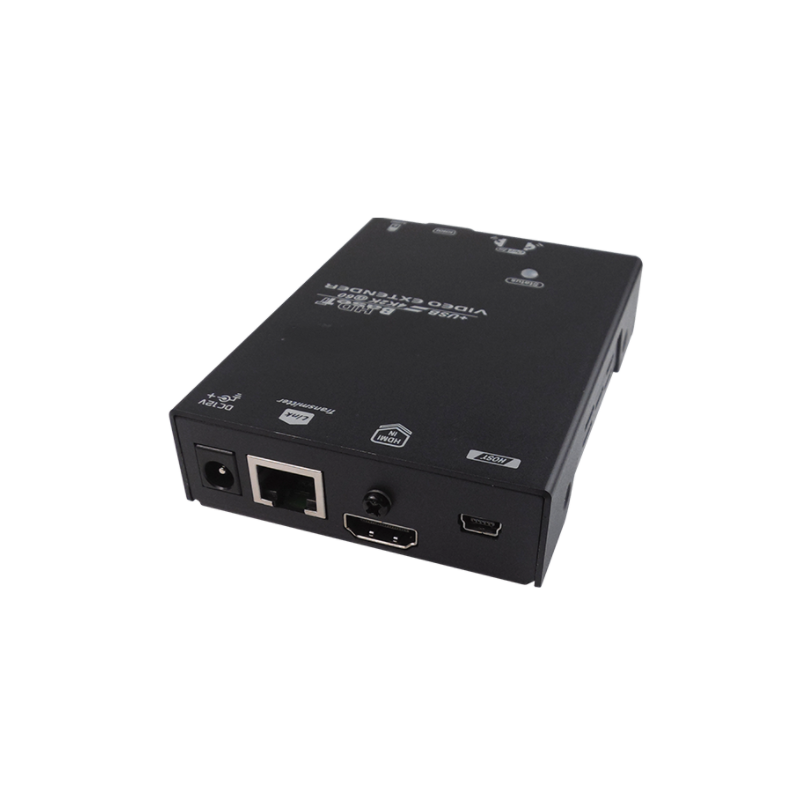

4K@60Hz 4:2:0 or 4K@30Hz 4:4:4 HDMI KVM Extender, 4 x USB, RS232, IR over Cat. 6a/7 up to 100 meters. 12VDC
KVM Extender with 4K HDMI up to 100 meters
HDMI 2.0 - HDCP 2.2
USB 2.0 Bidirectional
Use minimum CAT 6A Cable of good quality
Transfer via 1 Pateck Cable
RS232 without control signals
IR input / output
uncompressed HDMI (HDbaset)
Auto Edid
Dim: 102 x 75 x 25 mm - Each box
Weight: Approx. 300 g
supply voltage: 12vdc
$770.06
Excl. VAT
Quantity
On the way in
Product number BOOST-HDMI100-U-4K
HDbaset HDMI 2.0 KVM Extender can transfer uncompressed 4K 6K HDMI 2.0 Video via single Cat.6a and CAT.7 Cable up to 70 meters, with USB 2.0, Serial. TRUE 4K HDMI sqm Extender over Cat.x with sound, serial, USB.
Units that support HDCP 2.2, (High -Bandwidth Digital Content Production) is more likely to be compatible with 4K UHD content. Most of the latest HDMI KVM extenders and video extenders support HDCP 2.2 and are especially backward compatible with the previous version. This means that you can connect older sources to a new 4K TV under HD streaming without HDCP 2.X to 1.X converter in between. DANBIT Video Extender supports the HDCP key to secure continuous video playback at all times.
Embedded Sound extension cable Function in DANBIT KVM Extender and Video Extender can independently transfer the audio signal from the transmitter unit to the output of the receiver unit and with the exception of HDMI sound. The separate source audio channel provides the other sound transmission that would be beneficial for the content creator, in video mail production or in case of emergency for message users of the computer or server room operating problems.
Full-duplex data communication between TX RX via Cat.x cable and fiber cable connection makes it a cost-effective hardware-based solution that provides remote access and control for all RS232 protocol devices without the need for any setup or configuration. RS232 serial extension is suitable for being used in digital signage, smart classroom, and smart Home Systems.
USB 2.0 Extension Function allows users to transmit USB 2.0 signals with downward compatibility, eliminating 5 meters the distance restriction for USB. The function has USB devices that share capacity without any installation, software or driver. Dedicated USB 2.0 port designed on the front and back of the extender unit is suitable for both long-term and temporary USB access.
HDbaseT Extender over Cat.6a cable is ideal for public radio And TV, exhibitions, shops, courtroom, bus station, and many more applications. In addition, it is easy to install, and no software or drivers are needed. The extender is compatible with all leading operating systems and supports most USB device types from high-speed webcams, hard drives, scanners, audio devices, touch screens, digital cameras, and games.
Andre produkter i samme kategori:
HDMI KVM extender, 150 meters over Cat 6a / 7 RJ45 cable, or over TCP/IP, USB HID
Transmits HDMI video and audio and USB up to 150 meters over network cable
Transfers HDMI video and audio and USB over local network
USB is for keyboard and mouse only
Set with transmitter and receiver
1920 x 1080 @60Hz
A transmitter to multiple receivers over non-managed switch.
Supports keyboard and mouse ONLY
Supports TCP/IP and local EDID
HDMI 1.3 / HDCP 1.2
Transmitter: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Receiver: 1 x HDMI, 2 x USB-A, 1 x RJ45 Ethernet
built-in auto-adjustment system
Built-in ESD protection system
Power supply: DC 5V/1A (supplied)
Dimensions: 92 x 70 x 25 mm
$404.36
Item Number: BOOST-HDMI150-U+IR
4K@60Hz 4 Ports KVM switch with DisplayPort, USB 2.0 and Audio. Hotkey PC selection. 12VDC
Up to 3840x2160 @ 60Hz
buttons / hot-key switching
built-in USB2.0 Hub
USB keyboard, mouse, USB flash drive or a USB printer
AUDIO connector for microphone and speaker
12VDC power input
Dim: 132 x 92 x 66 mm
$269.82
Item Number: KVM4-DP-4K
2 port KVM switch with DVI, USB and audio 4K @ 30Hz
2-port KVM switch
1 x DVI 1.0 inch (from each PC)
1 x USB BM 2.0 (from each PC)
3 x USB 2.0 for mouse and keyboard on the control side
Sound in and out
EDID support
Resolution up to 3840x2160 @ 30HZ (NOTE 30HZ!)
Change from button on the front
Cables must be purchased, available in several lengths
Can function as a DVI or USB switch, requires supplied power supply
$270.55
Item Number: KVM2-DVI-U-L
4K - KVM extender of Gigabit TCP/IP or point to point RJ45 100 meters, HDMI + USB for touch screen. Can be powered by PoE
HDMI Booster, set with 1 x transmitter, 1 x receiver
4K HDMI + USB + Serial extender of Giga LAN (POE)
Point-to-point RJ45: Up to 100 meters
Over TCP / IP LAN Extender
Video signal 4x USB 2.0 signal over LAN
Up to 16 receivers to one transmitter selection via DIP switch
Up to four pairings while the Gigabit LAN
Switch must support IGMP snooping, multi casting
Auto EDID emulation
HDMI with stereo sound
Bi-directionel IR
HDCP approved and Blu-ray ready
4K @ 30Hz, 2160p, 1080p, 1080i, 720p, 720i
Full HD, 4K UHD system
Video wall: 2 x 2, 3 x 3, 4 x 4 ... 9 x 9 display format
Dimensions: 130 x 117 x 28 mm
$1,037.98
Item Number: BOOST-HDMI100-4K
4K@30Hz 4:4:4 HDMI KVM Extender RX over IP / point to point with RJ45 (150m) or fiber (60km). 4 x USB
4K30 HDMI receiver over IP with HDMI out
4K30 HDMI receiver Point to Point with RJ45 up to 150 meters
4K30 HDMI receiver Point to Point with Fiber
For fiber connection - purchase additional SFP module
Suitable as HDMI extender (receiver) for video wall
Receives video from the selected transmitter
Receives 1 to 1 or 1 to 8x16 video wall
4 x USB 2.0 (HUB 2 x USB1.1, 2 x USB 2.0)
RS232 port (duplex)
Dimensions: 210 x 123 x 40 mm
Supply: 5VDC 600mA (PSU 5VDC/1.5A)
0 - +55°C
Free APP
$497.17
Item Number: HDMI-MULTI4K-U-RS
4K@30Hz 4:4:4 HDMI KVM Extender TX over IP / point to point with RJ45 (150m) or fiber (60km). 1 x usb.
4K30 HDMI transmitter / transmitter over IP with HDMI Loop-out
4K30 HDMI transmitter / transmitter Point to Point with RJ45 up to 150 meters
4K30 HDMI transmitter / transmitter Point to Point with Fiber
For fiber connection - purchase additional SFP module
Suitable as HDMI extender (transmitter) for video wall
Transmitter 1 to 1 or 1 to 8 x 16 video wall
1 x USB 2.0 (HUB 2 x USB1.1, 2 x USB 2.0)
RS232 port (duplex)
Dimensions: 210 x 123 x 40 mm
Supply: 5VDC 600mA (PSU 5VDC/1.5A)
0 - +55°C
Free APP
$552.51
Item Number: HDMI-MULTI4K-U-TS
4K@30Hz 4:4:4 HDMI KVM Extender RX over IP / point to point with RJ45 (150m) or fiber (60km). 4 x USB
4K30 HDMI receiver over IP with HDMI out
4K30 HDMI receiver Point to Point with RJ45 up to 150 meters
4K30 HDMI receiver Point to Point with Fiber
Additional HDMI transmitter: HDMI-MULTI4K-UP-TX
For fiber connection - purchase additional SFP module
Suitable as HDMI extender (receiver) for video wall
Receives video from the selected transmitter
Receives 1 to 1 or 1 to 8 x 16 video wall
4 x USB 2.0 (HUB 2 x USB1.1, 2 x USB 2.0)
RS232 port (duplex)
Dimensions: 210 x 123 x 40 mm
Supply: PoE or 5VDC 600mA (PSU 5VDC/1.5A)
0 - +55°C
Free APP
$516.94
Item Number: HDMI-MULTI4K-UP-RS
