HDMI 4K60 KVM extender over IP with PoE, receiver module with USB

Receiver module for HDMI-MULTI4K6-T transmitter

4K60Hz ultra-high quality video transmitter with 60 frames per second

Supports IR extension for video source control

Supports RS232 bidirectional remote expansion

With 4 x USB 2.0 - can transfer Touch

The selectable 64-channel DIP switch for multi-casting group selection

1-to-1, 1-to-many, and multicasting broadcasting architectures

Add more displays without increasing LAN bandwidth load

Supports 4K60 (3840 x 2160) or 1080p HDMI resolution

HDCP compliant

For screen resolutions from XGA, SXGA, UXGA, WSXGA and Full HD to 4K system

Output video rotation

Supports HDMI with 2-channel audio or external audio in and out

Easy installation and administration

Supports USB for KVM PC control

IEEE 802.3af/at PoE+ function supported; no additional power supply required

Supports 802.1X function (future function)

Automatic EDID configuration

Friendly web interface for ease of use

Supports multi-casting group with Gigabit Managed Switch

Switch must have IGMP snooping and Jumbo Frame functions

4,330.00 kr
Excl. VAT
Quantity
Physically in stock
ADD TO CART
Product number HDMI-MULTI4K6-R
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

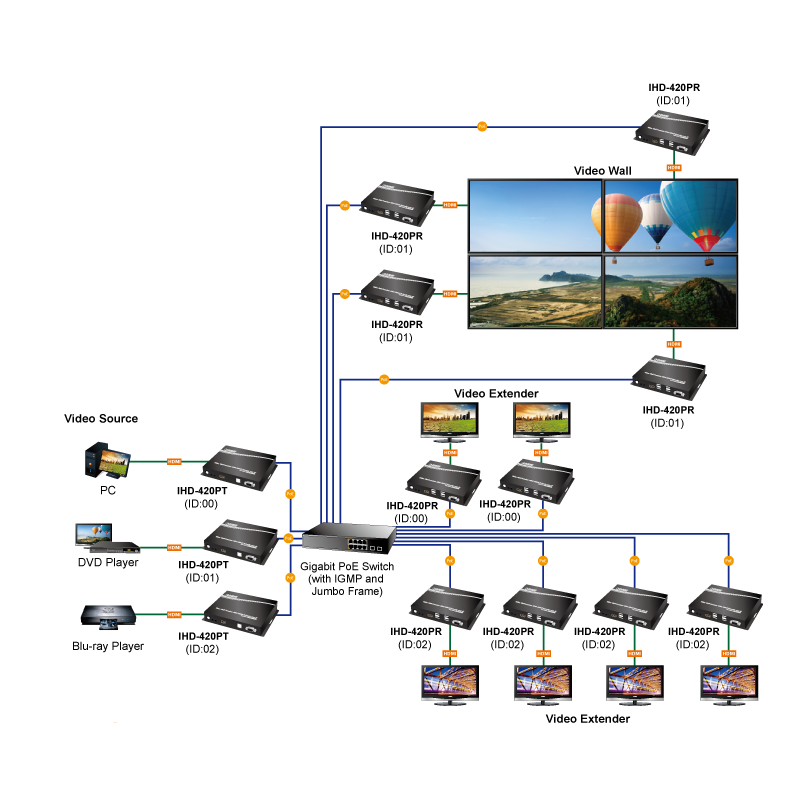

The HDMI-MULTI4K60 HDMI/USB Extender Video Wall over IP with PoE delivers a stunning 4K video distribution solution at 60 frames per second, enabling efficient and impactful advertising deployment. The HDMI-MULTI4K60 series is a combination of the T transmitter and R receiver. They can be used as audio, video and IR extenders over IP and are used for point-to-point, point-to-multipoint, multipoint-to-multipoint and eye-catching video walls of up to 16 x 8 screens.


The HDMI-MULTI4K60 series is a perfect solution for audio and video signal extension over Gigabit LAN. Designed with IR transmitter and receiver interface, it allows users to control the video source at the terminal destination. The HDMI-MULTI4K60 series features bidirectional IR extension and RS232 passthrough, allowing users to cascade the system to extend the transmission distance without signal loss or delay.


They come with USB interfaces that support basic KVM applications such as touch screens, keyboards and mice, allowing users to easily achieve KVM PC control. In addition, with the PoE function, there is no need for additional power supply, and the HDMI-MULTI4K60 series thus reduces the complexity of cable installation.

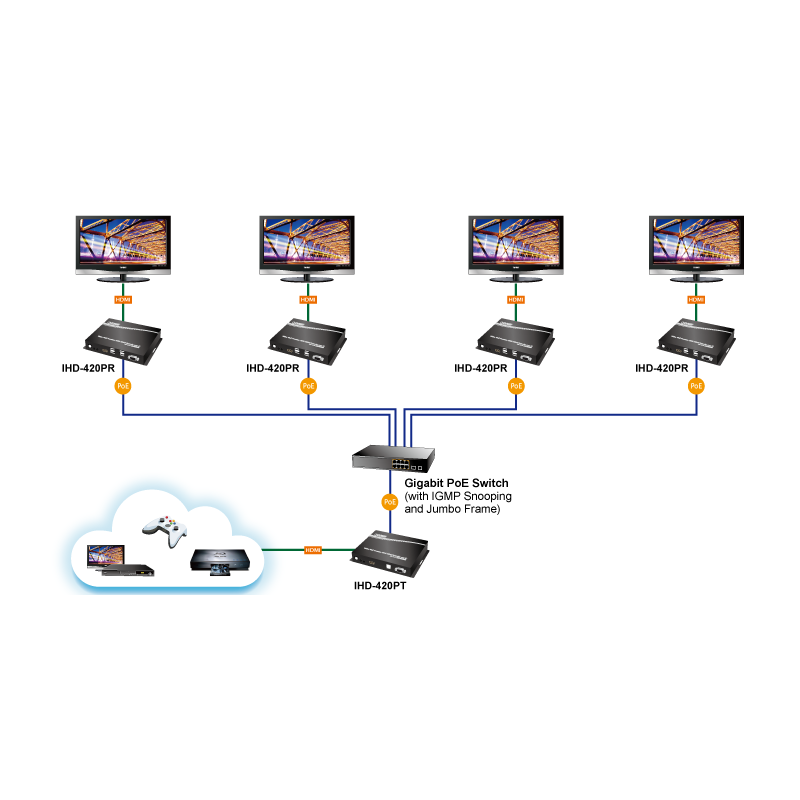

One HDMI-MULTI4K60-T at the local site can power multiple HDMI-MULTI4K60-Rs at remote sites without adding additional load to the network. Integrated with a Gigabit PoE switch that includes IGMP snooping capabilities, the HDMI-MULTI4K60 series provides selectable channels, enabling simultaneous transmission of video and audio. IGMP snooping is a crucial component of IP multicast, which acts as a communication protocol for hosts and neighboring routers on IP networks to establish multicast group memberships. This functionality is ideal for one-to-many and many-to-many network applications, such as online streaming and gaming, facilitating exclusive transmission and more efficient resource utilization.


Where there is more than one transmitter in the video expansion system, the DIP switch in the HDMI-MULTI4K60-T and HDMI-MULTI4K60-R makes it easier to distinguish between the transmitter and receiver pairs in the same channel. It also allows the broadcast system to perform multiple video expansion systems simultaneously by matching T and R.
