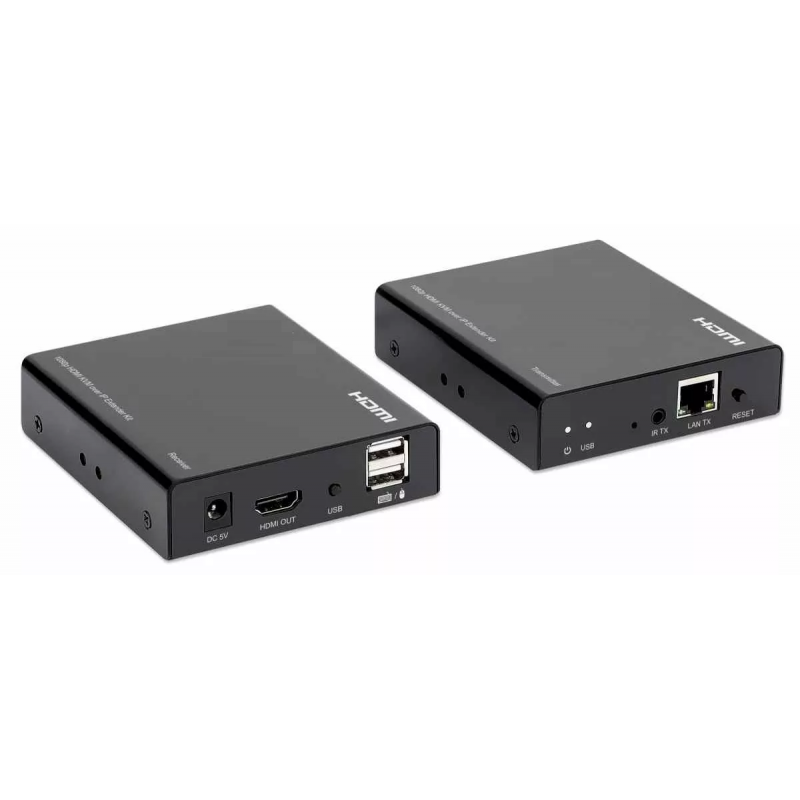

HDMI KVM extender, 120 meters over Cat 5/6 RJ45, TCP/IP, USB

Transfers HDMI video and sound and USB up to 120 meters above network cable
Transfer HDMI video and audio and USB over LAN networks
Set with transmitter and receiver
1920 x 1080 @ 60Hz
Supporter and mice
Supporter TCP / IP and Local Edid
Supporter IR
HDMI 1.3 / HDCP 1.2
Transmitter: 1 x HDMI, 1 x USB-B, 1 x RJ45 Ethernet
Receiver: 1 X HDMI, 2 x USB-A, 1 x RJ45 Ethernet
Built-in auto adjustment system
Built-in ESD protection system
Power supply: DC 5V / 2A (supplied)

BOOST-HDMI120+IR
2,436.00 DKK
Tax excluded
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

USB can only supporter one-to-one applications. Can control HDMI via a keyboard and mouse. The USB port can only be used to connect keyboard and mouse.

Data
6.75Gbps
Driftstemperatur
-5~ +70
Indgang
HDMI-A
Netværk
RJ45 CAT 6 - 120 meter
Opløsning
1920X1080@60Hz
Strømforbrug
MAX 3W
Strømforsyning
DC 5V/1A
USB
PC: Type B USB interface; connect to PC; K/M: connect USB keyboard and mouse;
Video
HDMI 1.3; HDCP 1.2

4 other products in the same category:

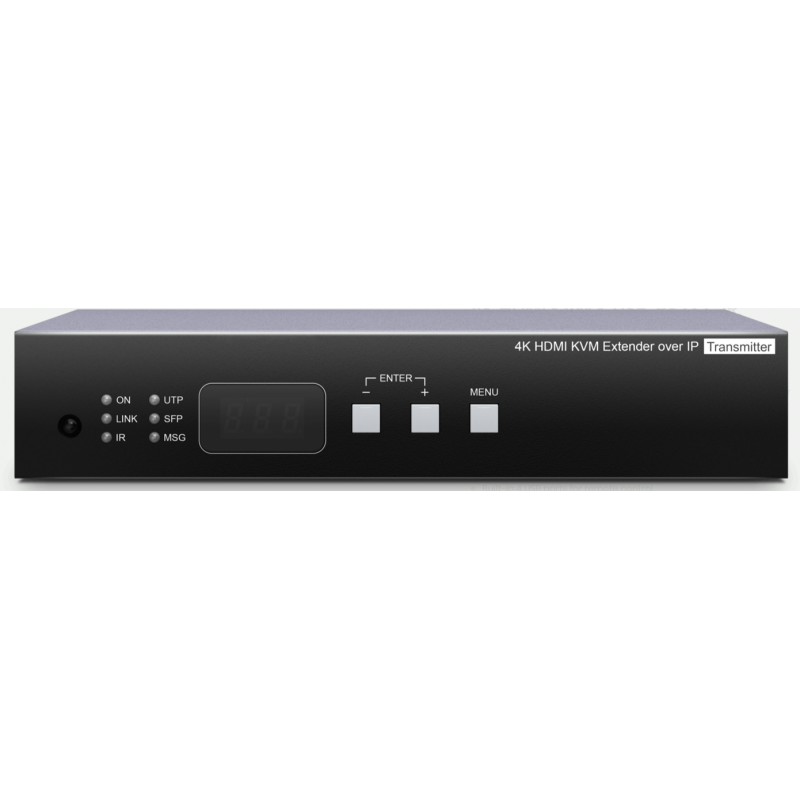

4K@30Hz 4:4:4 HDMI KVM...
