Marine approved Panel PC

Consideration of marine-approved monitors and panel PCs.

Marine Certification Standards: Monitors and panel PCs used in marine environments often need to comply with stringent certification standards. This includes those set by DNV (Det Norske Veritas), which is a prominent certification body in the maritime industry. Compliance with DNV standards ensures that equipment is capable of operating reliably under the specific...

Consideration of marine-approved monitors and panel PCs.

Marine Certification Standards: Monitors and panel PCs used in marine environments often need to comply with stringent certification standards. This includes those set by DNV (Det Norske Veritas), which is a prominent certification body in the maritime industry. Compliance with DNV standards ensures that equipment is capable of operating reliably under the specific conditions encountered at sea. Other certifications might include standards set by the International Maritime Organization (IMO), American Bureau of Shipping (ABS), and similar authorities.

Environmental Resistance:
The equipment must be capable of withstanding harsh marine conditions such as saltwater exposure, high humidity, and wide temperature fluctuations. Features typically include corrosion-resistant materials, watertight seals, and robust construction to ensure longevity and reliability in a maritime environment.

Display Quality:
High-quality displays are essential for visibility in the varying lighting conditions typical in marine settings, from bright sunlight to complete darkness. Look for high-brightness, anti-glare screens with wide viewing angles, and options for night mode or dimmable displays for nighttime use.

Vibration and Shock Resistance:
Marine equipment is subject to constant movement and occasional heavy impacts. Monitors and panel PCs must be ruggedized to handle these conditions without failure or loss of functionality.

Touchscreen Functionality:
Many marine monitors and panel PCs come equipped with touchscreen interfaces for ease of use. These should be designed to remain functional in wet conditions and when operated with gloves.

Size and Mounting Options:
Given the space constraints on vessels, the physical size and available mounting options of the equipment are important considerations. The equipment should be adaptable to the space available on the vessel.

Connectivity and Integration:
Integration with other navigation and control systems is crucial. This requires compatibility with various types of input/output ports and network standards to ensure seamless operation with existing systems on the vessel.

Power Consumption and Heat Dissipation:
Energy efficiency is particularly important in marine settings, as is effective heat dissipation, due to the often confined spaces where the equipment is housed.

Service and Support:
Reliable after-sales service and support are critical in the maritime industry, where equipment failure can have serious consequences. This includes easy access to spare parts and technical support. We always know that this is importent for our customer and do our best to give the best and fast support.

Customization Options:
The ability to customize the equipment to meet specific needs, such as additional interfaces, specific software compatibility, or custom form factors, can be a significant advantage.

Contact us about solutions and special inquiryes.

Marine DNV approved Panel PC dimm function, sunligt readble high nits

Marine approved Panel PC

There are 6 products.

Showing 1-6 of 6 item(s)

Active filters

19" i5 ECDIS DNVGL-CG-0339,...

19" i5 ECDIS DNVGL-CG-0339, IACS E10 Marine approved Panel PC, 24VDC

19" 1280 x 1024 Marine approved Panel PC
Projective multitouch screen PCAP
Marine standard: DNVGL-CG-0339, IEC60945 4th. IACS-E10
Intel Core i5-5200U 2.2GHz
4GB RAM, 128GB SSD (mSATA) Dual ethernet
Supports Win 10 IoT Enterprise (must be purchased separately)
2 x USB 3.0, 1 x USB2.0
1 x RS232 (RS422/485)
2 x RJ45
Option: 8 ch DI/DO (additional purchase)
Option: 4 x NMEA 0183 port (additional purchase)
Supply voltage: 24VDC / 65Watt
DC input: 9 - 36VDC
Dimensions: 429 x 382 x 73 mm
Weight: 7.8 kg

Price 25,588.00 DKK
Product code: IPP19IDNV
On the way in
  • 10.1" Fanless Panel PC IP66...

    10.1" Fanless Panel PC IP66 / 69K near the front and back. Multi-touch

    10.1 " TFT LED panel with Capacitive touch display
    Intel® Pentium® N4200
    System memory max 8G SDRAM
    Internal SATA 2.5" HDD and m.2 2242 socket
    M12 Connectors 1 GbE LAN, 1 2xUSB2.0, 1COM
    VESA and Yoke mounting
    9~36 V DC Power Input Connectors (Waterproof switch)
    -20~60° C Operating Temperature

    Price Call for price
    Product code: IPP10.1IP66F
    On the way in
  • 10.1" Panel PC full...

    10.1" Panel PC full IP66/IP69K celeron 2930 4GB RAM, 32GB MLC SSD

    10.1” Stainless Steel Panel PC
    350 cd/m2
    Intel Celeron N2930 1.83 GHz Onboard Processor
    8GB Onboard DDR3L SDRAM max. 8GB total
    Flat front frame Design
    grade 304 stainless steel housing (Grade 316 is Option)
    IP66 / IP69K Rated with M12 connector
    Support resistive touch, expected capacitive touch, and Glass Touch
    on / off button on the side Edge for hygienic cleaning
    Support Ergonomic Versatile Mounting: Yoke Mounting / Space-saving VESA 75 x 75 mm Mounting
    OPTION HIGH BRIGHTNESS 1000cd/m2

    Price Call for price
    Product code: IPP10.1IP65F2
    On the way in
  • Panel PC 15.6" Intel® N2930...

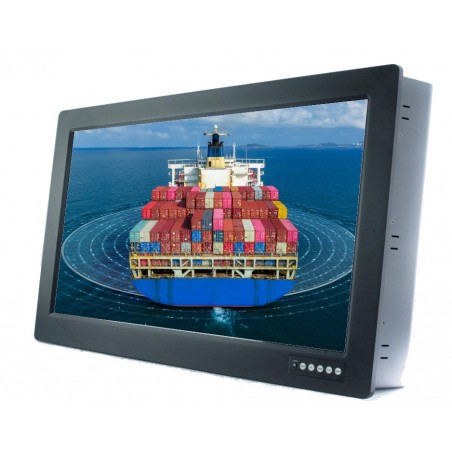

    Panel PC 15.6" Intel® N2930 Marine DNV approved

    15.6", 16 : 9 ratio
    Resolution: 1920 x 1080
    CPU: Intel® N2930
    Ram: 4GB (8GB option)
    120GB SSD
    3xRS232/485/422
    2xUSB3.0, 2xUSB2.0
    Mounting: Panel mount, VESA 75x75
    Front: IP65 Back: IP22 (all side option)
    DC input: 9~32V
    Operating temp.: 0°C to +60°C
    DNVGL and IEC60945

    Price Call for price
    Product code: IPP15.6DNV
    On the way in
