19" i5 ECDIS DNVGL-CG-0339, IACS E10 Marine approved Panel PC, 24VDC

19" 1280 x 1024 Marine approved Panel PC
Projective multitouch screen PCAP
Marine standard: DNVGL-CG-0339, IEC60945 4th. IACS-E10
Intel Core i5-5200U 2.2GHz
4GB RAM, 128GB SSD (mSATA) Dual ethernet
Supports Win 10 IoT Enterprise (must be purchased separately)
2 x USB 3.0, 1 x USB2.0
1 x RS232 (RS422/485)
2 x RJ45
Option: 8 ch DI/DO (additional purchase)
Option: 4 x NMEA 0183 port (additional purchase)
Supply voltage: 24VDC / 65Watt
DC input: 9 - 36VDC

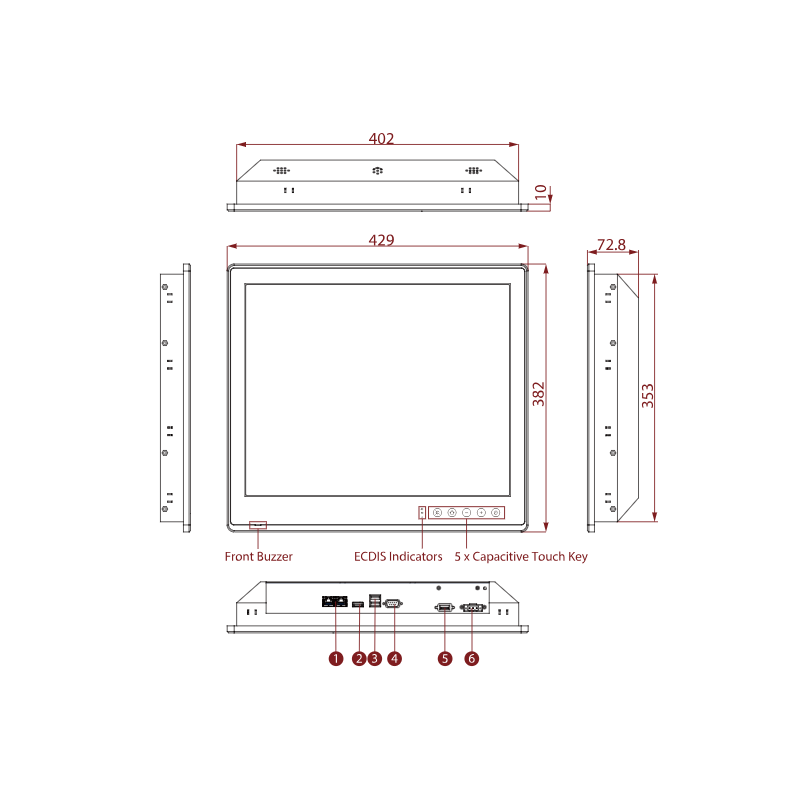

Dimensions: 429 x 382 x 73 mm
Weight: 7.8 kg

Call +45 56 66 20 20 for price
Quantity
On the way in
ADD TO CART
Product number IPP19IDNV
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Intel Core i5-5200U Broadwell 2.2GHz
Digital I/O 8 Channel Isolated Digital Input/Output (Optional)
Operating Temp. -15 to 55 deg.C
Farve 16.7 M colors, 8 bits/color
Betragtningsvinkel 85°/85°/80°/80° (typ.) (Up/Down/Left/Right)
Chok/Vibration Anti-Vibration 0.7g@DNV2.4 (Class A) Anti Shock 15G, 11ms duration
Ethernet Dual Ethernet Gb LAN, 2 x RJ45
Hukommelse 1 x DDR3L-1066 SODIMM (Default 4GB,Max 16GB)
Kontrast 1000:1 (typ.)
Luftfugtighed 5% to 95% (non condensing)
Lyd Buzzer 75 dB~80 dB, 2300 Hz, 1m Speaker 2 x 2W Speaker
Pixels 0.294 (H) x 0.294 (V ) mm
Skærm 19"
Strømforbrug 80W
Strømforsyning 24V DC-in with Isolation (9~36V acceptable), DC Power Signal 1 x 3-Pin Terminal Block (Phoenix type)

Panel PC approved for maritime use. Other sizes and models can be offered. Contact the sales department for more information.
These are usually Build To Order. Contact the sales department regarding delivery time.
