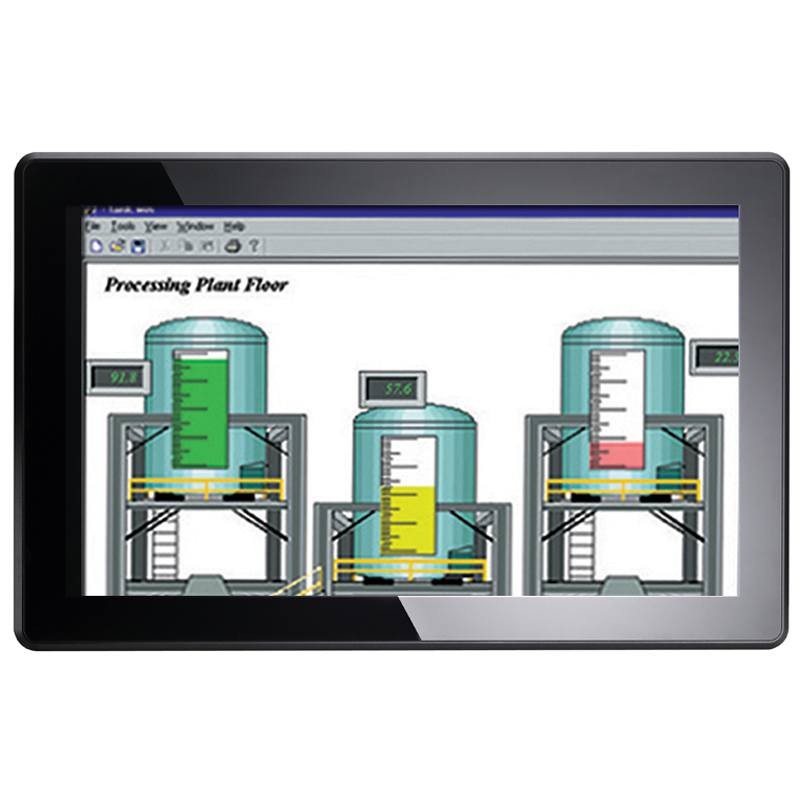

21.5" Panel PC IP65 close front, touch i3,i5 or i5 cpu 4x USB, 2xCOM

21.5" FHD projected capacitive multi-touch screen
6th/7th gen Intel® Core ™ i7 / i5 / i3, Pentium® Celeron® processor (Haswell)
2.5" 7/9.5 mm SATA HDD, CFast ™ and mSATA
2 Gigabit LAN,
2 USB 3.0
2 USB 2.0
2 COM ports
IP65 flat front bezel and rugged design
Supports panel mount and optional VESA arm / desktop stand / wall mount
2 PCI Express Mini card slots
Power supply 19Vdc / 112Watt, 4 Pole

IPP21.5IX
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

Vi har mange års erfaring i industrielle panel PCér. Vi tilbyder andre modeller og løsninger.

Kontakt vores salgsafdeling.

CPU
LGA 1150 4. Gen Celeron i3,i5,i7 support up to 45W
Chipset
Intel H81
BIOS
AMI UEFI BIOS
Certifications
CE
CF Card
1x CFast card slot
Dimensioner
547.6 x 89 x 339 mm
Driftstemperatur
0 to 40 degrees
Forsyning
19 VDC, 112Watt
Grafik
Intefrated Intel HD graphics
Hukommelse
1 x 204 DDR3 1333/1600 up to 8GB
OS SUPPORT
WE8S, WES 7 Windows 10 IOT, Windows 8.1 win 7 windows 10
PCI
2 x PCI express MINI card slot
Porte
2 x RS232/422/485 (COM1/2)
SSD
1 x 2.5" 7/9.5mm SATA HDD Space
Touch
Multi touch Capacitive
USB
2xUSB3.0, 2xUSB2.0
Weight
8.1Kg
Watchdog
255 levels, 0 to 255 sec.
WiFi/WLAN
OPTION! Contact sales
