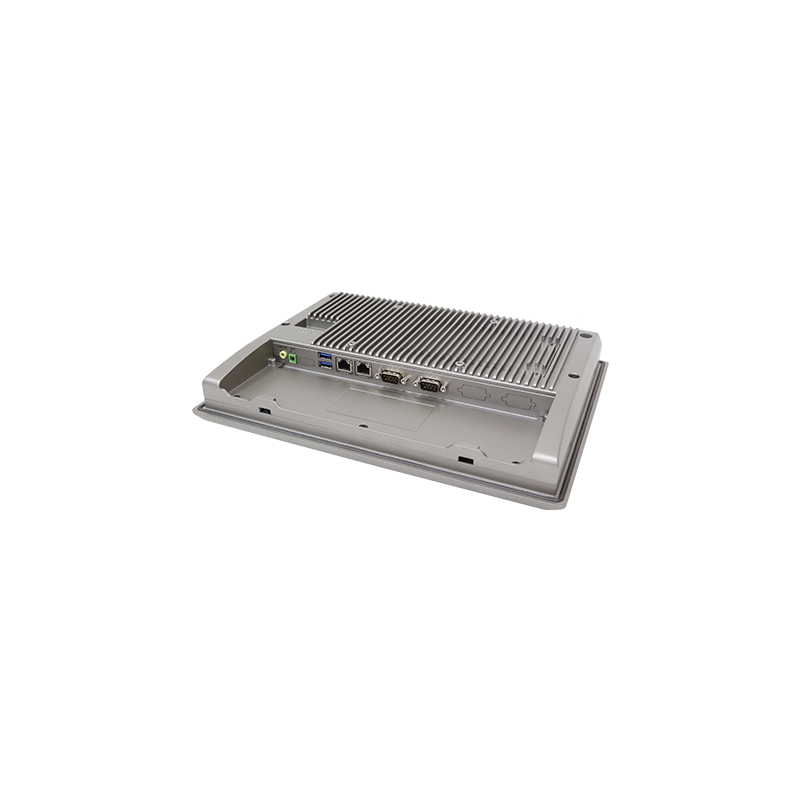

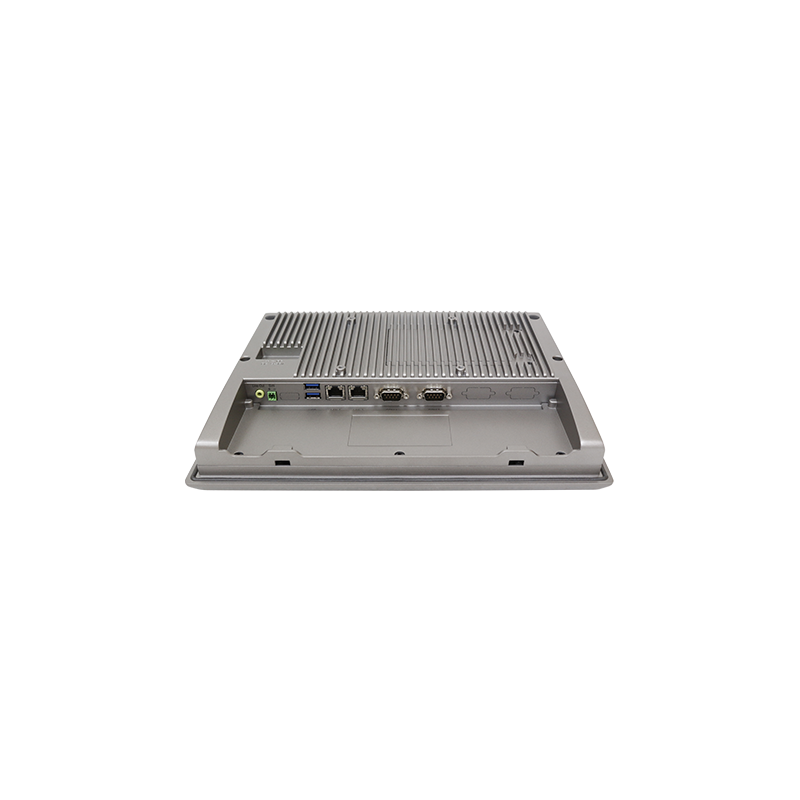

12.1 "Industrial Panel PC, I3 / I5 CPU, USB, RS232, Touch, 450/500/1000 NITS versions, 9 ~ 36VDC Supply Many options!

12.1 "TFT
CPU Gen.6 I3 Standard (I5 Option)
with or without touch resistive, Projected capacitive 7h Anti Scratch surface
1 x 260-pin SO-DIMM DDR4 2100MHz Max. 16GB
2 x USB 3.0
1x 2½ "SSD Sata Bay
1 x Mini Pcie Slot Full Size
1xDB9 RS232 / 422/485, COM1, 1X RS-232 DB9 COM 2
2 x RJ45 GBE LAN RJ45
IP66 Front
Vesa Mount 100x100

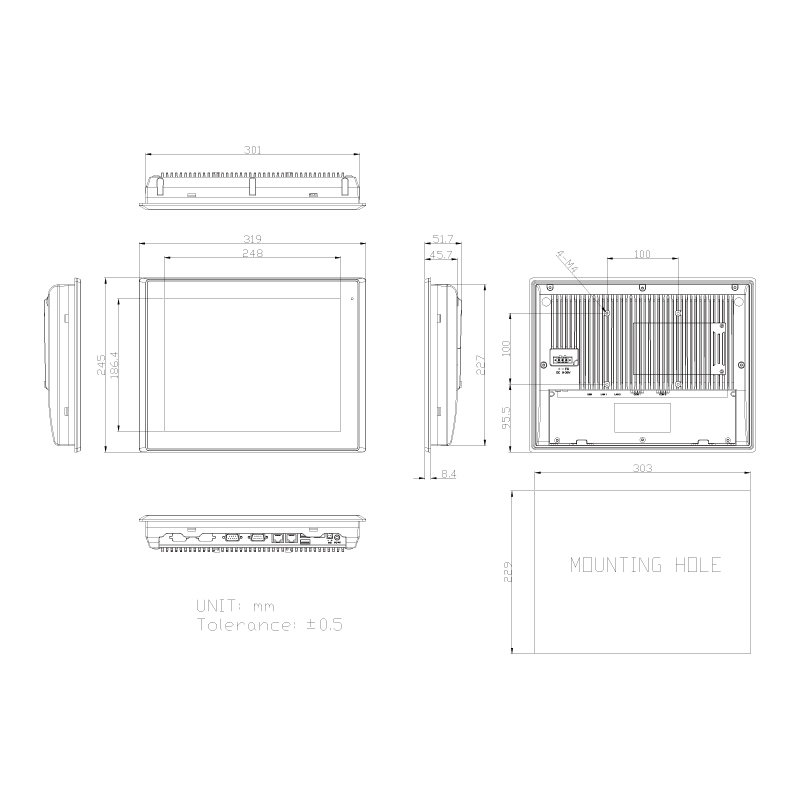

319x245x51.7mm
1 x 3 Pin DC 9 ~ 36vdc
Windows IoT Support

IPP12-IX-1000N
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

One of our industrial models that can be delivered in many versions. Robust industrial solution.
can be supplied with 1000 nits TFT there e rafted for sunlight use.
built in aluminum cabinet.
flat front There is IP66 close.
Contact us for price with options
VESA Stand 4G LTE / Wi-Fi / BT 4 x USB 2.0 Type A, 4 x USB 2.0 Type A + 1 x Mini Pcie + 1 SIM slot, 1 x COM + 2 x USB 2.0, 1 x COM (RS-232) + 2 x USB 2.0 + 1 X Power Button, 2 x COM (RS-232), 2 x COM (RS-232) + 1 x Mini PCIe Slot + 1 x SIM slot. 2 x COM (RS-232/485, isolated). 2 x can. 1 x LAN + 2 x USB 2.0. 1 x LAN + 2 x USB 2.0, 45W POE (POE) * UPS Battery 21W / 10.8W / 1.95AH System IS ONLYLOWED TO BUILD IN EITHER I / O BOARD TB-528 Series or UPS Battery

Back-up
UPS battery 21W/10.8W/1.95Ah OPTION!
Approval
CE / FCC, Class A / UL
Dimensioner
319x245x51.7mm
Driftstemperatur
0~50˚C / -20~60˚C (option)
Ethernet
2 X RJ45 GbE
Forsyning
DC 9~36Vdc MAX 47W
Kontrast
1500:1(800x600), 1000:1(1024x768) (1000 nits 700:1)
Lyd
line out
Compositions
Aluminium
Montering
Panel Mount, Vesa mount 100x100
Opløsning
MAX 800x600 /1024x768
OS SUPPORT
Windows IOT
Porte
1 x DB-9 RS-232/422/485, COM1 (Default RS-232) 1 x RS-232 DB-9, COM2
Skærm
12.1" 800x600/1024x768 Depens on selcted display
SSD
2½" BAY SATA
Touch
Needs to be ordered! Resistive, Projected capacitive or glass
USB
2 x USB 3.0 type A
Weight
2.6Kg
Nits
450/500/1000 nits option needs to be specified when ordering
