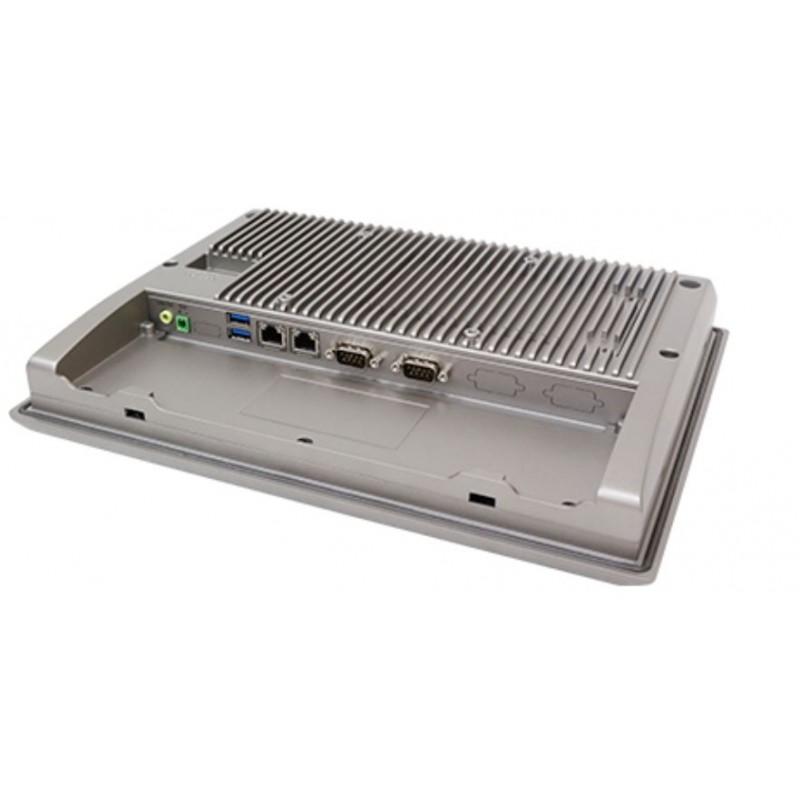

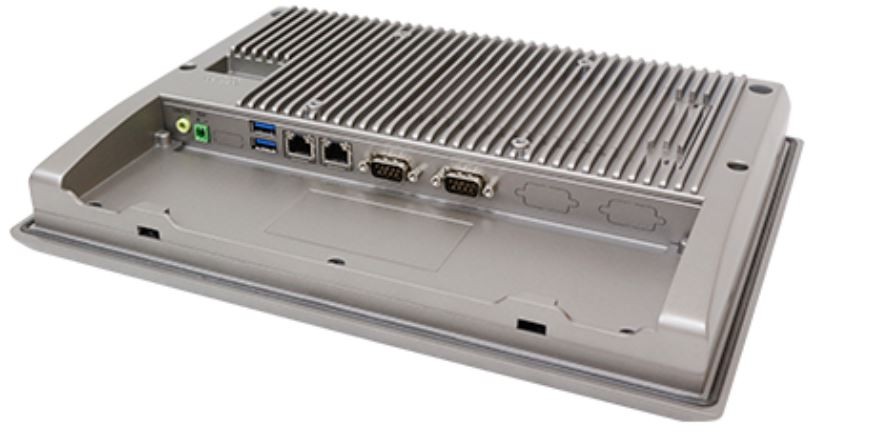

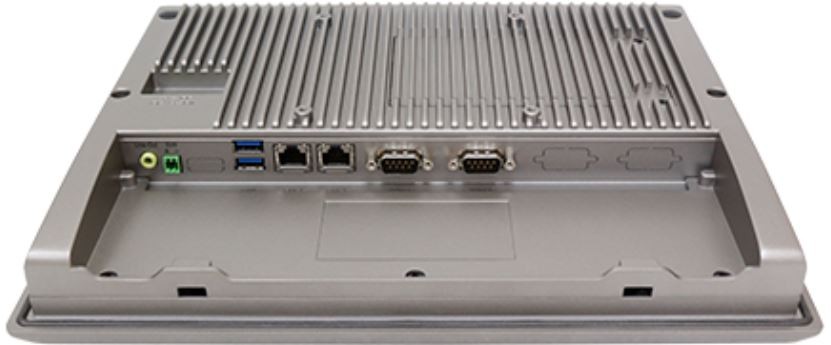

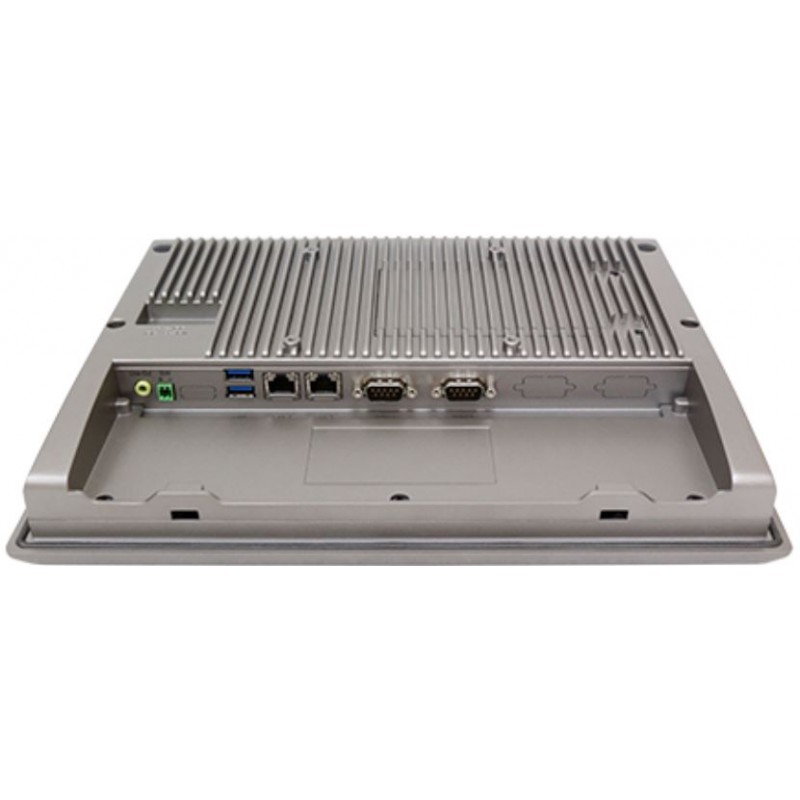

Fanless 12.1" Panel PC with flat front, Celeron 1.83GHz, RS232 / 422/485, 4GLTE, Touch, USB

12.1 "Industrial Panel PC
Intel Celeron N2930 (1.83GHz), 4core, 4 Threds, CPU built
Onboard 4GB DDR3L 1333MHz max. 8GB (optional)

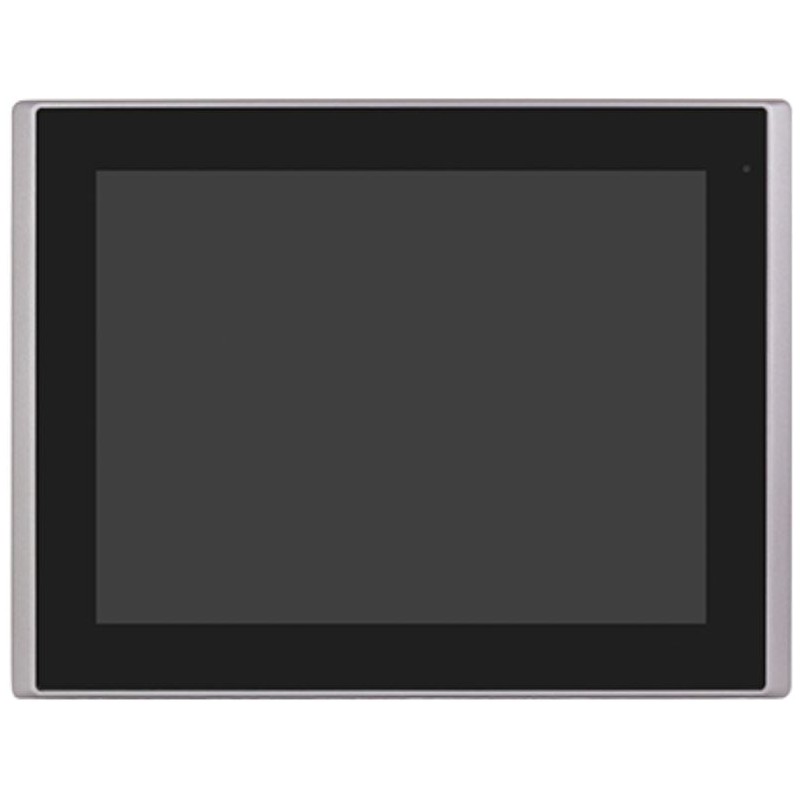

Flat front panel
P-CAP Touch
Fanless Design
DC 9 ~ 36V wide-ranging Power Input
IP66 front
3x USB
1x DB9 (RS232 / 422/485), 1 x DB9 RS232.
Option: high brightness 1000 nits
Option: 4G LTE / Wi-Fi / BT expansion
Option: UPS built-
Option: Isolated RS232 / 485.

$1,953.12
Excl. VAT
Quantity
Physically in stock
LÆG I KURV
Product number IPP12
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Onboard Intel Celeron N2930 1.83Ghz
Andet 1000 nits LCD is OPTION!
bluetooth OPTION! contact sales

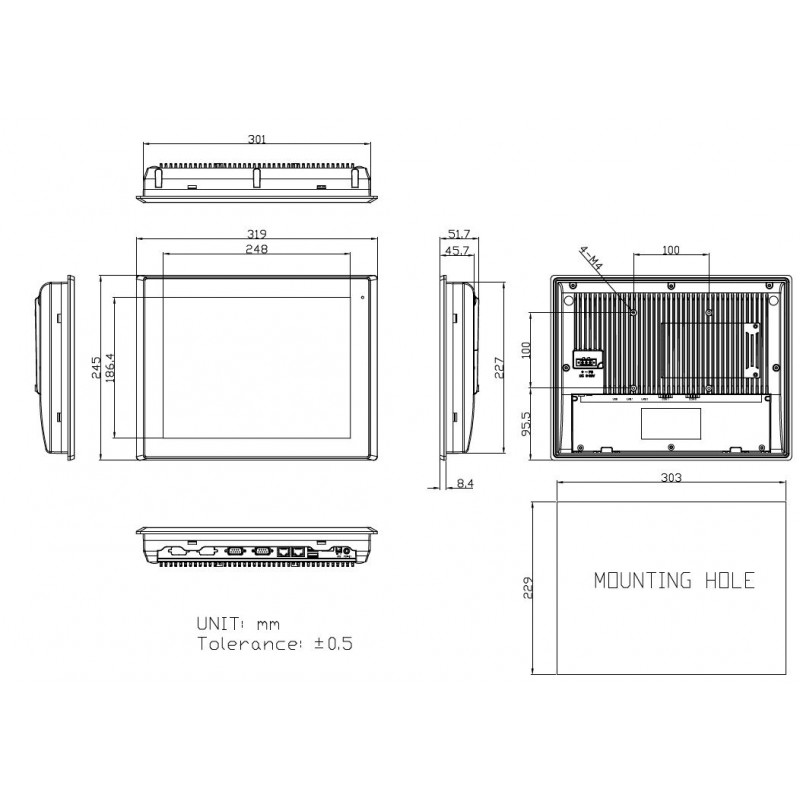

Dimensioner 319x24x51.7 mm WxHxD
Driftstemperatur 0~50C
Ethernet 2 x GbE LAN RJ-45
Forsyning DC9~36V 1x3 pin DC terminal, 1x2PIN power on/off
Hukommelse Onboard 4GB, Optional 8GB DDR3L 1333MHz
IP-Tæthed Ip66 Complient Front Bezel
Kontrast 1000:1
LCD 12.1" 800x600, Max. color 16.2M , 330cd/m2
Lyd 1 x Audio Line Out
mPCIe 1x full size Mini-PCIe slot
Porte 1xDb9 RS-232/422/485 COM1, 1xRS232 DB9 OCM2
SIM kort SIM card holder/Micro SD card Reader
Storage 2½" Sata Bay for SATA HDD/SSD
Strømforbrug Max. 15W
Synsfelt 178(H)/178(V)
USB 2xUSB 3.0 Type A, (optional 4xUSB contact sales)
Weight 2.8Kg
WiFi/WLAN OPTION! Contact sales

Elegant industreilet designed panel computer flat rimless front to prevent the accumulation of dirt.
to clean IP66 front.
Made of aluminum.
We offer a wide range of Panel PC, wide range of sizes and models. Contact Sales regarding. opportunities.
