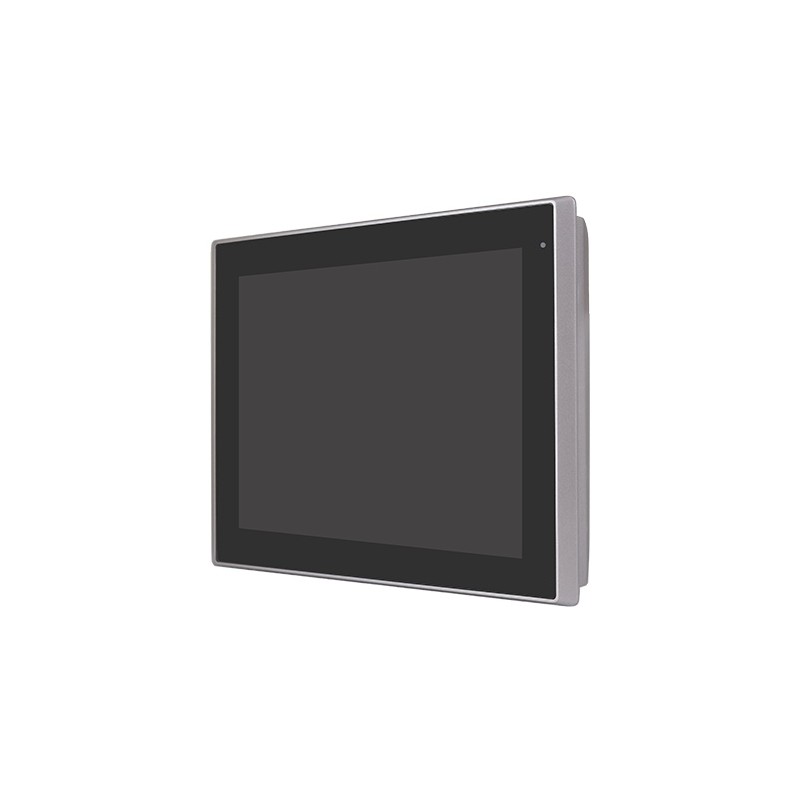

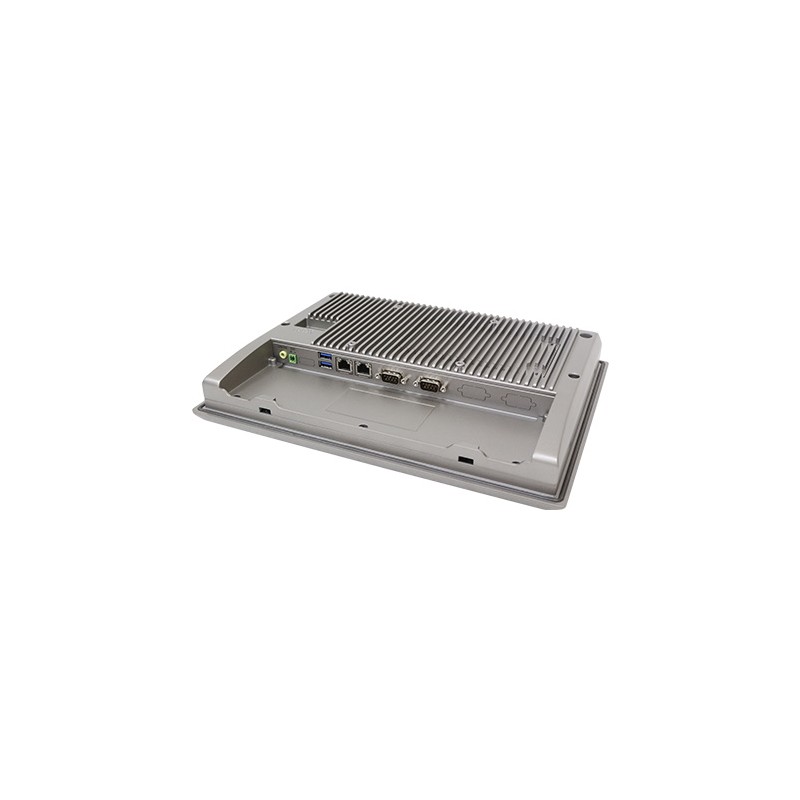

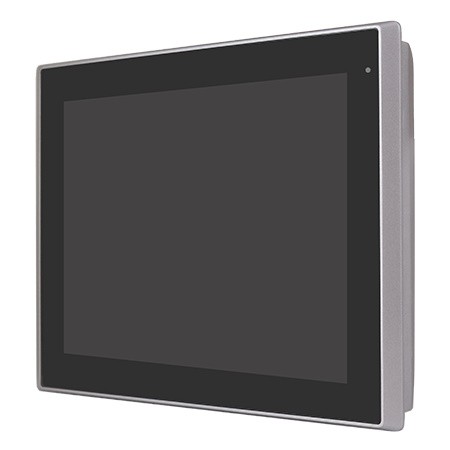

Fanless 12.1" Panel PC with flat front, Apollo Lake 1.1GHz Touch Screen

12.1” Industrial Panel PC
Intel Apollo Lake N4200 (1.11 GHz) 4 Core, 4 Threads, CPU built-in
Onboard 4GB DDR3L 1603MHz max. 8GB (optional)
Flat front panel
P-CAP Touch
​Fanless Design
IP66 front
2x GbE LAN RJ-45
2x USB 3.0, 4x USB 2.0 (optional)
1x DB9 (RS232/422/485), 1x DB9 RS232
OS support: Windows embedded 7, Win7, Windows 10 IoT
Opt. 4G LTE/WI-FI/BT extension
Opt.: UPS built-in
Opt.: Isolated RS232/485.
DC 9 ~ 36V  Power Supply

Call +45 56 66 20 20 for price
Quantity
Physically in stock
ADD TO CART
Product number IPP12+
Get Volume Offer
close

Get Volume Offer


file_download DOWNLOADS
Ask a question
close

Stil et spørgsmål





Download PDF

Specifications

CPU Onboard Intel Apollo Lake N4200 (4 Core, 1.1 GHz)
Storage 1x 2.5" SATA HDD bay for SATA3 HDD
USB 4x USB 2.0 type A(TB-528U4)
Operating Temp. 0-50C
Ethernet 2x GbE LAN RJ-45
Forsyning DC-9~36V
Hukommelse Onboard 4GB, Optional 8GB DDR3L 1600MHz
IP-Tæthed Ip66 Complient Front Bezel
Kontrast 1500:1
LCD 12.1" 800x600, Max. color 16.2M , 450cd/m2
Lyd 1x Audio line out
Porte 1x DB-9 RS-232/422/485 COM1, RS-232, DB-9, COM2
SIM kort SIM card holder
Strømforbrug Max. 29W
Synsfelt 178(H)/178(V)
WiFi/WLAN OPTION! Contact sales
Weight 2.8Kg

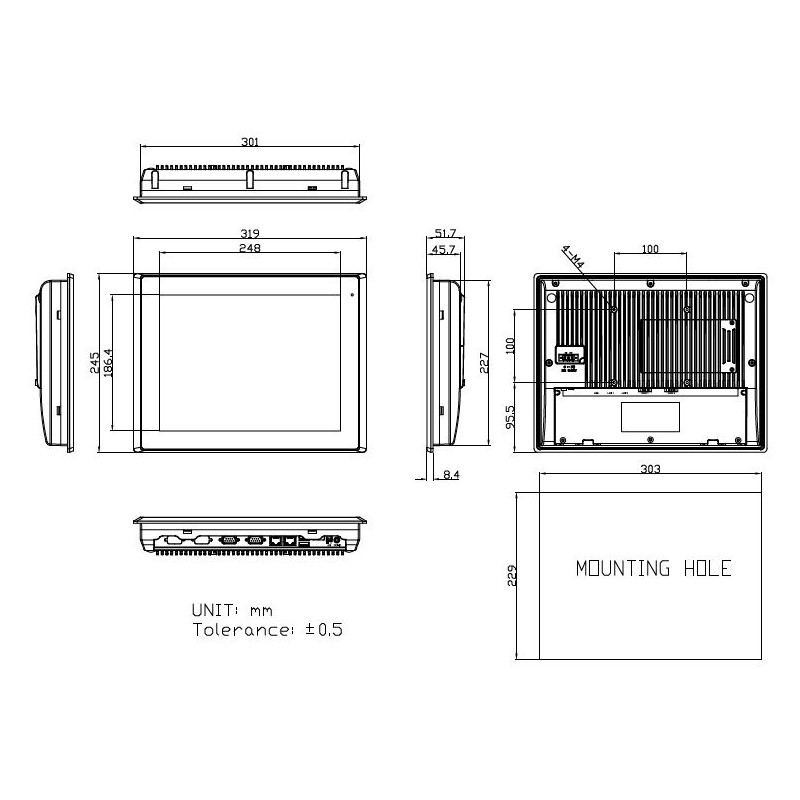

Dimensioner 319 x 245 x 51.7 mm

Elegant industrially designed panel PC flat borderless front that prevents the accumulation of dirt.
Easy-to-clean IP66 front.
Made of aluminium.
We offer a wide selection of panel PC, wide selection of sizes and models. Contact Sales regarding opportunities.

Other products in same category:

19\" panel PC med Core i5 CPUforPanel PC
19" panel PC med Core i5 CPU

Komplet bestykket panel PC
18.5" LED TFT
Uden OS
OS support WIN7, WIN 10 iot 64Bit
2.4GHz Core i5 CPU.
120GB SSD

Call +45 56 66 20 20 for price
Item Number: IPP19I5
On the way in
ADD TO CART
Quick view
Industrial TFT Screen Vesa, Panel Mount, Rack Montage 24 "TFT 16: 9, Capacitive Touch, USB, RS232, VGA, DVI, DP
24" TFT Full HD 16:9 Capacitive Touch Monitor with 1x USB, 1x COM, 1x VGA, 1x DVI-D and 1x DisplayPort, 9V~48V

24" TFT Full HD 16:9 LCD with Projected Capacitive Touch
Max. Resolution1920x1080
​Designed with Aluminum Die-Cast Front Frame
IP65 Compliant Front Panel
1x USB, 1x COM, 1x VGA, 1x DVI-D, 1x DisplayPort, 1x Audio
Built-in Two 5W Internal Speakers
Convertible Display System (CDS) Supported
Supports Panel / VESA / Rack Mounting
OPTION! (Resistive 5-wire Touch / Glass)
9~48VDC via 3-pin Terminal Block

Call +45 56 66 20 20 for price
Item Number: MON24-CDS
On the way in
ADD TO CART
Quick view
Panel PC 21.5" wide screen med multi touch I3, I5, i7 mulighed
21.5" Panel PC IP65 close front, touch i3,i5 or i5 cpu 4x USB, 2xCOM

21.5" FHD projected capacitive multi-touch screen
6th/7th gen Intel® Core ™ i7 / i5 / i3, Pentium® Celeron® processor (Haswell)
2.5" 7/9.5 mm SATA HDD, CFast ™ and mSATA
2 Gigabit LAN,
2 USB 3.0
2 USB 2.0
2 COM ports
IP65 flat front bezel and rugged design
Supports panel mount and optional VESA arm / desktop stand / wall mount
2 PCI Express Mini card slots
Power supply 19Vdc / 112Watt, 4 Pole

Call +45 56 66 20 20 for price
Item Number: IPP21.5IX
On the way in
ADD TO CART
Quick view
17" panel PC screen with projected touch for use in sunlight 1000nits
17 "Panel PC 6.gen, projected capacitive touch, 1000Nits to sunlight, 9 ~ 36VDC supply IP66 FRONT, the front Smooth

17" TFT-LCD Projected Capacitive Touch.
Intel 6th Gen. Core i3 built-in i3-6100U / i5 (option).
1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz.
Flat front panel meets IP66
die-cast aluminum Chassis Fanless design
DC 9 ~ 36V wide range Power Input
Udskæringsmål : 422x331mm
Mål: 439x348x64.8mm (WxHxD)

OPTION: CAN Bus, UPS battery, 4 xUSB
OPTION: OPTICAL bonding for direct sunlight

Call +45 56 66 20 20 for price
Item Number: IPP17-IX-1000NITS
On the way in
ADD TO CART
Quick view
IP65 close 12 "Panel PC fanless with Projected Capacitive Toudh VESA mount
Fanless 12.1" Panel PC with flat front, Celeron 1.83GHz, RS232 / 422/485, 4GLTE, Touch, USB

12.1 "Industrial Panel PC
Intel Celeron N2930 (1.83GHz), 4core, 4 Threds, CPU built
Onboard 4GB DDR3L 1333MHz max. 8GB (optional)
Flat front panel
P-CAP Touch
Fanless Design
DC 9 ~ 36V wide-ranging Power Input
IP66 front
3x USB
1x DB9 (RS232 / 422/485), 1 x DB9 RS232.
Option: high brightness 1000 nits
Option: 4G LTE / Wi-Fi / BT expansion
Option: UPS built-
Option: Isolated RS232 / 485.

13,341.00 kr
Item Number: IPP12
Physically in stock
ADD TO CART
Quick view
Panel PC 12.1 "I3 / I5 Touch, Sunlight 1000 Nits, RS232, USB, CAN Bus, Built-in UPS, Poe
12.1 "Industrial Panel PC, I3 / I5 CPU, USB, RS232, Touch, 450/500/1000 NITS versions, 9 ~ 36VDC Supply Many options!

12.1 "TFT
CPU Gen.6 I3 Standard (I5 Option)
with or without touch resistive, Projected capacitive 7h Anti Scratch surface
1 x 260-pin SO-DIMM DDR4 2100MHz Max. 16GB
2 x USB 3.0
1x 2½ "SSD Sata Bay
1 x Mini Pcie Slot Full Size
1xDB9 RS232 / 422/485, COM1, 1X RS-232 DB9 COM 2
2 x RJ45 GBE LAN RJ45
IP66 Front
Vesa Mount 100x100
319x245x51.7mm
1 x 3 Pin DC 9 ~ 36vdc
Windows IoT Support

Call +45 56 66 20 20 for price
Item Number: IPP12-IX-1000N
On the way in
ADD TO CART
Quick view
17" 5:4 Industrial Panel PC with Capacitive Touch
17 "Panel PC with PCAP Touch, Intel Pentium N4200 quad Core up to 2.5GHz CPU Panel Montage IP65 Front, 9~48VDC

17" TFT SXGA 5:4 LCD capacitive touch
Pentium N4200
1x DDR3L SO-DIMM MAX. 8GB RAM (supplied without, get price with ram)
Resolution Up to 1280 x 1024 (SXGA)
350 nits Brightness
Designed with Aluminum
IP65 Compatible front panel
1xVGA, 1xDP (triple display)
1x 2.5" SATA Drive (supplied without, get price with SSD installed)
1x MSATA
2x LAN RJ45 Intel I210 (POE OPTION ADD ON)
4x USB 3.0
4x RS232/422/485
8x Isolated DIO
2x Mini-PCI
SIM Socket
SUPPORT OS: WINDOWS 10/11
9~48VDC via 3-pin Terminal Block

Call +45 56 66 20 20 for price
Item Number: IPP17N4200
On the way in
ADD TO CART
Quick view

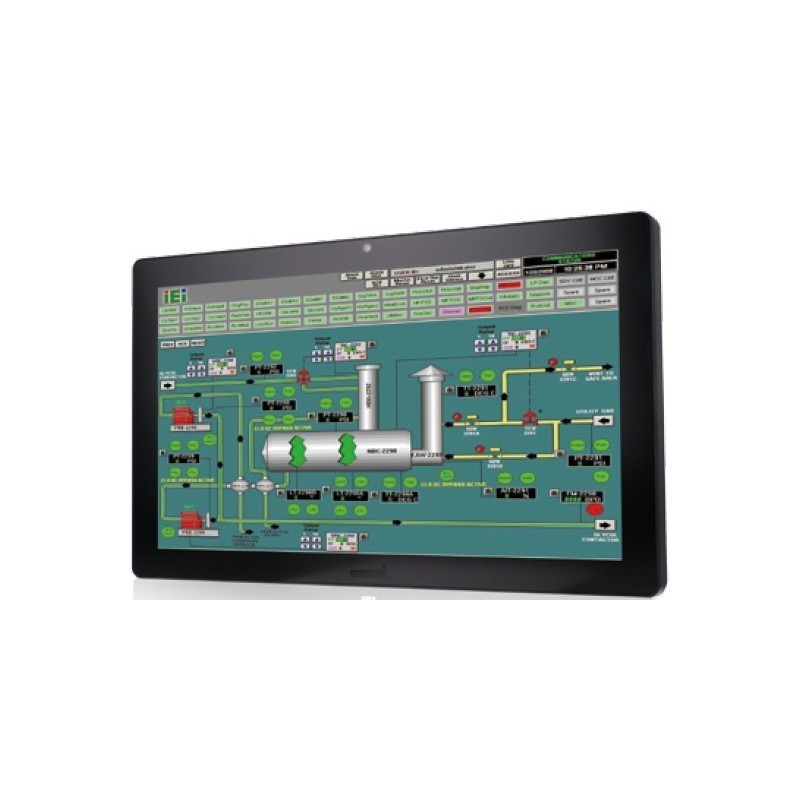

21.5\" Wide panel PC med 2.4GHz Core i5 CPU, 120GB SSD, 4GB RAMforV...
