19" panel PC med Core i5 CPU

Komplet bestykket panel PC
18.5" LED TFT
Uden OS
OS support WIN7, WIN 10 iot 64Bit
2.4GHz Core i5 CPU.
120GB SSD

IPP19I5
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

19” panel PC med Core i5 CPU.

Velegnet til maskinstyringer, digital reklame eller som operatørpanel.

Til VESA montering.

Kan også leveres med Core i3 eller i7 CPU - Kontakt vores salgsafdeling for priser og mere information.

CPU
2.4 GHz 6th Gen . Mobile Core i5-6300U (15W), ULT
Farve
Black C
Andet
2 Megapixel with low light function, Digital microphone
Approval
CE and FCC
Betragtningsvinkel
170/160
bluetooth
V4.0 (M.2slot)

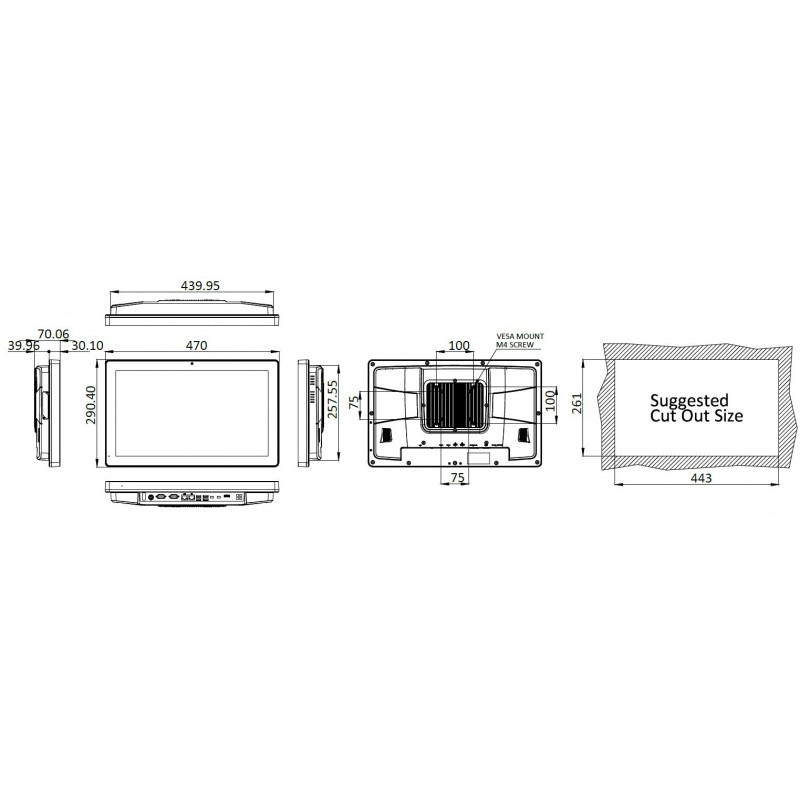

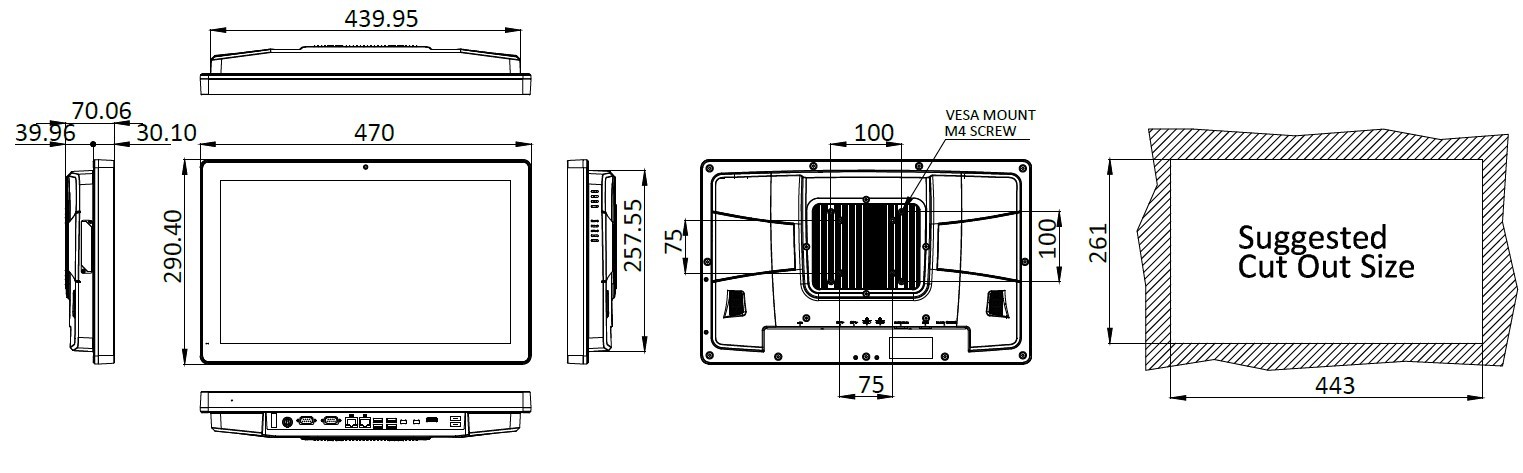

Dimensioner
470 x 290 x 70 (W x H x D) (mm)
Driftstemperatur
-20C ~ 50C
Ethernet
2x RJ45 Gbit Intel I211-AT
Forsyning
9V ~ 30VDC
Grafik
1 x HDMI out
Hukommelse
2 x 260-PIN DDR4 SO-DIMM (max. 32GB) 4GB mounted
I/O
Ppower on, Reset, AT/ATX switch
IP-Tæthed
IP64 front
Luftfugtighed
10% to 95% non condensing
Lyd
AMP 3W + 3W internal speaker
Montering
panel, Wall, Rack, stand and Arm Vesa 75mm x 75mm /100mm x 100mm
MTBF
30,000 (LED backlight panel)
Netværk
2 x Gigabit m/RJ45 stik. WLAN 802.11b/g/n. Derudover Bluetooth 2.1
OS SUPPORT
WIN 7, WIN 10 IOT enterprise 64 Bit
Pixels
0.240 (H) x 0.240 (V)

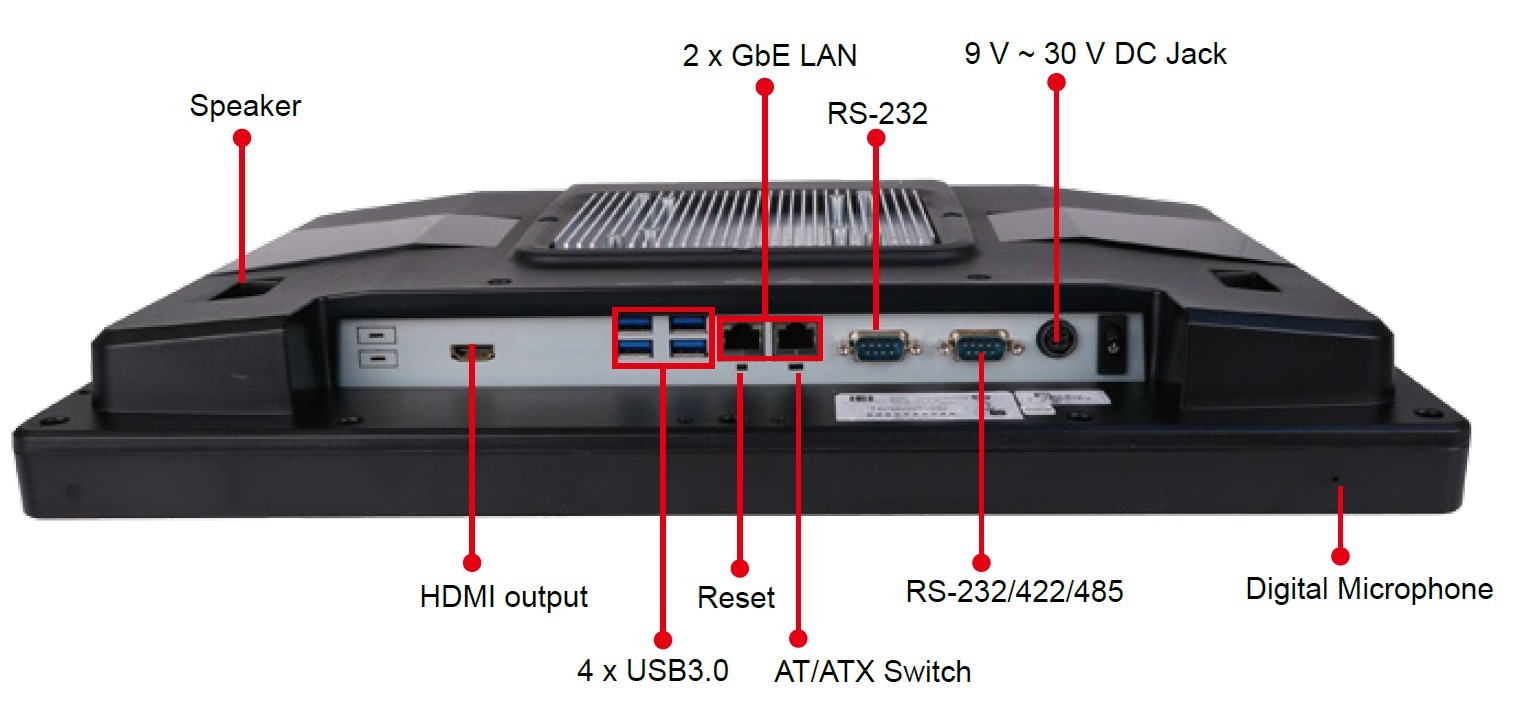

Porte
1 x RS232 DB9 (RI/5V/12V), 1 x RS232/422/485 DB9 (RI/5V/12V)
Skærm
18.5" LED TFT, 250cd/m2, 1366x768 (16:9)
Storage
1 x 2.5" Sata 3Gb/s HDD bay, 1 x M.2 PCIe storage, 1 x mSATA slot
Udskæringsmål
443 x 261
Weight
6.2 kg
WiFi/WLAN
IEEE 802.11a/b/g/n/ac
