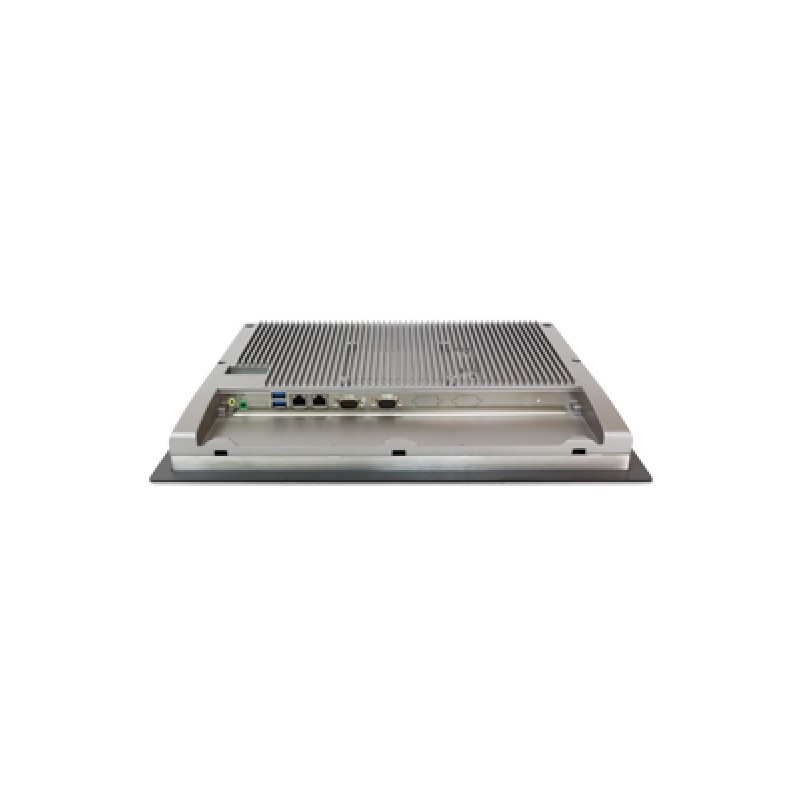

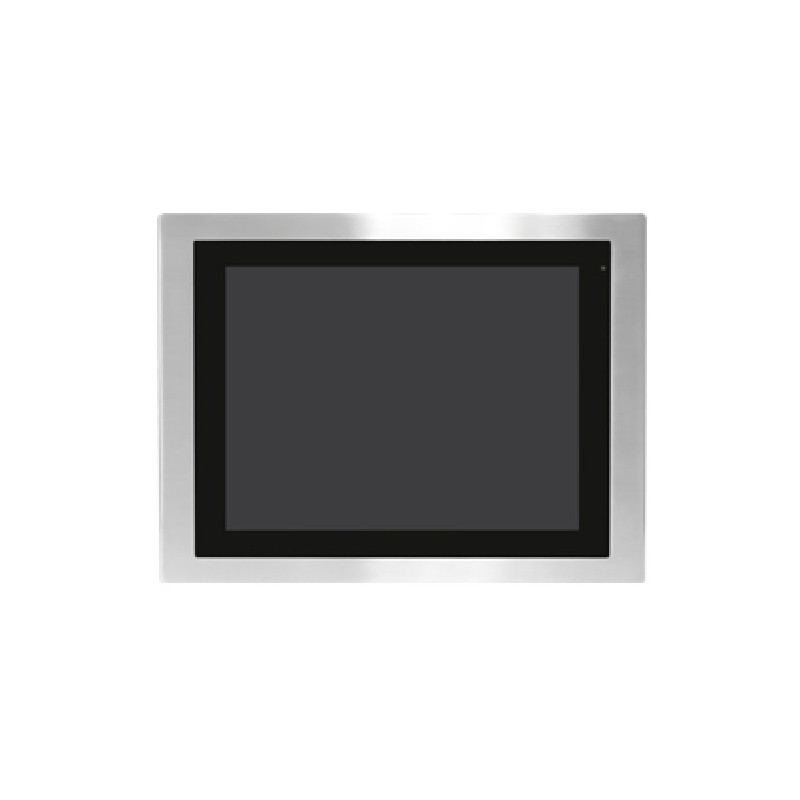

17 "Panel PC 6.gen, projected capacitive touch, 1000Nits to sunlight, 9 ~ 36VDC supply IP66 FRONT, the front Smooth

17" TFT-LCD Projected Capacitive Touch.
Intel 6th Gen. Core i3 built-in i3-6100U / i5 (option).
1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz.
Flat front panel meets IP66
die-cast aluminum Chassis Fanless design
DC 9 ~ 36V wide range Power Input

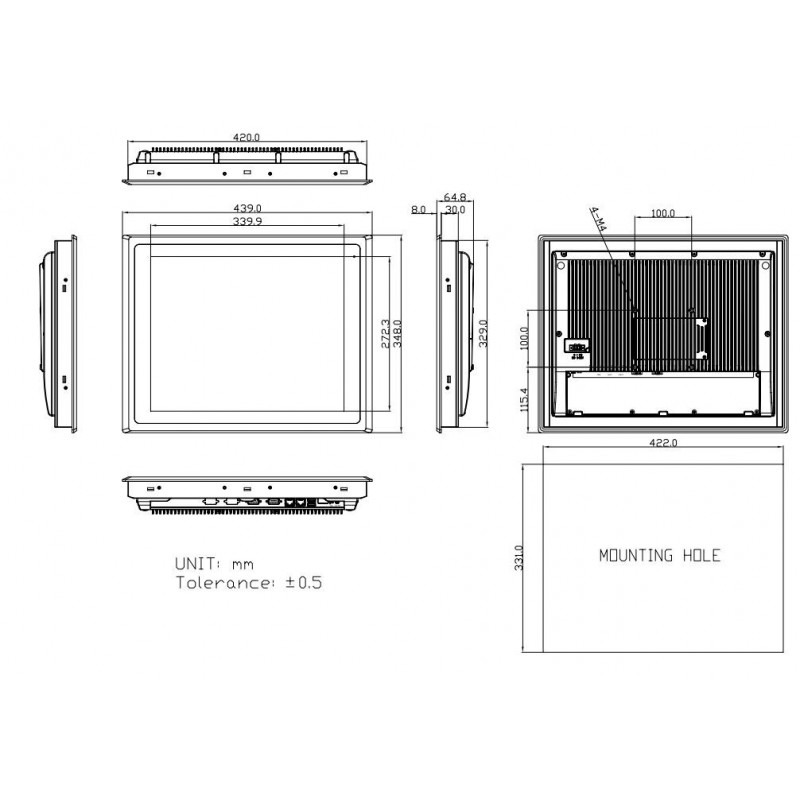

Udskæringsmål : 422x331mm
Mål: 439x348x64.8mm (WxHxD)

OPTION: CAN Bus, UPS battery, 4 xUSB
OPTION: OPTICAL bonding for direct sunlight

IPP17-IX-1000NITS
Call +45 56 66 20 20 for price
Quantity
On the way in

  • Download PDF
  • file_download Downloads
  • live_help Ask a question

17" Panel PC uden kan mellem touch og ramme, glidende overgang forhindre snavs blivver liggende.
Kan levere klar til brug med SSD, OS installeret.
Andre størrelser og bestykninger haves kontakt vores salgsafdeling.

CPU
Onboard Intel 6th Core i3/ i5(option) Processors
Approval
CE / FCC, Class A
Dimensioner
(mm)439 x 348 x 64.8
Driftstemperatur
Operating temperature(°C)0~50˚C
Ethernet
2 x GbE LAN RJ-45
Forsyning
inputDC 9~36V 1x3-pin DC Power input terminal / 1 x 2-Pin Power Switch
Hukommelse
1 x 260Pin SO-DIMM DDR4 up to 16GB 2133MHz
Luftfugtighed
humidity10 to 90%@ 40˚C, non-condensing
Lyd
1 x Audio Line Out
Compositions
Aluminum front bezel/ Aluminum die-casting for back cover IP ratingFront Panel IP66
Montering
Panel Mounting / VESA 100 x 100
mPCIe
On board expansion bus1 x Internal Mini-PCIe slot full size
OS SUPPORT
Windows 7 64 bit / Windows 8 64 bit / Windows 10 IoT 64 bit
Porte
1 x DB-9 RS-232/422/485, COM1 (Default RS-232)1 x RS-232 DB-9, COM2
Skærm
Size17" TFT-LCD Max. resolution1280 x 1024 Max. color16.7M Luminance(cd/m²)350 Viewangle(H°/V°)170/170 Backlight lifetime(hrs)50,000
Storage
HDD/SSD1 x 2.5" SATA HDD bay for SATA3 HDD (Easy Accessible)
Touch
Projected Capacitive Touch InterfaceUSB Light transmission(%)Over 90% OPTION: RESISTIV TOUCH
USB
2 x USB 3.0 type A
Weight
6.25Kg
